Gfci Protected Outlets

Electrical safety is a paramount concern in any home or workplace. One of the most effective ways to ensure safety is by installing GFCI protected outlets. Ground Fault Circuit Interrupters (GFCIs) are designed to protect people from electrical shocks by quickly shutting off power when a ground fault is detected. This blog post will delve into the importance of GFCI protected outlets, how they work, where they should be installed, and how to maintain them for optimal performance.

Table of Contents

Understanding GFCI Protected Outlets

GFCI protected outlets are specialized electrical outlets equipped with a built-in GFCI device. These outlets monitor the electrical current flowing through the circuit and can detect even the smallest imbalances, which may indicate a ground fault. When a ground fault is detected, the GFCI trips the circuit, cutting off the power supply and preventing potential electrical hazards.

How GFCI Protected Outlets Work

GFCI protected outlets operate on a simple yet effective principle. They continuously compare the current flowing through the hot and neutral wires. Under normal conditions, the current flowing through both wires should be equal. However, if there is a ground fault, such as when a person comes into contact with a live wire, the current will be diverted to the ground, creating an imbalance.

The GFCI detects this imbalance and trips the circuit within milliseconds, effectively shutting off the power. This rapid response time is crucial for preventing electrical shocks and potential fires. The GFCI can be reset by pressing the reset button on the outlet, allowing the circuit to be restored once the fault has been corrected.

Where to Install GFCI Protected Outlets

GFCI protected outlets are required by the National Electrical Code (NEC) in specific locations to ensure safety. These locations include:

Bathrooms: Due to the presence of water and electrical appliances, bathrooms are high-risk areas for electrical shocks.

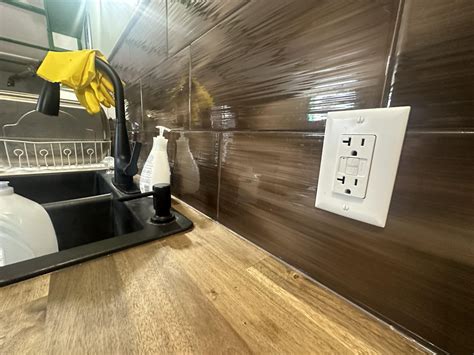

Kitchens: Near sinks and countertops where water and electrical appliances are commonly used.
Garages: Where power tools and other electrical equipment are frequently used.
Outdoor Areas: Such as patios, decks, and porches, where electrical outlets are exposed to the elements.
Basements and Crawl Spaces: Where water and moisture can accumulate.
Laundry Rooms: Near washing machines and dryers, which are often used with water.

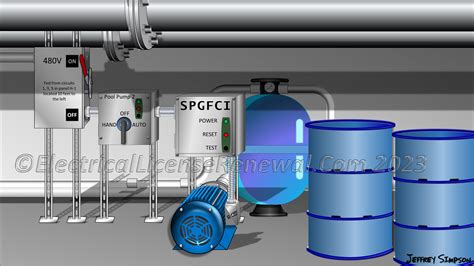

In addition to these specific locations, it is also recommended to install GFCI protected outlets in any area where electrical equipment is used near water or in damp conditions. This includes areas like pools, spas, and hot tubs.

Types of GFCI Protected Outlets

There are two main types of GFCI protected outlets: receptacle-type and circuit breaker-type.

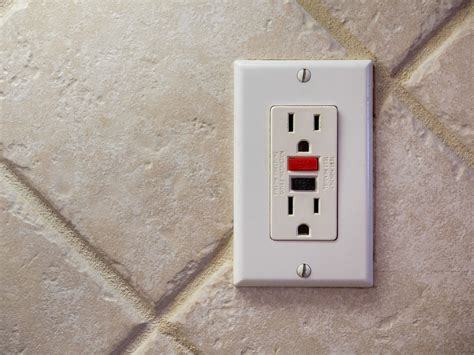

Receptacle-Type GFCI Outlets: These are the most common and are installed directly into the electrical box. They provide protection for the specific outlet and any downstream outlets connected to it.

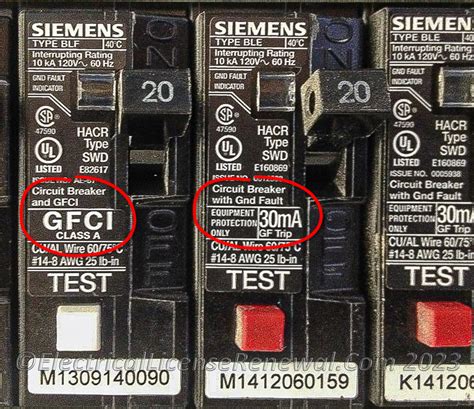

Circuit Breaker-Type GFCI: These are installed in the electrical panel and provide protection for the entire circuit. They are ideal for protecting multiple outlets and appliances on the same circuit.

Both types of GFCI protected outlets offer effective protection, but the choice between them depends on the specific needs and layout of the electrical system.

Installing GFCI Protected Outlets

Installing GFCI protected outlets is a task that should be performed by a licensed electrician to ensure safety and compliance with electrical codes. However, if you are comfortable with basic electrical work, you can install a receptacle-type GFCI outlet yourself. Here are the general steps involved:

Turn off the power to the circuit at the electrical panel.
Remove the existing outlet from the electrical box.
Connect the wires to the GFCI outlet, following the manufacturer's instructions. Typically, the black wire (hot) connects to the brass screw, the white wire (neutral) connects to the silver screw, and the green wire (ground) connects to the green screw.
Secure the GFCI outlet in the electrical box and attach the faceplate.
Restore power to the circuit and test the GFCI outlet by pressing the test button. The reset button should pop out, indicating that the GFCI is functioning correctly.

🛠️ Note: Always ensure that the power is turned off before working on electrical outlets. Use a non-contact voltage tester to verify that the circuit is dead.

Maintaining GFCI Protected Outlets

Regular maintenance of GFCI protected outlets is essential to ensure they continue to function correctly. Here are some tips for maintaining your GFCI outlets:

Test Regularly: Test your GFCI outlets monthly by pressing the test button. The reset button should pop out, indicating that the GFCI is working. Press the reset button to restore power.
Inspect for Damage: Check the outlets for any signs of damage, such as cracks, burns, or loose connections. Replace any damaged outlets immediately.
Keep Dry: Ensure that GFCI outlets are not exposed to excessive moisture or water. If an outlet is located in a damp area, consider installing a weatherproof cover.
Avoid Overloading: Do not overload GFCI outlets with too many appliances or devices. Overloading can cause the outlet to trip frequently and may indicate a need for additional circuits.

By following these maintenance tips, you can ensure that your GFCI protected outlets continue to provide reliable protection against electrical hazards.

Common Issues with GFCI Protected Outlets

While GFCI protected outlets are designed to be reliable, they can sometimes experience issues. Here are some common problems and their solutions:

Frequent Tripping: If a GFCI outlet trips frequently, it may be due to a ground fault or a faulty appliance. Check all connected appliances and ensure they are in good working condition. If the problem persists, consult a licensed electrician.
Failed Test: If the GFCI outlet fails the test, it may be defective. Replace the outlet with a new one and ensure it is properly installed.
No Power: If the GFCI outlet does not provide power, check the circuit breaker to ensure it is not tripped. If the breaker is fine, the outlet may be defective and need replacement.

If you encounter any issues with your GFCI protected outlets, it is always best to consult a licensed electrician to ensure safety and proper functioning.

Benefits of GFCI Protected Outlets

Installing GFCI protected outlets offers numerous benefits, including:

Enhanced Safety: GFCI outlets significantly reduce the risk of electrical shocks and fires, making them an essential safety feature in any home or workplace.
Compliance with Codes: Installing GFCI outlets in required locations ensures compliance with the National Electrical Code (NEC) and local building codes.
Peace of Mind: Knowing that your electrical outlets are protected against ground faults provides peace of mind and ensures the safety of your family and property.
Easy Installation: Receptacle-type GFCI outlets are relatively easy to install and can be done by a DIY enthusiast with basic electrical knowledge.

By installing GFCI protected outlets, you can enhance the safety of your electrical system and protect against potential hazards.

GFCI Protected Outlets vs. AFCI Protected Outlets

While GFCI protected outlets are designed to protect against ground faults, Arc Fault Circuit Interrupters (AFCIs) are designed to protect against arc faults. Arc faults occur when electrical current flows through an unintended path, such as damaged wiring or loose connections. AFCIs detect these arc faults and trip the circuit to prevent potential fires.

Both GFCI and AFCI protected outlets are essential for electrical safety, and many modern homes are equipped with both types of protection. GFCI outlets are typically installed in areas where water and electrical appliances are used, while AFCI outlets are installed in bedrooms, living rooms, and other areas where arc faults are more likely to occur.

In some cases, combination GFCI/AFCI outlets are available, providing both types of protection in a single device. These outlets are ideal for areas where both ground faults and arc faults are potential hazards.

Conclusion

GFCI protected outlets are a crucial component of any electrical system, providing essential protection against ground faults and electrical shocks. By understanding how GFCI outlets work, where to install them, and how to maintain them, you can ensure the safety of your home or workplace. Regular testing and maintenance of GFCI outlets are essential to ensure they continue to function correctly and provide reliable protection. Whether you are installing new outlets or upgrading existing ones, GFCI protected outlets are a worthwhile investment in electrical safety.
