Gfci Outlet Install

Electrical safety is paramount in any home or workplace. One of the most effective ways to ensure safety is by installing Ground Fault Circuit Interrupter (GFCI) outlets. GFCI outlets are designed to protect against electrical shocks by monitoring the flow of electricity and shutting off the power if an imbalance is detected. This guide will walk you through the process of a Gfci Outlet Install, from understanding the basics to completing the installation safely.

Table of Contents

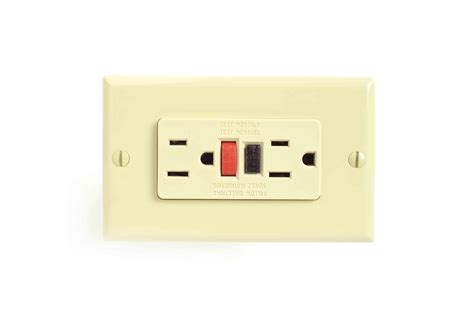

Understanding GFCI Outlets

Before diving into the installation process, it's crucial to understand what GFCI outlets are and why they are important. GFCI outlets are specialized electrical outlets that can detect ground faults, which occur when electrical current flows through an unintended path, such as through a person's body. This can happen if a tool or appliance is damaged or if there is a problem with the wiring.

GFCI outlets are required by the National Electrical Code (NEC) in areas where water is present, such as bathrooms, kitchens, garages, and outdoor spaces. They provide an extra layer of protection against electrical shocks, making them an essential component of any electrical system.

Tools and Materials Needed for Gfci Outlet Install

To successfully complete a Gfci Outlet Install, you will need the following tools and materials:

GFCI outlet
Screwdriver (flathead and Phillips)
Wire stripper
Wire cutter
Non-contact voltage tester
Electrical tape
Wire nuts

Ensure that you have all the necessary tools and materials before beginning the installation process. Safety should always be your top priority, so make sure to turn off the power to the circuit you will be working on.

Preparing for the Gfci Outlet Install

Before you start the Gfci Outlet Install, it's essential to prepare the area and ensure safety. Follow these steps:

Turn off the power to the circuit at the main electrical panel. Use a non-contact voltage tester to verify that the power is off.
Remove the existing outlet from the wall. Use a screwdriver to unscrew the outlet cover plate and the outlet itself.
Disconnect the wires from the existing outlet. Note the color and position of each wire for reference during the Gfci Outlet Install.

Once you have prepared the area and disconnected the wires, you are ready to proceed with the installation.

Installing the GFCI Outlet

Now that you have prepared the area, follow these steps to complete the Gfci Outlet Install:

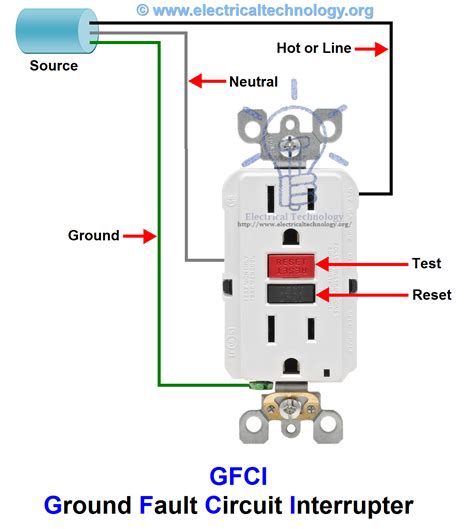

Identify the wires. Typically, you will have a black (hot) wire, a white (neutral) wire, and a green or bare (ground) wire. Some circuits may also have a red wire, which is a switched hot wire.
Connect the wires to the GFCI outlet. The black wire connects to the brass screw, the white wire connects to the silver screw, and the green or bare wire connects to the green screw. If there is a red wire, connect it to the brass screw labeled "LOAD."
Tighten the screws securely to ensure a good connection.
Push the wires back into the electrical box and secure the GFCI outlet to the box using the screws provided.
Attach the outlet cover plate and turn the power back on at the main electrical panel.
Test the GFCI outlet by pressing the "TEST" button. The "RESET" button should pop out, indicating that the outlet is functioning correctly. Press the "RESET" button to restore power.

If the GFCI outlet does not function correctly, double-check your connections and ensure that the wires are properly secured. If the problem persists, consult a licensed electrician.

🛠️ Note: Always follow the manufacturer's instructions for specific wiring diagrams and installation guidelines.

Testing the GFCI Outlet

After completing the Gfci Outlet Install, it's crucial to test the outlet to ensure it is functioning correctly. Follow these steps to test your GFCI outlet:

Plug in a device, such as a lamp or radio, to the GFCI outlet.
Turn on the device to ensure it is receiving power.
Press the "TEST" button on the GFCI outlet. The device should turn off, indicating that the outlet is functioning correctly.
Press the "RESET" button to restore power to the outlet. The device should turn back on.

If the GFCI outlet does not function as expected, double-check your connections and ensure that the wires are properly secured. If the problem persists, consult a licensed electrician.

🛠️ Note: Regularly test your GFCI outlets to ensure they are functioning correctly. This can help prevent electrical shocks and other hazards.

Troubleshooting Common Issues

Even with careful installation, you may encounter issues with your GFCI outlet. Here are some common problems and their solutions:

Outlet does not provide power: Check the connections to ensure they are secure. Verify that the power is on at the main electrical panel.
Outlet trips frequently: This may indicate a ground fault or a problem with the wiring. Check for any damaged wires or appliances that may be causing the issue.
Outlet does not reset: If the "RESET" button does not stay in, there may be a wiring issue. Double-check your connections and ensure that the wires are properly secured.

If you encounter any issues that you cannot resolve, it's best to consult a licensed electrician. Electrical problems can be dangerous, and it's essential to ensure that your system is safe and functioning correctly.

Additional Safety Tips

In addition to installing GFCI outlets, there are other safety measures you can take to protect your home or workplace from electrical hazards:

Use surge protectors to safeguard your electronics from power surges.
Regularly inspect your electrical cords and outlets for signs of damage.
Avoid overloading outlets by using power strips and extension cords sparingly.
Keep electrical appliances away from water sources to prevent electrical shocks.

By following these safety tips and ensuring that your GFCI outlets are properly installed and maintained, you can create a safer environment for everyone.

🛠️ Note: Always prioritize safety when working with electrical systems. If you are unsure about any aspect of the installation process, consult a licensed electrician.

Conclusion

Installing GFCI outlets is a crucial step in ensuring electrical safety in your home or workplace. By understanding the basics of GFCI outlets, preparing the area, and following the installation steps carefully, you can complete a successful Gfci Outlet Install. Regular testing and maintenance of your GFCI outlets will help prevent electrical shocks and other hazards, providing peace of mind and a safer environment for everyone. Always prioritize safety and consult a licensed electrician if you encounter any issues or uncertainties during the installation process.
