The Geneva Drive Mechanism, also known as the Geneva wheel or Maltese cross mechanism, is a mechanical device that translates continuous rotational motion into intermittent rotational motion. This mechanism is widely used in various applications, including film projectors, watchmaking, and automated machinery. Its unique design and functionality make it a fascinating subject for engineers, hobbyists, and anyone interested in mechanical systems.
Understanding the Geneva Drive Mechanism

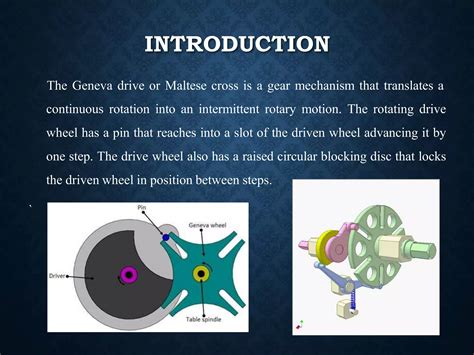

The Geneva Drive Mechanism consists of two main components: the driver and the driven wheel. The driver is typically a rotating disk with a pin or a set of pins that engage with slots on the driven wheel. The driven wheel, often shaped like a Maltese cross, has slots that correspond to the pins on the driver. As the driver rotates, the pins engage with the slots, causing the driven wheel to rotate in a stepwise manner.
Components of the Geneva Drive Mechanism
The Geneva Drive Mechanism is composed of several key components:
- Driver: This is the rotating part that drives the mechanism. It has one or more pins that engage with the slots on the driven wheel.
- Driven Wheel: This is the part that rotates intermittently. It has slots that correspond to the pins on the driver and is often shaped like a Maltese cross.
- Pin: The pin on the driver engages with the slots on the driven wheel to transfer motion.
- Slots: These are the recesses on the driven wheel that the pins engage with.
How the Geneva Drive Mechanism Works
The operation of the Geneva Drive Mechanism can be broken down into several steps:
- Engagement: The pin on the driver engages with one of the slots on the driven wheel.
- Rotation: As the driver continues to rotate, it causes the driven wheel to rotate by a fixed angle, typically 90 degrees for a Maltese cross.
- Dwell: The driven wheel remains stationary while the driver continues to rotate, allowing the next pin to engage with the next slot.
- Repeat: The process repeats, with the driven wheel rotating in a stepwise manner.
This intermittent motion is achieved through the precise timing and engagement of the pins and slots. The dwell period, during which the driven wheel remains stationary, is crucial for applications that require precise timing and control.
Applications of the Geneva Drive Mechanism
The Geneva Drive Mechanism is used in a variety of applications where intermittent motion is required. Some of the most common applications include:
- Film Projectors: In film projectors, the Geneva Drive Mechanism is used to advance the film frame by frame, ensuring smooth and continuous projection.
- Watchmaking: In mechanical watches, the Geneva Drive Mechanism is used to control the movement of the hands, providing precise and accurate timekeeping.
- Automated Machinery: In automated machinery, the Geneva Drive Mechanism is used to control the movement of various components, ensuring precise and controlled motion.
- Toys and Games: The Geneva Drive Mechanism is often used in toys and games to create interesting and engaging movements.
Advantages of the Geneva Drive Mechanism
The Geneva Drive Mechanism offers several advantages that make it a popular choice for various applications:
- Precision: The mechanism provides precise and controlled motion, making it ideal for applications that require high accuracy.
- Simplicity: The design of the Geneva Drive Mechanism is relatively simple, making it easy to manufacture and maintain.
- Reliability: The mechanism is robust and reliable, with a long lifespan and minimal wear and tear.
- Versatility: The Geneva Drive Mechanism can be used in a wide range of applications, from film projectors to automated machinery.
Disadvantages of the Geneva Drive Mechanism
Despite its advantages, the Geneva Drive Mechanism also has some limitations:
- Limited Speed: The mechanism is not suitable for high-speed applications due to the intermittent nature of its motion.
- Complexity in Design: While the basic design is simple, creating a precise and reliable Geneva Drive Mechanism can be complex and require careful engineering.
- Wear and Tear: Over time, the pins and slots can wear down, requiring maintenance and replacement.
Design Considerations for the Geneva Drive Mechanism
When designing a Geneva Drive Mechanism, several factors need to be considered to ensure optimal performance:
- Material Selection: Choose materials that are durable and resistant to wear and tear. Common materials include metals like steel and brass.
- Precision Manufacturing: Ensure that the pins and slots are manufactured with high precision to minimize wear and ensure smooth operation.
- Lubrication: Use appropriate lubrication to reduce friction and wear between the moving parts.
- Load Capacity: Consider the load that the mechanism will need to handle and design it accordingly.
By carefully considering these factors, you can design a Geneva Drive Mechanism that is reliable, efficient, and suitable for your specific application.
🔧 Note: Always consult with a mechanical engineer or expert when designing a Geneva Drive Mechanism to ensure it meets your specific requirements and operates safely.
Maintenance and Troubleshooting
Maintaining a Geneva Drive Mechanism involves regular inspection and lubrication to ensure smooth operation. Here are some tips for maintaining and troubleshooting the mechanism:
- Regular Inspection: Inspect the pins and slots for signs of wear and tear. Replace any worn-out components promptly.
- Lubrication: Apply lubrication to the moving parts to reduce friction and wear. Use a lubricant that is suitable for the materials used in the mechanism.
- Alignment: Ensure that the driver and driven wheel are properly aligned to prevent excessive wear and ensure smooth operation.
- Troubleshooting: If the mechanism is not operating smoothly, check for misalignment, worn-out components, or insufficient lubrication.
By following these maintenance tips, you can extend the lifespan of your Geneva Drive Mechanism and ensure it operates reliably.
🛠️ Note: Always follow safety guidelines when working with mechanical components to prevent injuries.
Conclusion
The Geneva Drive Mechanism is a versatile and reliable mechanical device that translates continuous rotational motion into intermittent rotational motion. Its unique design and functionality make it suitable for a wide range of applications, from film projectors to automated machinery. By understanding the components, operation, and design considerations of the Geneva Drive Mechanism, you can effectively utilize this mechanism in your projects. Regular maintenance and troubleshooting are essential to ensure the mechanism operates smoothly and reliably over time.
