In the world of mechanical engineering and manufacturing, the gear and rack system plays a pivotal role in converting rotational motion into linear motion, and vice versa. This system is widely used in various applications, from automotive and aerospace industries to robotics and automation. Understanding the principles and applications of gear and rack systems can provide valuable insights into their importance and versatility.
Understanding Gear and Rack Systems

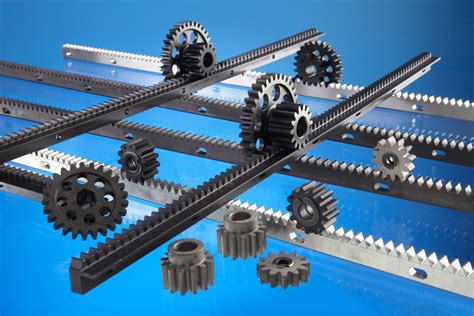

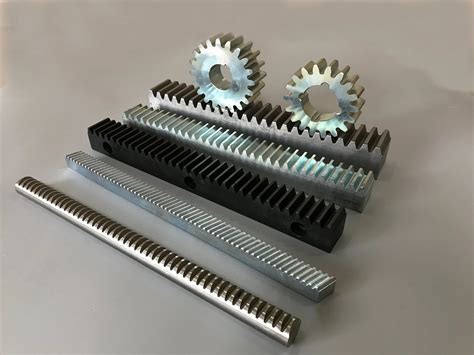

A gear and rack system consists of two main components: the gear and the rack. The gear is a circular component with teeth that mesh with the teeth of the rack, which is a linear component. When the gear rotates, it moves the rack in a straight line, and when the rack moves, it rotates the gear. This interaction allows for precise control over motion and force transmission.
Types of Gear and Rack Systems
There are several types of gear and rack systems, each designed for specific applications. The most common types include:
- Spur Gear and Rack: This is the simplest and most common type, where the teeth are straight and parallel to the axis of rotation.

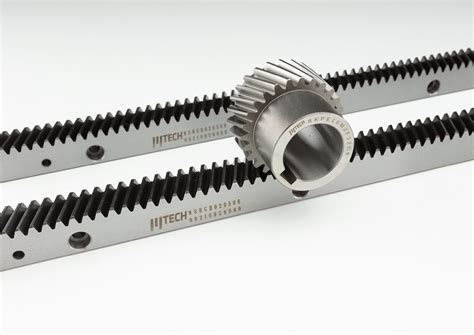

- Helical Gear and Rack: In this type, the teeth are cut at an angle to the axis, providing smoother and quieter operation compared to spur gears.
- Bevel Gear and Rack: These gears have teeth that are cut at an angle to the axis, allowing for the transmission of motion between intersecting shafts.
- Worm Gear and Rack: This type consists of a worm (a screw-like gear) and a rack, providing high torque transmission and self-locking capabilities.
Applications of Gear and Rack Systems
The versatility of gear and rack systems makes them suitable for a wide range of applications. Some of the key areas where these systems are used include:
- Automotive Industry: Gear and rack systems are used in steering mechanisms, where the rotational motion of the steering wheel is converted into linear motion to turn the wheels.
- Aerospace Industry: These systems are used in various aircraft components, such as landing gear and control surfaces, to ensure precise and reliable motion.
- Robotics and Automation: Gear and rack systems are essential in robotic arms and automated machinery, providing precise control over movement and positioning.
- Manufacturing: In manufacturing processes, these systems are used in conveyor belts, CNC machines, and other equipment to ensure smooth and efficient operation.
Design Considerations for Gear and Rack Systems
Designing an effective gear and rack system involves several key considerations to ensure optimal performance and reliability. Some of the important factors to consider include:
- Material Selection: The choice of material for the gear and rack is crucial. Common materials include steel, brass, and plastic, each offering different strengths and wear resistance.
- Tooth Profile: The shape and size of the teeth affect the system's efficiency and durability. Standard tooth profiles include involute, cycloid, and trochoid.
- Load Capacity: The system must be designed to handle the expected loads without failure. This includes considering factors such as torque, speed, and environmental conditions.
- Precision and Tolerance: High precision and tight tolerances are essential for smooth operation and minimal backlash. This is particularly important in applications requiring precise control.
Maintenance and Troubleshooting
Regular maintenance is crucial for the longevity and reliability of gear and rack systems. Some key maintenance practices include:
- Lubrication: Proper lubrication reduces friction and wear, extending the life of the system. Use high-quality lubricants suitable for the operating conditions.
- Inspection: Regularly inspect the gear and rack for signs of wear, damage, or misalignment. Address any issues promptly to prevent further damage.
- Alignment: Ensure that the gear and rack are properly aligned to minimize backlash and wear. Misalignment can lead to premature failure and reduced performance.
If issues arise, troubleshooting involves identifying the root cause and taking corrective actions. Common problems include:
- Excessive Noise: This can be caused by misalignment, worn teeth, or inadequate lubrication. Check for these issues and make necessary adjustments.
- Vibration: Vibration can indicate misalignment or imbalance. Inspect the system for these issues and correct them as needed.
- Reduced Efficiency: If the system is not performing as expected, check for wear, damage, or contamination. Clean and lubricate the components as necessary.
🛠️ Note: Always refer to the manufacturer's guidelines for specific maintenance and troubleshooting procedures.
Case Studies: Real-World Applications
To better understand the practical applications of gear and rack systems, let's explore a few case studies:
Automotive Steering System
In modern vehicles, the steering system often employs a rack-and-pinion mechanism. The steering wheel is connected to a pinion gear, which meshes with a rack. When the driver turns the steering wheel, the pinion gear rotates, moving the rack and turning the wheels. This system provides precise control and responsiveness, enhancing the driving experience.
Aerospace Landing Gear
In aircraft, gear and rack systems are used in the landing gear to ensure smooth and controlled deployment and retraction. The system converts the rotational motion of the actuator into linear motion, extending or retracting the landing gear. This precise control is crucial for safe takeoff and landing.
Robotic Arm in Manufacturing
In automated manufacturing, robotic arms often use gear and rack systems to achieve precise movement. The system allows the arm to move along linear axes, enabling it to perform tasks such as welding, assembly, and material handling with high accuracy and repeatability.
Future Trends in Gear and Rack Technology
The field of gear and rack technology is continually evolving, driven by advancements in materials science, manufacturing techniques, and digital technologies. Some of the emerging trends include:
- Advanced Materials: The development of new materials, such as high-strength alloys and composites, is enhancing the performance and durability of gear and rack systems.
- Additive Manufacturing: 3D printing technologies are enabling the production of complex gear and rack designs that were previously impossible to manufacture.
- Digital Twins: The use of digital twins allows for virtual simulation and optimization of gear and rack systems, improving design and performance.
- Smart Sensors: Integration of smart sensors and IoT technologies enables real-time monitoring and predictive maintenance, enhancing reliability and reducing downtime.
These advancements are paving the way for more efficient, reliable, and versatile gear and rack systems, opening up new possibilities in various industries.
Gear and rack systems are fundamental components in mechanical engineering, offering precise control over motion and force transmission. Their versatility and reliability make them indispensable in a wide range of applications, from automotive and aerospace to robotics and manufacturing. By understanding the principles, types, and applications of gear and rack systems, engineers and designers can leverage these technologies to create innovative and efficient solutions. As technology continues to advance, the future of gear and rack systems looks promising, with new materials, manufacturing techniques, and digital technologies driving further innovation and improvement.
