Geometric Dimensioning and Tolerancing (GD&T) is a system for defining and communicating engineering tolerances. It uses a standardized set of symbols and rules to specify the allowable variation in the form, orientation, location, and runout of features on a part. Understanding GD&T symbols is crucial for engineers, designers, and manufacturers to ensure that parts are produced to the required specifications. This post will delve into the intricacies of GD&T symbols, providing a comprehensive Gd&T Symbols Chart and explaining their applications.
Understanding GD&T Symbols
GD&T symbols are used to convey precise information about the dimensions and tolerances of a part. These symbols are standardized by the American Society of Mechanical Engineers (ASME) and the International Organization for Standardization (ISO). The symbols are divided into several categories, each serving a specific purpose in defining the geometric characteristics of a part.
Basic GD&T Symbols
The basic GD&T symbols include those for form, orientation, location, and runout. Each category has its own set of symbols that are used to specify different types of tolerances.
Form Tolerances
Form tolerances control the overall shape of a feature. The primary form tolerances include:
- Straightness: Ensures that a line or surface is straight within a specified tolerance.
- Flatness: Ensures that a surface is flat within a specified tolerance.
- Circularity: Ensures that all points on a circular feature are equidistant from the center within a specified tolerance.
- Cylindricity: Ensures that all points on a cylindrical feature are equidistant from the axis within a specified tolerance.
Orientation Tolerances
Orientation tolerances control the relationship between features. The primary orientation tolerances include:
- Perpendicularity: Ensures that a feature is perpendicular to a datum within a specified tolerance.
- Parallelism: Ensures that a feature is parallel to a datum within a specified tolerance.
- Angularity: Ensures that a feature is at a specified angle to a datum within a specified tolerance.
Location Tolerances
Location tolerances control the position of a feature relative to a datum. The primary location tolerances include:
- Position: Ensures that a feature is located within a specified tolerance zone relative to a datum.
- Concentricity: Ensures that the axis of a feature is concentric with the axis of a datum within a specified tolerance.
- Symmetry: Ensures that a feature is symmetrically located relative to a datum within a specified tolerance.
Runout Tolerances
Runout tolerances control the variation in the surface of a feature as it rotates around an axis. The primary runout tolerances include:
- Circular Runout: Ensures that all points on a circular feature are within a specified tolerance zone as the feature rotates around an axis.
- Total Runout: Ensures that all points on a feature are within a specified tolerance zone as the feature rotates around an axis.

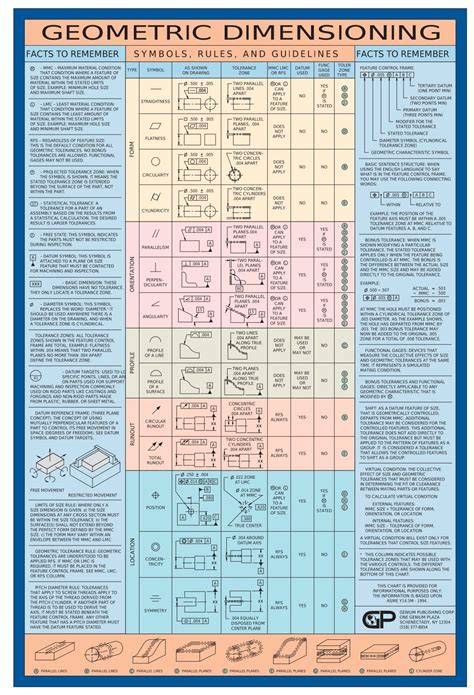

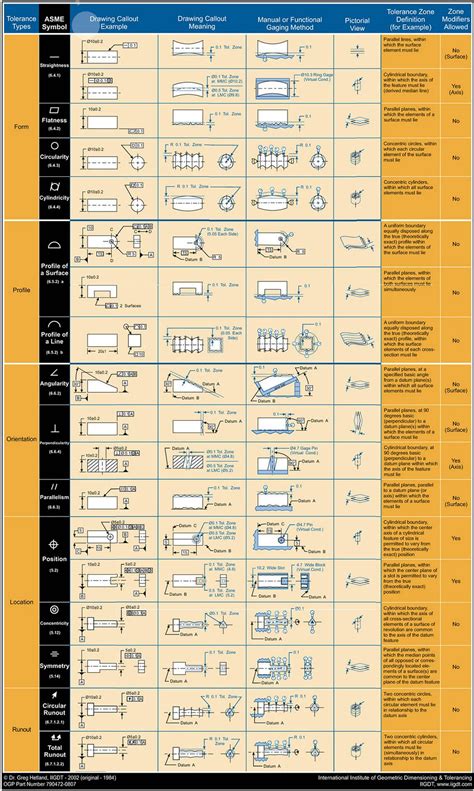

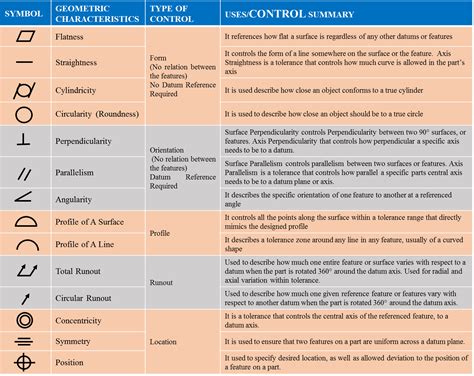

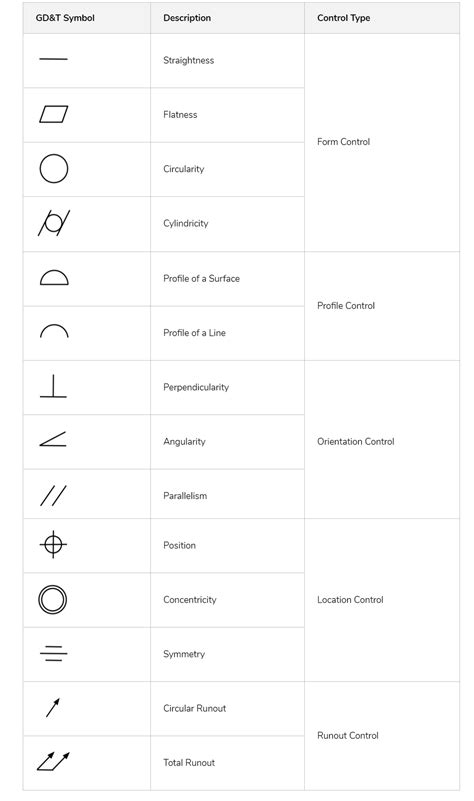

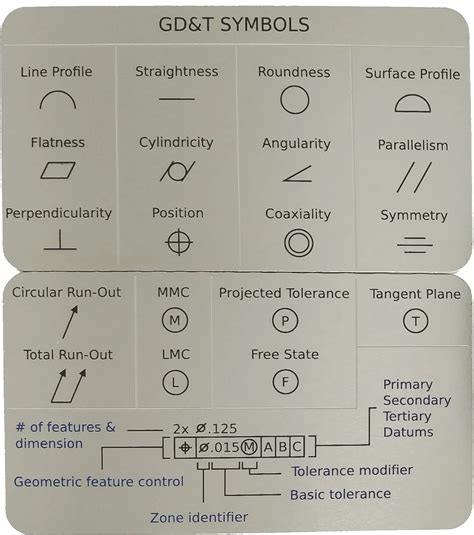

Gd&T Symbols Chart
Below is a comprehensive Gd&T Symbols Chart that includes the symbols for form, orientation, location, and runout tolerances. This chart serves as a quick reference for engineers and designers.
| Category | Symbol | Description |
|---|---|---|
| Form | ⌂ | Straightness |
| Form | ⌂ | Flatness |
| Form | ⌂ | Circularity |
| Form | ⌂ | Cylindricity |
| Orientation | ⌂ | Perpendicularity |
| Orientation | ⌂ | Parallelism |
| Orientation | ⌂ | Angularity |
| Location | ⌂ | Position |
| Location | ⌂ | Concentricity |
| Location | ⌂ | Symmetry |
| Runout | ⌂ | Circular Runout |
| Runout | ⌂ | Total Runout |
📝 Note: The symbols in the chart are placeholders and should be replaced with the actual GD&T symbols for accurate reference.
Applying GD&T Symbols
Applying GD&T symbols correctly is essential for ensuring that parts are manufactured to the required specifications. Here are some key steps and considerations for applying GD&T symbols:
Identifying the Feature
The first step in applying GD&T symbols is to identify the feature that needs to be controlled. This could be a surface, an axis, or a center plane. The feature control frame, which includes the GD&T symbol, tolerance value, and datum references, is then applied to the feature.
Selecting the Appropriate Symbol
Once the feature is identified, the appropriate GD&T symbol must be selected based on the type of tolerance required. For example, if the goal is to control the straightness of a surface, the straightness symbol would be used. If the goal is to control the position of a hole, the position symbol would be used.
Specifying the Tolerance Value
The tolerance value specifies the allowable variation in the feature. This value is typically expressed in units of measurement, such as millimeters or inches. The tolerance value should be chosen based on the functional requirements of the part and the capabilities of the manufacturing process.
Including Datum References
Datum references are used to establish a reference frame for the feature. Datums are typically identified by letters (A, B, C, etc.) and are used to control the orientation and location of the feature relative to other features on the part. The datum references are included in the feature control frame along with the GD&T symbol and tolerance value.
Common Mistakes in Using GD&T Symbols
While GD&T symbols are powerful tools for controlling the geometric characteristics of a part, there are several common mistakes that can occur when using them. Understanding these mistakes can help engineers and designers avoid errors and ensure that parts are manufactured to the required specifications.
Incorrect Symbol Selection
One of the most common mistakes is selecting the wrong GD&T symbol for the feature. For example, using the perpendicularity symbol instead of the parallelism symbol can lead to incorrect interpretation of the tolerance requirements. It is essential to carefully select the appropriate symbol based on the type of tolerance required.
Inadequate Tolerance Values
Another common mistake is specifying inadequate tolerance values. If the tolerance value is too tight, it may be difficult or impossible to manufacture the part within the specified tolerance. If the tolerance value is too loose, the part may not function correctly. It is important to choose tolerance values that are realistic and achievable based on the manufacturing process and the functional requirements of the part.
Improper Datum References
Improper datum references can also lead to errors in interpreting the tolerance requirements. Datums should be clearly defined and consistently applied throughout the part. It is important to ensure that the datum references are logically ordered and that they provide a stable reference frame for the feature.
Best Practices for Using GD&T Symbols
To ensure that GD&T symbols are used effectively, it is important to follow best practices. These practices help to avoid common mistakes and ensure that parts are manufactured to the required specifications.
Clear and Concise Documentation
Clear and concise documentation is essential for communicating the tolerance requirements to manufacturers. The feature control frame should be clearly labeled with the GD&T symbol, tolerance value, and datum references. Any additional notes or instructions should be included to provide further clarification.
Consistent Application
Consistent application of GD&T symbols is important for ensuring that parts are manufactured to the required specifications. The same symbols and tolerance values should be used consistently throughout the part, and any changes should be clearly documented.
Regular Review and Update
Regular review and update of the GD&T symbols and tolerance values are important for ensuring that they remain relevant and achievable. As manufacturing processes and technologies change, it may be necessary to update the tolerance values or select different GD&T symbols to meet the functional requirements of the part.
GD&T symbols are essential tools for controlling the geometric characteristics of a part. By understanding the different categories of GD&T symbols and applying them correctly, engineers and designers can ensure that parts are manufactured to the required specifications. The Gd&T Symbols Chart provided in this post serves as a quick reference for identifying the appropriate symbols and their applications. By following best practices and avoiding common mistakes, engineers and designers can effectively use GD&T symbols to achieve the desired functional requirements of their parts.
