Galvanic Versus Electrolytic Cell

Understanding the distinction between a Galvanic Versus Electrolytic Cell is fundamental in the study of electrochemistry. Both types of cells involve chemical reactions that produce or consume electrical energy, but they operate in fundamentally different ways. This post will delve into the principles, applications, and differences between galvanic and electrolytic cells, providing a comprehensive overview for both students and enthusiasts of chemistry.

Table of Contents

Understanding Galvanic Cells

A galvanic cell, also known as a voltaic cell, is an electrochemical cell that converts chemical energy into electrical energy. This type of cell is commonly used in batteries and other energy storage devices. The key components of a galvanic cell include:

An anode, where oxidation occurs.
A cathode, where reduction occurs.
An electrolyte solution that facilitates the flow of ions between the anode and cathode.
A salt bridge or porous membrane that allows ions to move between the half-cells while preventing the mixing of the solutions.

The overall reaction in a galvanic cell can be broken down into two half-reactions:

Oxidation at the anode: Zn(s) → Zn²⁺(aq) + 2e⁻
Reduction at the cathode: Cu²⁺(aq) + 2e⁻ → Cu(s)

When these half-reactions are combined, the overall cell reaction is:

Zn(s) + Cu²⁺(aq) → Zn²⁺(aq) + Cu(s)

Galvanic cells are spontaneous, meaning they release energy as they operate. This energy can be harnessed to power electrical devices.

Applications of Galvanic Cells

Galvanic cells have a wide range of applications, including:

Batteries: Common examples include alkaline batteries, zinc-carbon batteries, and lithium-ion batteries.
Fuel Cells: These cells convert the chemical energy from a fuel (such as hydrogen) into electrical energy.
Corrosion Protection: Galvanic cells can be used to protect metals from corrosion by acting as sacrificial anodes.

Understanding Electrolytic Cells

An electrolytic cell, on the other hand, is an electrochemical cell that converts electrical energy into chemical energy. This type of cell is used in processes such as electroplating, electrolysis of water, and the production of chemicals. The key components of an electrolytic cell include:

An anode, where oxidation occurs.
A cathode, where reduction occurs.
An electrolyte solution that facilitates the flow of ions between the anode and cathode.
A power source (such as a battery or electrical outlet) that provides the electrical energy needed to drive the reaction.

The overall reaction in an electrolytic cell can be broken down into two half-reactions:

Oxidation at the anode: 2Cl⁻(aq) → Cl₂(g) + 2e⁻
Reduction at the cathode: 2H₂O(l) + 2e⁻ → H₂(g) + 2OH⁻(aq)

When these half-reactions are combined, the overall cell reaction is:

2Cl⁻(aq) + 2H₂O(l) → Cl₂(g) + H₂(g) + 2OH⁻(aq)

Electrolytic cells are non-spontaneous, meaning they require an external source of electrical energy to operate. This energy is used to drive the chemical reactions within the cell.

Applications of Electrolytic Cells

Electrolytic cells have numerous applications, including:

Electroplating: Used to coat one metal with another, such as plating copper onto a steel object.
Electrolysis of Water: Used to produce hydrogen and oxygen gases from water.
Production of Chemicals: Used in the production of various chemicals, such as chlorine and sodium hydroxide.

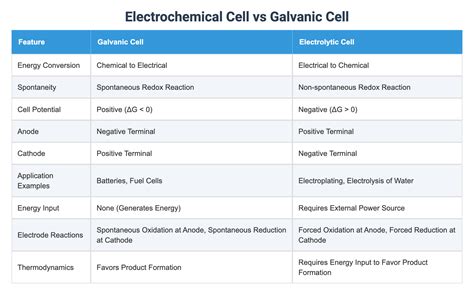

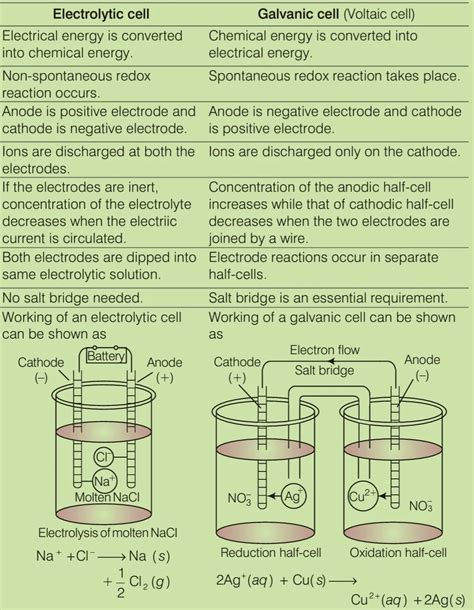

Galvanic Versus Electrolytic Cell: Key Differences

The primary differences between galvanic and electrolytic cells lie in their operation and energy flow. Here is a comparison of the key differences:

Aspect	Galvanic Cell	Electrolytic Cell
Energy Flow	Converts chemical energy into electrical energy	Converts electrical energy into chemical energy
Spontaneity	Spontaneous	Non-spontaneous
Power Source	Chemical reactions	External electrical source
Applications	Batteries, fuel cells, corrosion protection	Electroplating, electrolysis of water, chemical production

Understanding these differences is crucial for selecting the appropriate type of cell for a given application.

💡 Note: The efficiency of both galvanic and electrolytic cells can be affected by factors such as temperature, concentration of electrolytes, and the materials used for the electrodes.

Examples of Galvanic and Electrolytic Cells

To further illustrate the differences between galvanic and electrolytic cells, let's consider a few examples:

Galvanic Cell Example: Daniell Cell

The Daniell cell is a classic example of a galvanic cell. It consists of a zinc electrode immersed in a zinc sulfate solution and a copper electrode immersed in a copper sulfate solution. The overall reaction is:

Zn(s) + Cu²⁺(aq) → Zn²⁺(aq) + Cu(s)

This cell produces electrical energy as the zinc electrode oxidizes and the copper electrode reduces.

Electrolytic Cell Example: Electrolysis of Water

The electrolysis of water is a common example of an electrolytic cell. When an electrical current is passed through water, it decomposes into hydrogen and oxygen gases. The overall reaction is:

2H₂O(l) → 2H₂(g) + O₂(g)

This process requires an external power source to drive the reaction.

Factors Affecting Cell Performance

Several factors can affect the performance of both galvanic and electrolytic cells. These include:

Temperature: Higher temperatures generally increase the rate of chemical reactions, which can enhance cell performance.
Concentration of Electrolytes: The concentration of ions in the electrolyte solution can affect the conductivity and efficiency of the cell.
Electrode Materials: The choice of materials for the anode and cathode can impact the cell's voltage, current, and overall efficiency.
Surface Area of Electrodes: A larger surface area can increase the rate of chemical reactions, improving cell performance.

Understanding and optimizing these factors is essential for maximizing the efficiency and longevity of electrochemical cells.

💡 Note: Regular maintenance and monitoring of electrochemical cells can help ensure optimal performance and extend their lifespan.

In the realm of electrochemistry, the study of Galvanic Versus Electrolytic Cell provides a foundational understanding of how chemical and electrical energy can be interconverted. By grasping the principles and applications of these cells, one can appreciate their significance in various technological and industrial processes. Whether it’s powering a battery or producing chemicals through electrolysis, the knowledge of galvanic and electrolytic cells is invaluable in the modern world.
