Understanding the compatibility of different metals is crucial in various industries, from jewelry making to automotive manufacturing. One essential tool that aids in this understanding is the Galvanic Compatibility Chart. This chart provides a comprehensive guide to the electrochemical compatibility of different metals, helping professionals avoid issues like galvanic corrosion, which can significantly degrade the quality and lifespan of metal products.
What is Galvanic Corrosion?
Galvanic corrosion occurs when two dissimilar metals are in electrical contact in the presence of an electrolyte, such as water or soil. This process causes one metal to corrode preferentially, leading to the deterioration of the structure. The Galvanic Compatibility Chart helps identify which metals can be safely used together to minimize this risk.
Understanding the Galvanic Series

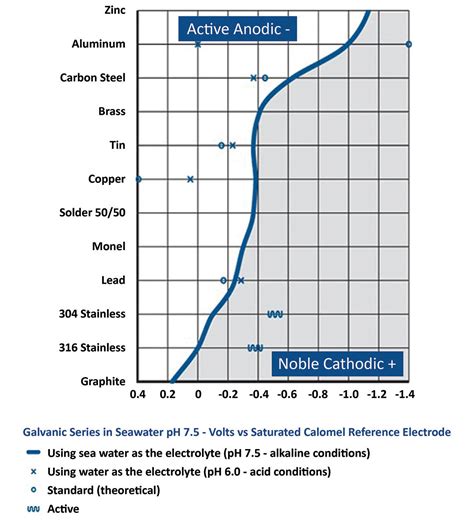

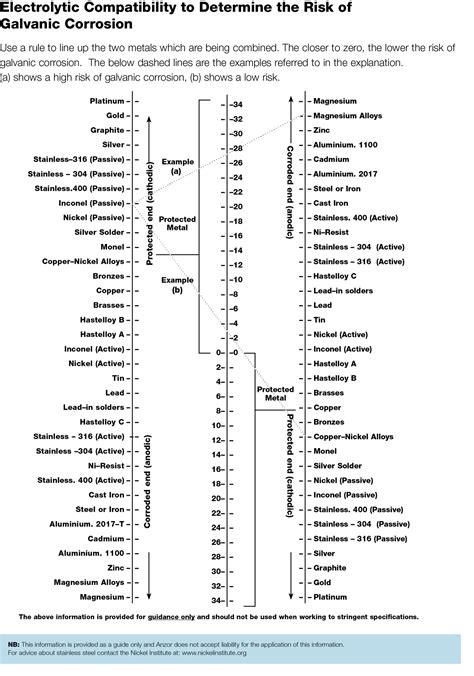

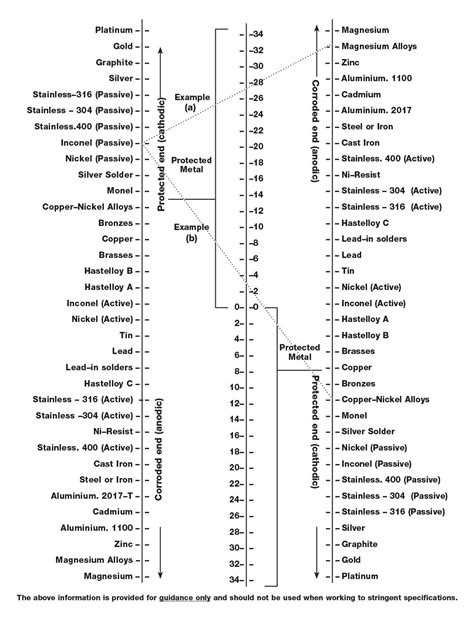

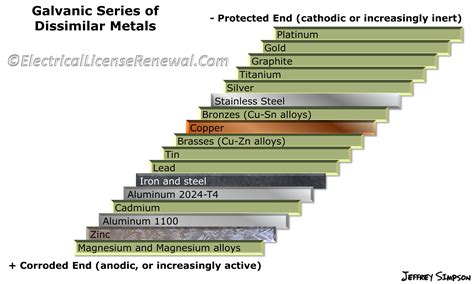

The galvanic series is a list of metals arranged according to their electrochemical potential in a given electrolyte. Metals higher on the series are more noble (less likely to corrode) and those lower are more active (more likely to corrode). The Galvanic Compatibility Chart is often based on this series, providing a visual representation of how metals will interact when in contact.
Key Factors in Galvanic Compatibility
Several factors influence galvanic compatibility, including:
- Electrochemical Potential: The difference in electrochemical potential between two metals determines the likelihood of galvanic corrosion.
- Surface Area Ratio: A larger surface area of the more noble metal can accelerate the corrosion of the less noble metal.
- Electrolyte Type and Concentration: The type and concentration of the electrolyte can affect the rate of corrosion.
- Environmental Conditions: Factors like temperature, humidity, and exposure to chemicals can influence galvanic corrosion.

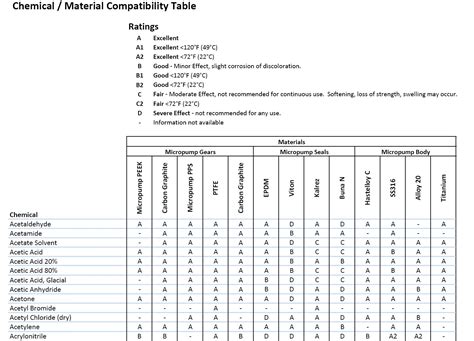

Reading the Galvanic Compatibility Chart

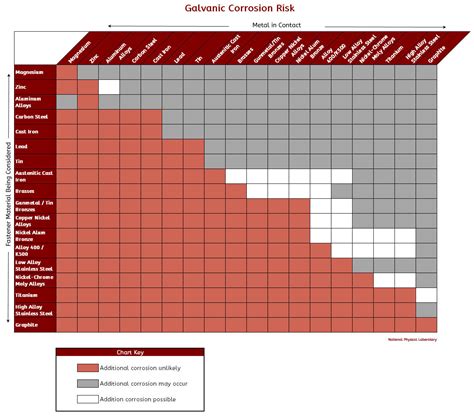

The Galvanic Compatibility Chart is typically organized with metals listed in a grid format. Each cell in the grid indicates the compatibility of the two metals at the intersection. Compatibility is often rated on a scale, such as:
- Highly Compatible: Metals that can be used together with minimal risk of corrosion.
- Moderately Compatible: Metals that may require additional protective measures to prevent corrosion.
- Incompatible: Metals that should not be used together due to high risk of corrosion.

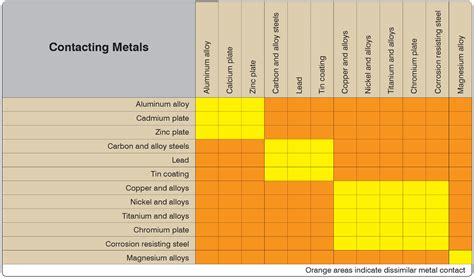

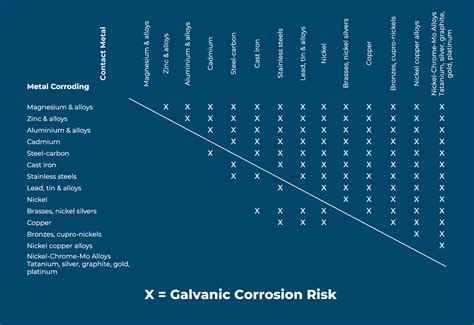

Here is an example of how a Galvanic Compatibility Chart might look:
| Aluminum | Brass | Copper | Stainless Steel | |
|---|---|---|---|---|
| Aluminum | Highly Compatible | Moderately Compatible | Incompatible | Highly Compatible |
| Brass | Moderately Compatible | Highly Compatible | Moderately Compatible | Highly Compatible |
| Copper | Incompatible | Moderately Compatible | Highly Compatible | Highly Compatible |
| Stainless Steel | Highly Compatible | Highly Compatible | Highly Compatible | Highly Compatible |
This chart provides a quick reference for determining the compatibility of different metals. For example, aluminum and copper are incompatible and should not be used together without proper insulation or protective coatings.
📝 Note: The compatibility ratings can vary based on specific environmental conditions and the exact composition of the metals. Always consult detailed guidelines for your specific application.
Applications of the Galvanic Compatibility Chart
The Galvanic Compatibility Chart is used in various industries to ensure the longevity and reliability of metal products. Some key applications include:
- Automotive Industry: Ensuring that different metal components in a vehicle do not corrode when in contact with each other.
- Marine Industry: Protecting metal structures from corrosion in seawater environments.
- Construction: Selecting compatible metals for building materials to prevent structural degradation.
- Electronics: Preventing corrosion in electrical components that use different metals.
- Jewelry Making: Choosing metals that will not tarnish or corrode when worn together.
Preventing Galvanic Corrosion
Even with the help of a Galvanic Compatibility Chart, galvanic corrosion can still occur. Here are some strategies to prevent it:
- Use Insulation: Insulate dissimilar metals to prevent direct contact.
- Apply Protective Coatings: Use coatings like paint, powder coating, or anodizing to protect the metal surfaces.
- Select Compatible Metals: Always refer to the Galvanic Compatibility Chart to choose metals that are highly compatible.
- Control the Environment: Minimize exposure to electrolytes and control environmental conditions to reduce the risk of corrosion.
By implementing these strategies, you can significantly reduce the risk of galvanic corrosion and extend the lifespan of your metal products.
📝 Note: Regular maintenance and inspection of metal structures can help detect early signs of corrosion and take corrective actions promptly.
Case Studies
To illustrate the importance of the Galvanic Compatibility Chart, let’s look at a couple of case studies:
Case Study 1: Automotive Industry
In the automotive industry, different metals are often used in the same vehicle. For example, aluminum is used for the engine block, while steel is used for the chassis. Without proper consideration of galvanic compatibility, these metals could corrode when in contact with each other, leading to costly repairs. By referring to the Galvanic Compatibility Chart, engineers can select appropriate insulation and protective coatings to prevent this issue.
Case Study 2: Marine Structures
Marine structures, such as docks and ships, are constantly exposed to seawater, making them highly susceptible to galvanic corrosion. By using the Galvanic Compatibility Chart, marine engineers can select metals that are highly compatible and apply protective coatings to extend the lifespan of these structures. For instance, stainless steel and titanium are often used together in marine applications due to their high compatibility.
These case studies highlight the practical applications of the Galvanic Compatibility Chart in preventing galvanic corrosion and ensuring the durability of metal products.
📝 Note: Always consult with a materials engineer or corrosion specialist for specific applications and environmental conditions.
In wrapping up, the Galvanic Compatibility Chart is an invaluable tool for professionals working with metals. By understanding the electrochemical compatibility of different metals, you can prevent galvanic corrosion and ensure the longevity and reliability of your metal products. Whether in the automotive, marine, construction, electronics, or jewelry industries, the Galvanic Compatibility Chart provides a comprehensive guide to selecting compatible metals and implementing preventive measures. Regular maintenance and inspection, along with the use of protective coatings and insulation, can further enhance the durability of metal structures. By following these guidelines, you can minimize the risk of galvanic corrosion and achieve optimal performance in your metal applications.
