Understanding the intricacies of your vehicle's engine is crucial for maintaining its performance and longevity. One of the key components that often goes unnoticed but plays a vital role is the Fuel Pressure Gauge. This device is essential for monitoring the fuel system's pressure, ensuring that the engine receives the correct amount of fuel for optimal operation. In this post, we will delve into the importance of the Fuel Pressure Gauge, how it works, and why it is a critical tool for both professional mechanics and DIY enthusiasts.
What is a Fuel Pressure Gauge?
A Fuel Pressure Gauge is an instrument used to measure the pressure of fuel within the fuel system of a vehicle. It is typically connected to the fuel rail or fuel line and provides real-time data on the fuel pressure. This information is crucial for diagnosing issues related to fuel delivery, such as clogged fuel filters, faulty fuel pumps, or leaks in the fuel system.
How Does a Fuel Pressure Gauge Work?
The Fuel Pressure Gauge operates on the principle of measuring the force exerted by the fuel as it flows through the system. Here’s a step-by-step breakdown of how it works:
- The gauge is connected to the fuel rail or fuel line using a fitting that allows fuel to flow through it.
- The fuel pressure exerts force on a diaphragm or piston within the gauge.
- This force is then translated into a readable measurement on the gauge's dial or digital display.
- The reading indicates the pressure of the fuel, which can be compared to the manufacturer's specifications to ensure it is within the correct range.
Importance of Monitoring Fuel Pressure
Monitoring fuel pressure is essential for several reasons:
- Engine Performance: Proper fuel pressure ensures that the engine receives the correct amount of fuel for combustion, which is crucial for optimal performance.
- Fuel Efficiency: Maintaining the correct fuel pressure can improve fuel efficiency by ensuring that the engine is not over or under-fueled.
- Diagnostic Tool: A Fuel Pressure Gauge is an invaluable diagnostic tool for identifying issues within the fuel system, such as clogged filters, faulty pumps, or leaks.
- Preventive Maintenance: Regular monitoring can help prevent major engine problems by catching issues early.
Types of Fuel Pressure Gauges
There are several types of Fuel Pressure Gauges available, each with its own advantages and use cases:
| Type | Description | Use Case |
|---|---|---|

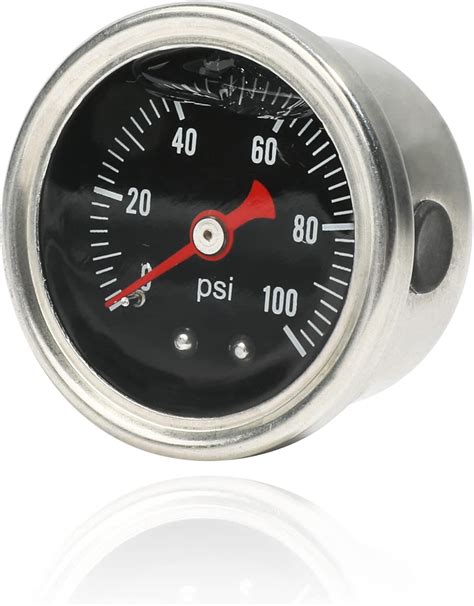

| Analog Gauges | These gauges use a needle to indicate fuel pressure on a dial. They are simple to use and provide a quick visual reference. | Ideal for quick checks and general monitoring. |
| Digital Gauges | Digital gauges display fuel pressure on an LCD or LED screen. They often come with additional features like data logging and alarms. | Best for detailed monitoring and diagnostic purposes. |
| In-Line Gauges | These gauges are installed directly in the fuel line and provide continuous monitoring of fuel pressure. | Suitable for vehicles that require constant monitoring of fuel pressure. |

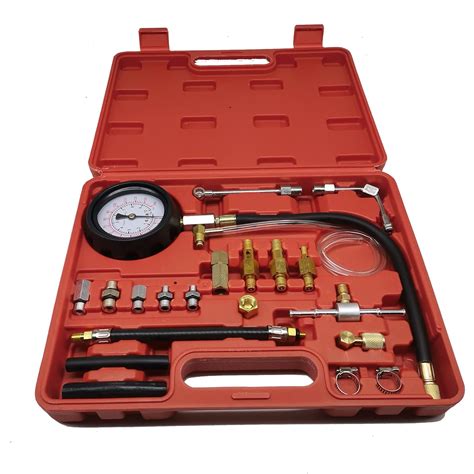

| Test Gauges | Portable gauges designed for temporary use during diagnostics. They are connected to the fuel system via a test port. | Perfect for occasional checks and troubleshooting. |
🔧 Note: Always ensure that the Fuel Pressure Gauge you choose is compatible with your vehicle's fuel system to avoid any potential damage.
How to Use a Fuel Pressure Gauge
Using a Fuel Pressure Gauge involves several steps. Here’s a guide to help you get started:
- Prepare Your Vehicle: Ensure the vehicle is on a level surface and the engine is cool. Turn off the engine and disconnect the negative battery cable to prevent any electrical issues.
- Locate the Fuel Rail or Fuel Line: Identify the fuel rail or fuel line where you will connect the gauge. This is usually located near the engine.
- Connect the Gauge: Attach the Fuel Pressure Gauge to the fuel rail or fuel line using the appropriate fitting. Make sure the connection is secure to prevent leaks.
- Start the Engine: Turn the ignition key to the "On" position without starting the engine. This will allow the fuel pump to pressurize the system.
- Read the Gauge: Observe the reading on the gauge. Compare it to the manufacturer's specifications to ensure it is within the correct range.
- Diagnose Issues: If the reading is outside the specified range, it may indicate a problem with the fuel system, such as a clogged filter or faulty pump.
- Disconnect the Gauge: Once you have completed the reading, turn off the ignition and disconnect the gauge. Reconnect the negative battery cable and start the engine to ensure everything is functioning correctly.
🔧 Note: Always follow safety precautions when working with fuel systems, including wearing protective gloves and eyewear.
Common Issues and Troubleshooting
Even with regular monitoring, issues can arise with the fuel system. Here are some common problems and how to troubleshoot them using a Fuel Pressure Gauge:
- Low Fuel Pressure: If the gauge reads lower than the specified range, it could indicate a clogged fuel filter, a faulty fuel pump, or a leak in the fuel line. Check these components and replace or repair as necessary.
- High Fuel Pressure: High fuel pressure can be caused by a faulty fuel pressure regulator or a clogged return line. Inspect these components and address any issues found.
- Fluctuating Fuel Pressure: Fluctuating readings can indicate a problem with the fuel pump or a leak in the fuel system. Check for leaks and ensure the fuel pump is functioning correctly.
🔧 Note: Always refer to your vehicle's manual for specific troubleshooting steps and safety guidelines.
Maintaining Your Fuel Pressure Gauge
To ensure the accuracy and longevity of your Fuel Pressure Gauge, regular maintenance is essential. Here are some tips for keeping your gauge in top condition:
- Clean the Gauge: Regularly clean the gauge to remove any dirt or debris that could affect its accuracy.
- Check Connections: Ensure that all connections are secure and free of leaks. Replace any damaged fittings or hoses.
- Calibrate the Gauge: Periodically calibrate the gauge to ensure it is providing accurate readings. Follow the manufacturer's instructions for calibration.
- Store Properly: When not in use, store the gauge in a dry, cool place to prevent damage from moisture or extreme temperatures.
🔧 Note: Always handle the gauge with care to avoid damaging the delicate components.
In conclusion, the Fuel Pressure Gauge is an indispensable tool for anyone looking to maintain the health and performance of their vehicle’s engine. By understanding how it works, how to use it, and how to troubleshoot common issues, you can ensure that your vehicle runs smoothly and efficiently. Regular monitoring and maintenance of the fuel system can prevent major problems and extend the life of your engine, making the Fuel Pressure Gauge a valuable investment for any vehicle owner.
