Ftp Port Number

Understanding the intricacies of network protocols and their associated ports is crucial for anyone involved in network administration or cybersecurity. One of the fundamental protocols in this realm is File Transfer Protocol (FTP), which is widely used for transferring files between computers on a TCP/IP network. A key aspect of FTP is the FTP port number, which plays a pivotal role in establishing and maintaining connections. This post delves into the details of FTP, its port numbers, and the significance of these ports in network communication.

Table of Contents

What is FTP?

File Transfer Protocol (FTP) is a standard network protocol used for the transfer of files from one host to another over a TCP-based network, such as the Internet. FTP is built on a client-server architecture and utilizes separate control and data connections between the client and server. The control connection is used to send commands from the client to the server, while the data connection is used to transfer the actual files.

Understanding FTP Port Numbers

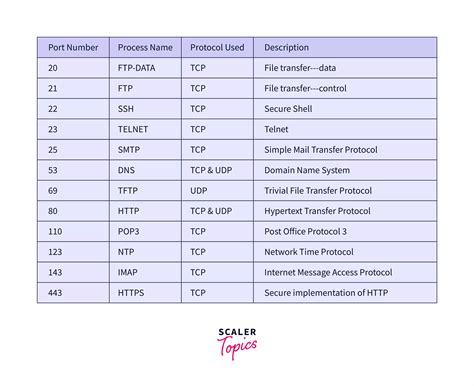

The FTP port number is essential for establishing connections between FTP clients and servers. FTP uses two primary ports: port 21 for the control connection and port 20 for the data connection. These ports are defined by the Internet Assigned Numbers Authority (IANA) and are standard across most FTP implementations.

Control Connection (Port 21)

The control connection is established on port 21. This port is used for sending commands from the FTP client to the FTP server. Commands such as login, directory listing, and file transfer requests are sent over this port. The control connection remains open throughout the FTP session, allowing for continuous communication between the client and server.

Data Connection (Port 20)

The data connection is used for transferring files and is established on port 20. This port is responsible for the actual data transfer between the client and server. The data connection can be active or passive, depending on the mode of operation. In active mode, the server initiates the data connection to the client, while in passive mode, the client initiates the data connection to the server.

Active vs. Passive Mode

FTP supports two modes of operation for data transfer: active mode and passive mode. Understanding the differences between these modes is crucial for configuring FTP servers and clients correctly.

Active Mode

In active mode, the FTP server initiates the data connection to the client. The server listens on port 20 for incoming data connections. When a file transfer is requested, the server opens a random port (usually above 1023) and sends the port number to the client. The client then initiates a connection to the server on the specified port. This mode is straightforward but can be problematic in environments with firewalls or Network Address Translation (NAT).

Passive Mode

In passive mode, the FTP client initiates the data connection to the server. The client sends a PASV command to the server, which responds with a port number on which it will listen for the data connection. The client then initiates a connection to the server on the specified port. Passive mode is generally more firewall-friendly and is often used in environments with strict firewall rules.

Configuring FTP Port Numbers

Configuring FTP port numbers correctly is essential for ensuring smooth file transfers. Here are some steps to configure FTP port numbers on a typical FTP server:

Step 1: Choose the FTP Server Software

Select an FTP server software that supports both active and passive modes. Popular choices include vsftpd, ProFTPD, and FileZilla Server.

Step 2: Install and Configure the FTP Server

Install the chosen FTP server software on your server. During the installation process, you will be prompted to configure various settings, including the FTP port number. Ensure that port 21 is configured for the control connection and that the data connection ports are correctly set.

Step 3: Configure Firewall Settings

Configure your firewall to allow traffic on the FTP port number (port 21) and the data connection ports. For passive mode, you may need to configure a range of ports that the server will use for data connections. For example, you might configure the server to use ports 10000 to 10100 for passive mode data connections.

Step 4: Test the Configuration

After configuring the FTP server and firewall settings, test the configuration by connecting to the server using an FTP client. Ensure that both active and passive modes work correctly and that file transfers are successful.

🔍 Note: Always ensure that your FTP server is secured with strong passwords and, if possible, use FTP over SSL/TLS (FTPS) or SFTP for encrypted file transfers.

Common Issues with FTP Port Numbers

Despite its widespread use, FTP can encounter several issues related to port numbers. Understanding these issues can help in troubleshooting and resolving connectivity problems.

Firewall and NAT Issues

Firewalls and NAT devices can block FTP traffic, especially in active mode. To mitigate this, configure your FTP server to use passive mode and ensure that the firewall allows traffic on the specified passive mode ports.

Port Conflicts

Port conflicts can occur if another service is using the same port as FTP. Ensure that port 21 is not being used by another service and that the data connection ports are free from conflicts.

Incorrect Configuration

Incorrect configuration of FTP port numbers can lead to connectivity issues. Double-check your server and firewall settings to ensure that the FTP port number and data connection ports are correctly configured.

Security Considerations

FTP, by default, transmits data in plaintext, making it vulnerable to eavesdropping and man-in-the-middle attacks. To enhance security, consider the following measures:

Use FTP over SSL/TLS (FTPS) to encrypt data transmissions.
Use SFTP (SSH File Transfer Protocol) for secure file transfers.
Implement strong authentication mechanisms, such as two-factor authentication.
Regularly update your FTP server software to patch known vulnerabilities.

Alternative Protocols

While FTP is widely used, there are alternative protocols that offer enhanced security and features. Some popular alternatives include:

SFTP (SSH File Transfer Protocol): Provides secure file transfers over SSH.
SCP (Secure Copy Protocol): Allows secure file transfers using SSH.
FTPS (FTP Secure): Provides FTP over SSL/TLS for encrypted file transfers.
HTTP/HTTPS with WebDAV: Allows file transfers over HTTP/HTTPS with additional features like versioning and locking.

Each of these protocols has its own advantages and use cases, and the choice of protocol depends on the specific requirements of your application.

In summary, understanding the FTP port number and its role in network communication is essential for anyone involved in network administration or cybersecurity. By configuring FTP port numbers correctly and addressing common issues, you can ensure smooth and secure file transfers. Additionally, considering alternative protocols can enhance security and provide additional features for file transfers.
