Foundation Wall Crack Repair

Foundation wall crack repair is a critical aspect of home maintenance that often goes overlooked until significant damage occurs. Cracks in foundation walls can compromise the structural integrity of a building, leading to costly repairs if not addressed promptly. Understanding the causes, types, and repair methods for foundation wall cracks is essential for homeowners to maintain the safety and value of their properties.

Table of Contents

Understanding Foundation Wall Cracks

Foundation wall cracks can be caused by a variety of factors, including soil settlement, hydrostatic pressure, and temperature changes. Identifying the root cause of the crack is the first step in determining the appropriate repair method. Some common causes of foundation wall cracks include:

Soil Settlement: Over time, the soil beneath a foundation can settle unevenly, causing the foundation to shift and crack.
Hydrostatic Pressure: Water in the soil can exert pressure on foundation walls, leading to cracks and leaks.
Temperature Changes: Extreme temperature fluctuations can cause concrete to expand and contract, resulting in cracks.
Poor Construction: Inadequate construction practices, such as using low-quality materials or improper mixing of concrete, can lead to cracks.

Foundation wall cracks can be categorized into different types based on their appearance and severity. Some common types of foundation wall cracks include:

Hairline Cracks: These are thin, non-structural cracks that typically do not require immediate repair.

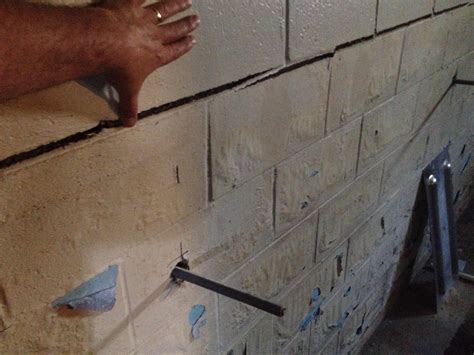

Stair-Step Cracks: These cracks follow the mortar joints in brick or block foundations and can indicate significant structural issues.
Horizontal Cracks: These cracks run parallel to the ground and are often caused by hydrostatic pressure or soil settlement.
Vertical Cracks: These cracks run from top to bottom and can be caused by settling or poor construction practices.
Diagonal Cracks: These cracks run at an angle and can indicate settling or foundation movement.

Assessing the Severity of Foundation Wall Cracks

Before attempting any foundation wall crack repair, it is essential to assess the severity of the crack. Minor cracks may not require immediate attention, while more severe cracks can indicate significant structural issues. Here are some steps to assess the severity of a foundation wall crack:

Measure the width of the crack using a ruler or tape measure. Cracks wider than 1/4 inch may require professional repair.
Inspect the crack for signs of water leakage or moisture. Cracks that allow water to enter the foundation can lead to mold growth and other issues.
Check for any signs of movement or shifting in the foundation. Cracks that are widening or changing shape may indicate ongoing foundation movement.
Look for other signs of foundation damage, such as doors or windows that are difficult to open or close, or gaps between the foundation and the walls.

If you are unsure about the severity of a foundation wall crack, it is best to consult with a professional foundation repair specialist. They can provide a thorough inspection and recommend the appropriate repair methods.

Foundation Wall Crack Repair Methods

There are several methods for repairing foundation wall cracks, ranging from simple DIY solutions to more complex professional repairs. The choice of repair method depends on the type and severity of the crack, as well as the underlying cause. Here are some common foundation wall crack repair methods:

Epoxy Injection

Epoxy injection is a popular method for repairing foundation wall cracks. This process involves injecting a low-viscosity epoxy resin into the crack, which then hardens and seals the crack. Epoxy injection is effective for both structural and non-structural cracks and can restore the strength of the foundation.

Here are the steps for epoxy injection:

Clean the crack thoroughly to remove any debris or loose material.
Drill small holes along the crack at regular intervals.
Insert injection ports into the holes and seal them with epoxy.
Inject the epoxy resin into the crack using a low-pressure pump.
Allow the epoxy to cure according to the manufacturer's instructions.
Remove the injection ports and seal the holes with epoxy.

🛠️ Note: Epoxy injection should be performed by a professional to ensure proper application and curing.

Urethane Injection

Urethane injection is another effective method for repairing foundation wall cracks. This process involves injecting a polyurethane foam into the crack, which expands and seals the crack. Urethane injection is particularly effective for cracks that allow water to enter the foundation, as the foam creates a waterproof seal.

Here are the steps for urethane injection:

Clean the crack thoroughly to remove any debris or loose material.
Drill small holes along the crack at regular intervals.
Insert injection ports into the holes and seal them with urethane.
Inject the polyurethane foam into the crack using a low-pressure pump.
Allow the foam to expand and cure according to the manufacturer's instructions.
Remove the injection ports and seal the holes with urethane.

🛠️ Note: Urethane injection should be performed by a professional to ensure proper application and curing.

Carbon Fiber Strips

Carbon fiber strips are a modern solution for repairing foundation wall cracks. These strips are made of high-strength carbon fiber and are applied to the surface of the crack. The strips reinforce the foundation and prevent further cracking. Carbon fiber strips are particularly effective for structural cracks and can be used in conjunction with other repair methods.

Here are the steps for applying carbon fiber strips:

Clean the crack thoroughly to remove any debris or loose material.
Apply a layer of epoxy adhesive to the surface of the crack.
Place the carbon fiber strip over the crack and press it firmly into the adhesive.
Allow the adhesive to cure according to the manufacturer's instructions.
Apply a second layer of epoxy adhesive over the carbon fiber strip to seal it.

🛠️ Note: Carbon fiber strips should be applied by a professional to ensure proper adhesion and reinforcement.

Concrete Patching

Concrete patching is a simple and cost-effective method for repairing minor foundation wall cracks. This process involves filling the crack with a concrete patching compound, which hardens and seals the crack. Concrete patching is suitable for non-structural cracks and can be performed as a DIY project.

Here are the steps for concrete patching:

Clean the crack thoroughly to remove any debris or loose material.
Widen the crack slightly using a chisel and hammer to create a better surface for the patching compound to adhere to.
Mix the concrete patching compound according to the manufacturer's instructions.
Apply the patching compound to the crack using a trowel or putty knife.
Smooth the surface of the patch and allow it to cure according to the manufacturer's instructions.

🛠️ Note: Concrete patching is not suitable for structural cracks or cracks that allow water to enter the foundation.

Hydraulic Cement

Hydraulic cement is a specialized cement that sets and hardens even under water. It is an effective solution for repairing foundation wall cracks that are exposed to moisture. Hydraulic cement can be used to seal cracks and prevent water from entering the foundation.

Here are the steps for using hydraulic cement:

Clean the crack thoroughly to remove any debris or loose material.
Widen the crack slightly using a chisel and hammer to create a better surface for the hydraulic cement to adhere to.
Mix the hydraulic cement according to the manufacturer's instructions.
Apply the hydraulic cement to the crack using a trowel or putty knife.
Smooth the surface of the cement and allow it to cure according to the manufacturer's instructions.

🛠️ Note: Hydraulic cement should be used in conjunction with other repair methods for structural cracks.

Preventing Foundation Wall Cracks

Preventing foundation wall cracks is essential for maintaining the structural integrity of a building. Here are some tips for preventing foundation wall cracks:

Proper Drainage: Ensure that water is properly drained away from the foundation to prevent hydrostatic pressure. Install gutters, downspouts, and French drains to direct water away from the foundation.
Soil Management: Maintain consistent moisture levels in the soil around the foundation to prevent settling. Water the soil during dry periods and ensure proper grading to direct water away from the foundation.
Regular Inspections: Conduct regular inspections of the foundation to identify and address any issues early. Look for signs of cracking, settling, or water damage.
Quality Construction: Use high-quality materials and proper construction practices to ensure the foundation is strong and durable. Avoid cutting corners or using low-quality materials.

When to Call a Professional

While some foundation wall cracks can be repaired using DIY methods, it is essential to know when to call a professional. If you are unsure about the severity of a crack or the appropriate repair method, it is best to consult with a professional foundation repair specialist. Here are some signs that you should call a professional:

Cracks wider than 1/4 inch.
Cracks that are widening or changing shape.
Cracks that allow water to enter the foundation.
Cracks that are accompanied by other signs of foundation damage, such as doors or windows that are difficult to open or close.

Professional foundation repair specialists have the knowledge, experience, and equipment to assess and repair foundation wall cracks effectively. They can provide a thorough inspection, recommend the appropriate repair methods, and ensure that the repair is done correctly.

Cost of Foundation Wall Crack Repair

The cost of foundation wall crack repair can vary depending on the type and severity of the crack, as well as the repair method used. Here is a breakdown of the average costs for different foundation wall crack repair methods:

Repair Method	Average Cost
Epoxy Injection	$400 - $800 per crack
Urethane Injection	$300 - $600 per crack
Carbon Fiber Strips	$500 - $1,500 per strip
Concrete Patching	$200 - $500 per crack
Hydraulic Cement	$100 - $300 per crack

It is important to note that these are average costs and can vary depending on the location, the size of the crack, and the complexity of the repair. It is always a good idea to get multiple quotes from different foundation repair specialists to ensure you are getting a fair price.

In addition to the cost of the repair itself, there may be other costs associated with foundation wall crack repair, such as:

Inspection Fees: Some foundation repair specialists charge a fee for inspecting the foundation and assessing the damage.
Permits: Depending on your location, you may need to obtain a permit for foundation repairs, which can add to the overall cost.
Additional Repairs: If the foundation wall crack is caused by underlying issues, such as poor drainage or soil settlement, additional repairs may be necessary to address these issues.

When considering the cost of foundation wall crack repair, it is essential to weigh the benefits of addressing the issue promptly against the potential costs of ignoring it. Ignoring foundation wall cracks can lead to more significant and costly repairs in the future, as well as potential safety hazards.

Regular maintenance and inspections can help prevent foundation wall cracks and catch any issues early, saving you time and money in the long run.

Foundation wall crack repair is a critical aspect of home maintenance that should not be overlooked. By understanding the causes, types, and repair methods for foundation wall cracks, homeowners can take proactive steps to maintain the safety and value of their properties. Regular inspections, proper drainage, and quality construction practices can help prevent foundation wall cracks, while prompt and effective repair methods can address any issues that arise. If you are unsure about the severity of a foundation wall crack or the appropriate repair method, it is best to consult with a professional foundation repair specialist.

By taking a proactive approach to foundation wall crack repair, homeowners can ensure the structural integrity of their buildings and protect their investments for years to come.
