Foliation In Geology

Foliation in geology refers to the repetitive layering or banding in metamorphic rocks, which is a result of the alignment of minerals due to tectonic stress. This phenomenon is crucial for understanding the deformation history and structural evolution of rocks. Foliation can manifest in various forms, each providing unique insights into the geological processes that shaped the Earth's crust.

Table of Contents

Understanding Foliation in Geology

Foliation is a fundamental concept in structural geology, describing the planar or layered structure of rocks. It is primarily observed in metamorphic rocks, which have undergone significant changes due to heat, pressure, and chemical processes. The alignment of minerals within these rocks creates distinct layers or bands, which can be parallel or at various angles to each other.

There are several types of foliation, each characterized by different mineral alignments and textures. The most common types include:

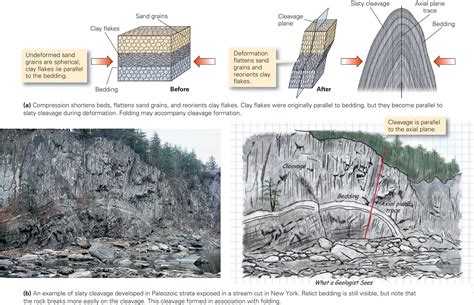

Slaty Cleavage: This is the most basic form of foliation, typically found in low-grade metamorphic rocks like slate. It results from the parallel alignment of fine-grained minerals, such as mica and chlorite, creating a smooth, planar surface.
Schistosity: Found in medium to high-grade metamorphic rocks like schist, schistosity is characterized by the alignment of coarse-grained minerals, such as mica and garnet, forming distinct layers or bands.
Gneissic Banding: This type of foliation is common in high-grade metamorphic rocks like gneiss. It features alternating layers of light and dark minerals, often quartz and feldspar, creating a banded appearance.
Lineation: While not a foliation in the strictest sense, lineation refers to the linear alignment of minerals or structures within a rock. It can be observed in conjunction with foliation and provides additional information about the direction of tectonic stress.

Formation of Foliation

Foliation in geology is primarily formed through the process of metamorphism, which involves the transformation of pre-existing rocks under high temperatures and pressures. The key factors contributing to the development of foliation include:

Tectonic Stress: The application of directional stress, such as compression or shear, causes minerals to align perpendicular to the direction of maximum stress. This alignment results in the formation of foliation planes.
Recrystallization: During metamorphism, minerals may recrystallize, forming new grains that align with the direction of stress. This process enhances the development of foliation.
Differential Stress: The variation in stress across different parts of a rock can lead to the development of complex foliation patterns, including multiple sets of foliation planes.

Foliation can also be influenced by the original composition and texture of the rock, as well as the presence of fluids during metamorphism. These factors contribute to the diversity of foliation types observed in metamorphic rocks.

Importance of Foliation in Geological Studies

Foliation plays a critical role in various aspects of geological studies, including structural analysis, tectonic interpretation, and economic geology. Some of the key applications of foliation in geology include:

Structural Analysis: Foliation provides valuable information about the orientation and magnitude of tectonic stresses that have acted on a rock. By analyzing foliation patterns, geologists can reconstruct the deformation history of a region.
Tectonic Interpretation: The type and orientation of foliation can indicate the tectonic setting in which a rock formed. For example, slaty cleavage is often associated with low-grade metamorphism in convergent plate boundaries, while gneissic banding is typical of high-grade metamorphism in collision zones.
Economic Geology: Foliation can influence the distribution and concentration of minerals in metamorphic rocks. For instance, the alignment of minerals in schistosity can create zones of enrichment for valuable minerals, making foliation an important consideration in mineral exploration.

Additionally, foliation is used in the study of metamorphic facies, which are groups of minerals that form under specific pressure and temperature conditions. By analyzing foliation patterns, geologists can determine the metamorphic grade of a rock and infer the conditions under which it formed.

Identifying Foliation in the Field

Identifying foliation in the field involves careful observation and measurement of rock textures and structures. Here are some steps to help geologists identify foliation:

Visual Inspection: Begin by visually inspecting the rock for any signs of layering or banding. Look for parallel or intersecting planes that may indicate foliation.
Texture Analysis: Examine the texture of the rock to determine the grain size and mineral composition. Fine-grained rocks like slate may exhibit slaty cleavage, while coarse-grained rocks like schist may show schistosity.
Measurement: Use a compass and clinometer to measure the orientation of foliation planes. Record the strike and dip of the foliation to understand its spatial relationship with other geological structures.
Sampling: Collect samples of the rock for laboratory analysis. Thin sections can be prepared to study the mineral alignment and texture under a microscope.

📝 Note: Always ensure that field observations are documented accurately, including sketches, photographs, and detailed notes. This information is crucial for interpreting foliation patterns and understanding the geological context.

Case Studies of Foliation in Geology

Several well-known geological regions provide excellent examples of foliation in action. These case studies highlight the diversity of foliation types and their significance in understanding geological processes.

Slaty Cleavage in the Appalachian Mountains

The Appalachian Mountains in eastern North America are renowned for their extensive slaty cleavage. This region underwent significant deformation during the Paleozoic era, resulting in the formation of low-grade metamorphic rocks like slate. The slaty cleavage in these rocks provides insights into the compressive stresses associated with the collision of ancient continents.

Schistosity in the Himalayas

The Himalayan Mountains offer a prime example of schistosity, with extensive outcrops of schist displaying well-developed foliation. The schistosity in these rocks is a result of high-grade metamorphism during the collision of the Indian and Eurasian plates. The alignment of minerals in the schist provides valuable information about the direction and magnitude of tectonic stresses in the region.

Gneissic Banding in the Canadian Shield

The Canadian Shield is characterized by extensive gneissic banding, reflecting the high-grade metamorphism that occurred during the Archean and Proterozoic eras. The alternating layers of light and dark minerals in the gneiss provide insights into the complex tectonic history of the region, including multiple episodes of deformation and metamorphism.

Challenges in Studying Foliation

While foliation is a powerful tool in geological studies, it also presents several challenges. Some of the key difficulties in studying foliation include:

Complexity of Foliation Patterns: Rocks often exhibit multiple sets of foliation planes, making it challenging to interpret the deformation history. Complex foliation patterns can result from multiple episodes of deformation or the superimposition of different tectonic stresses.
Variability in Mineral Composition: The mineral composition of a rock can vary significantly, affecting the development and visibility of foliation. Some minerals may not align as readily as others, leading to less pronounced foliation.
Field Conditions: Field conditions can pose challenges in identifying and measuring foliation. Weathering, vegetation, and accessibility issues can hinder accurate observations and measurements.

Despite these challenges, advancements in technology and analytical techniques continue to enhance our understanding of foliation and its significance in geological studies.

Foliation in geology is a fundamental concept that provides valuable insights into the deformation history and structural evolution of rocks. By understanding the different types of foliation and their formation processes, geologists can reconstruct the tectonic history of regions, interpret metamorphic facies, and identify potential mineral resources. The study of foliation continues to be a vital area of research, contributing to our broader understanding of the Earth’s dynamic processes.
