Understanding the flux of heat is crucial in various fields, from engineering and physics to environmental science. Heat flux, often denoted as q, represents the rate of heat transfer through a given surface. This concept is fundamental in designing efficient heating and cooling systems, understanding climate patterns, and optimizing industrial processes. This post delves into the principles of heat flux, its applications, and how to measure and calculate it effectively.
Understanding Heat Flux
Heat flux is a vector quantity that describes the amount of heat that passes through a surface per unit area per unit time. It is typically measured in watts per square meter (W/m²). The direction of the heat flux vector is perpendicular to the surface and points in the direction of heat flow. In simpler terms, it tells us how much heat is moving through a specific area in a given amount of time.
There are three primary modes of heat transfer: conduction, convection, and radiation. Each of these modes can be described in terms of heat flux:
- Conduction: Heat transfer through direct contact between objects or within a single object. The heat flux in conduction is given by Fourier's Law: q = -k ∇T, where k is the thermal conductivity, and ∇T is the temperature gradient.
- Convection: Heat transfer between a surface and a moving fluid (liquid or gas). The heat flux in convection is described by Newton's Law of Cooling: q = h(Ts - T∞), where h is the convective heat transfer coefficient, Ts is the surface temperature, and T∞ is the fluid temperature far from the surface.
- Radiation: Heat transfer through electromagnetic waves. The heat flux in radiation is given by the Stefan-Boltzmann Law: q = εσ(Ts⁴ - Tsur⁴), where ε is the emissivity, σ is the Stefan-Boltzmann constant, Ts is the surface temperature, and Tsur is the surrounding temperature.
Applications of Heat Flux Measurement
The measurement of heat flux is essential in various applications, including:
- Building Insulation: Understanding the heat flux through walls, roofs, and windows helps in designing energy-efficient buildings.

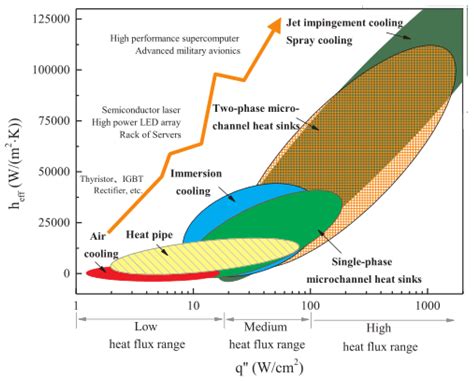

- Electronics Cooling: Managing the heat flux in electronic devices is crucial for preventing overheating and ensuring reliable performance.
- Industrial Processes: Monitoring heat flux in furnaces, reactors, and other industrial equipment helps in optimizing energy use and improving safety.
- Climate Science: Measuring the heat flux between the Earth's surface and the atmosphere is vital for understanding climate patterns and predicting weather changes.
Measuring Heat Flux
Measuring heat flux involves using specialized sensors and instruments. Some common methods include:
- Heat Flux Sensors: These devices directly measure the heat flux through a surface. They are often used in research and industrial applications.
- Thermocouples and Thermopiles: These sensors measure temperature differences and can be used to infer heat flux. They are commonly used in HVAC systems and electronic devices.
- Infrared Thermography: This non-contact method uses infrared cameras to measure surface temperatures and infer heat flux. It is useful in building inspections and industrial maintenance.
When selecting a method for measuring heat flux, consider the following factors:
- The required accuracy and precision.
- The operating environment (temperature, humidity, etc.).
- The size and shape of the surface being measured.
- The cost and availability of the measurement equipment.
🔍 Note: Always calibrate your measurement equipment regularly to ensure accurate results.
Calculating Heat Flux
Calculating heat flux involves using the appropriate equations based on the mode of heat transfer. Here are some examples:
Conduction
For a one-dimensional heat transfer through a plane wall, the heat flux is given by:
q = k * (T2 - T1) / L
where k is the thermal conductivity, T2 and T1 are the temperatures on either side of the wall, and L is the thickness of the wall.
Convection
For heat transfer between a surface and a fluid, the heat flux is:
q = h * (Ts - T∞)
where h is the convective heat transfer coefficient, Ts is the surface temperature, and T∞ is the fluid temperature far from the surface.
Radiation
For heat transfer by radiation between two surfaces, the heat flux is:
q = εσ(Ts⁴ - Tsur⁴)
where ε is the emissivity, σ is the Stefan-Boltzmann constant, Ts is the surface temperature, and Tsur is the surrounding temperature.
Heat Flux in Different Materials
The thermal conductivity of a material significantly affects the heat flux. Here is a table of thermal conductivities for some common materials:
| Material | Thermal Conductivity (W/m·K) |
|---|---|
| Copper | 401 |
| Aluminum | 237 |
| Stainless Steel | 16.2 |
| Concrete | 0.9 |
| Wood | 0.12 |
| Air | 0.024 |
Understanding the thermal conductivity of different materials is essential for designing efficient heat transfer systems. For example, materials with high thermal conductivity, such as copper and aluminum, are often used in heat exchangers and cooling systems. In contrast, materials with low thermal conductivity, like wood and air, are used for insulation.
Heat Flux in Environmental Science

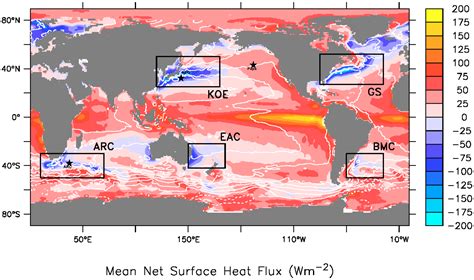

In environmental science, the flux of heat plays a crucial role in understanding climate patterns and weather systems. The heat flux between the Earth's surface and the atmosphere is a key factor in determining temperature distributions and weather phenomena. For example, the heat flux from the ocean to the atmosphere can influence the formation of hurricanes and other severe weather events.
Measuring the heat flux in environmental science often involves using remote sensing techniques, such as satellite imagery and infrared thermography. These methods allow scientists to monitor large areas and track changes in heat flux over time. By understanding the heat flux in different regions, researchers can develop more accurate climate models and predict future weather patterns.
One important aspect of heat flux in environmental science is the concept of the Earth's energy balance. The Earth receives energy from the Sun in the form of solar radiation and emits energy back into space as infrared radiation. The difference between the incoming and outgoing energy determines the Earth's temperature. The heat flux between the Earth's surface and the atmosphere is a critical component of this energy balance.
Understanding the Earth's energy balance is essential for predicting climate change and its impacts. For example, an increase in greenhouse gases can trap more heat in the atmosphere, leading to global warming. By measuring the heat flux and other components of the Earth's energy balance, scientists can assess the effects of climate change and develop strategies to mitigate its impacts.
In addition to climate science, the flux of heat is also important in hydrology, the study of water movement and distribution. The heat flux between the Earth's surface and the atmosphere can influence evaporation rates and precipitation patterns. For example, high heat flux can increase evaporation from lakes and rivers, leading to changes in water availability and quality.
Understanding the heat flux in hydrology is crucial for managing water resources and predicting water-related hazards, such as floods and droughts. By measuring the heat flux and other hydrological parameters, researchers can develop models to simulate water movement and predict future water availability.
In summary, the flux of heat is a fundamental concept in environmental science, with applications ranging from climate modeling to hydrology. By understanding and measuring the heat flux, scientists can gain insights into complex environmental processes and develop strategies to address environmental challenges.
In conclusion, the flux of heat is a critical concept in various fields, from engineering and physics to environmental science. Understanding how heat moves through different materials and systems is essential for designing efficient technologies, optimizing industrial processes, and predicting environmental changes. By measuring and calculating heat flux accurately, we can gain valuable insights into the world around us and develop innovative solutions to complex problems.
