Understanding the structure and behavior of atoms is fundamental to the study of chemistry. One of the most iconic models used to visualize atomic structure is the Bohr model. This model, proposed by Niels Bohr in 1913, provides a simplified representation of the atom, particularly useful for understanding the behavior of electrons in different energy levels. Among the elements, the Fluorine Bohr Model is particularly interesting due to its unique electronic configuration and chemical properties.
The Bohr Model: A Brief Overview
The Bohr model is a planetary model in which the negatively charged electrons orbit the positively charged nucleus in fixed circular paths called orbits or shells. Each orbit corresponds to a specific energy level, and electrons can jump between these levels by absorbing or emitting energy. This model is particularly useful for understanding the behavior of electrons in atoms with a small number of electrons, such as hydrogen and helium.
Fluorine Bohr Model: Electronic Configuration
Fluorine is the ninth element in the periodic table, with the atomic number 9. This means that a neutral fluorine atom has 9 protons and 9 electrons. The electronic configuration of fluorine can be represented as 1s22s22p5. In the Bohr model, these electrons are distributed in the following manner:
- 2 electrons in the first shell (K-shell).
- 7 electrons in the second shell (L-shell).
This configuration is crucial for understanding the chemical behavior of fluorine, as it has one electron short of a full octet in its outermost shell, making it highly reactive.
Constructing the Fluorine Bohr Model
To construct the Fluorine Bohr Model, follow these steps:
- Draw a small circle to represent the nucleus. Inside the nucleus, place 9 protons and 9 neutrons (since fluorine has an atomic mass of approximately 19).
- Draw the first electron shell (K-shell) around the nucleus. This shell can hold a maximum of 2 electrons. Place 2 electrons in this shell.
- Draw the second electron shell (L-shell) around the first shell. This shell can hold a maximum of 8 electrons. Place 7 electrons in this shell.

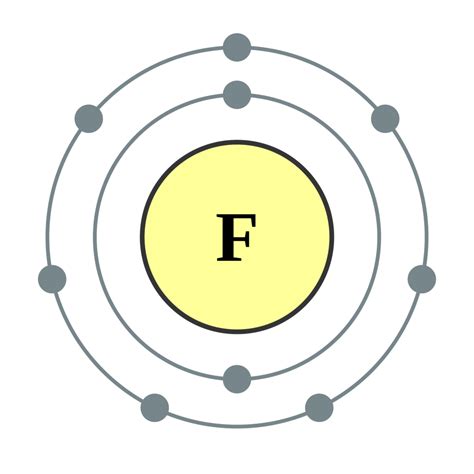

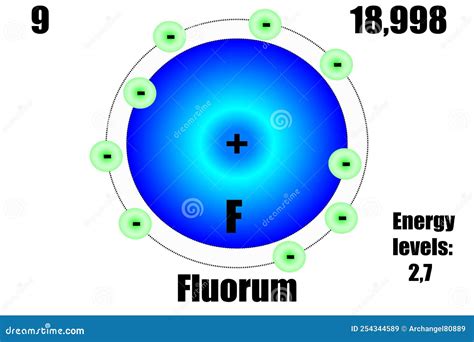

Here is a visual representation of the Fluorine Bohr Model:
Chemical Properties of Fluorine
The electronic configuration of fluorine, as depicted in the Bohr model, explains many of its chemical properties. Some key properties include:
- High Electronegativity: Fluorine is the most electronegative element, meaning it has a strong tendency to attract electrons towards itself. This is due to its small size and the high effective nuclear charge experienced by its outermost electrons.
- High Reactivity: Fluorine is highly reactive and can form compounds with almost all other elements. It readily gains an electron to complete its octet, forming the fluoride ion (F-).
- Strong Oxidizing Agent: Fluorine is a powerful oxidizing agent, capable of oxidizing other substances and gaining electrons in the process.
- Toxic and Corrosive: Fluorine is extremely toxic and corrosive. It can cause severe chemical burns and is harmful if inhaled or ingested.
Applications of Fluorine
Despite its reactivity and toxicity, fluorine has several important applications in various industries. Some of these applications include:
- Fluoropolymers: Fluorine is used to produce fluoropolymers, such as Teflon, which are known for their non-stick properties and resistance to heat and chemicals.
- Pharmaceuticals: Fluorine is used in the production of various pharmaceuticals, including anesthetics and antidepressants. The incorporation of fluorine into drug molecules can enhance their stability and bioavailability.
- Refrigerants: Fluorine compounds, such as chlorofluorocarbons (CFCs) and hydrofluorocarbons (HFCs), have been used as refrigerants. However, due to their environmental impact, many of these compounds are being phased out.
- Toothpaste: Fluoride, a compound of fluorine, is added to toothpaste to help prevent tooth decay by strengthening tooth enamel.
Safety Precautions When Handling Fluorine
Due to its highly reactive and toxic nature, handling fluorine requires strict safety precautions. Some important safety measures include:
- Wear appropriate personal protective equipment (PPE), including gloves, safety glasses, and lab coats.
- Handle fluorine in a well-ventilated area or under a fume hood to prevent inhalation.
- Store fluorine in a cool, dry place away from incompatible substances.
- In case of accidental exposure, seek immediate medical attention and follow proper decontamination procedures.
🛑 Note: Fluorine should only be handled by trained professionals in a controlled environment. Improper handling can lead to severe injuries and health hazards.
Fluorine in the Periodic Table
Fluorine belongs to Group 17 of the periodic table, also known as the halogens. The halogens are a group of highly reactive nonmetal elements that include fluorine, chlorine, bromine, iodine, and astatine. Fluorine is the lightest and most reactive of all the halogens. Its position in the periodic table is crucial for understanding its chemical behavior and reactivity.
Comparing Fluorine with Other Halogens
To better understand the unique properties of fluorine, it is helpful to compare it with other halogens. The following table highlights some key differences:
| Property | Fluorine | Chlorine | Bromine | Iodine |
|---|---|---|---|---|
| Atomic Number | 9 | 17 | 35 | 53 |
| Electronegativity | 3.98 | 3.16 | 2.96 | 2.66 |
| Melting Point (°C) | -219.62 | -101.5 | -7.2 | 113.7 |
| Boiling Point (°C) | -188.12 | -34.04 | 58.8 | 184.35 |
| State at Room Temperature | Gas | Gas | Liquid | Solid |
As seen in the table, fluorine has the highest electronegativity and the lowest melting and boiling points among the halogens. These properties make it unique and highly reactive.
Fluorine Compounds
Fluorine forms a variety of compounds with other elements. Some of the most common fluorine compounds include:
- Hydrogen Fluoride (HF): A colorless gas that is highly soluble in water, forming hydrofluoric acid. HF is used in the production of aluminum and in the etching of glass.
- Sodium Fluoride (NaF): A white crystalline solid used in water fluoridation to prevent tooth decay and in the production of aluminum.
- Uranium Hexafluoride (UF6): A compound used in the enrichment of uranium for nuclear fuel.
- Polytetrafluoroethylene (PTFE): A synthetic fluoropolymer known by the brand name Teflon. It is used in non-stick cookware, electrical insulation, and various industrial applications.
These compounds highlight the versatility of fluorine in various industrial and chemical processes.
In summary, the Fluorine Bohr Model provides a clear visualization of the electronic structure of fluorine, which is crucial for understanding its chemical properties and behavior. Fluorine’s high reactivity, electronegativity, and unique properties make it an essential element in various industries, from pharmaceuticals to materials science. However, its handling requires strict safety precautions due to its toxic and corrosive nature. By understanding the Bohr model and the properties of fluorine, we can appreciate its significance in the world of chemistry and its applications in modern technology.
