Building or renovating a home involves numerous critical decisions, one of which is determining the appropriate floor joist size. Floor joists are the horizontal structural members that support the floor and transfer the load to the foundation. Choosing the right size is crucial for ensuring the stability, safety, and longevity of your structure. This guide will walk you through the essential factors to consider when selecting the floor joist size for your project.
Understanding Floor Joists

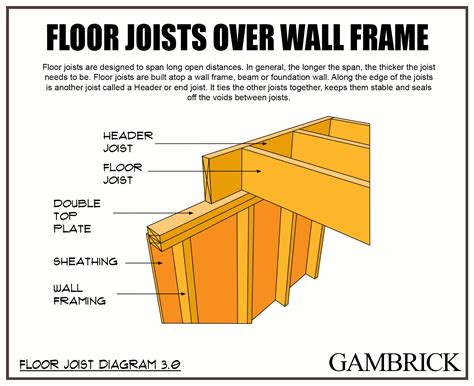

Floor joists are typically made of wood or engineered wood products like laminated veneer lumber (LVL) or oriented strand board (OSB). They are spaced at regular intervals, usually 12, 16, or 24 inches on center, and run perpendicular to the floor beams. The primary function of floor joists is to support the weight of the floor and any loads placed on it, such as furniture or people.
Factors Affecting Floor Joist Size
Several factors influence the selection of the floor joist size. Understanding these factors will help you make an informed decision.
Span Length
The span length is the distance between the supports of the joist. Longer spans require larger floor joist sizes to prevent sagging and ensure structural integrity. For example, a 2x8 joist might be sufficient for a span of 10 feet, but a 2x10 or even a 2x12 joist might be necessary for a span of 14 feet.
Load Requirements
The load requirements refer to the weight that the floor will need to support. This includes both the dead load (the weight of the floor itself) and the live load (the weight of people, furniture, and other movable objects). Residential floors typically require a live load of 30-40 pounds per square foot, while commercial floors may require higher loads.
Joist Spacing
The spacing of the joists also affects the floor joist size. Closer spacing allows for smaller joists, as the load is distributed over more members. Common joist spacings are 12, 16, and 24 inches on center. For example, 2x10 joists spaced 16 inches on center can span about 14 feet, while the same joists spaced 12 inches on center can span about 16 feet.
Joist Material
The type of material used for the joists can also impact the floor joist size. Engineered wood products like LVL and OSB are often stronger and more consistent than traditional lumber, allowing for longer spans or smaller sizes. However, they can be more expensive.
Building Codes and Regulations
Local building codes and regulations must be followed when selecting the floor joist size. These codes ensure that the structure is safe and meets minimum standards. It’s essential to consult with a structural engineer or building inspector to ensure compliance.
Common Floor Joist Sizes
Here are some common floor joist sizes and their typical applications:
| Joist Size | Maximum Span (feet) | Typical Use |
|---|---|---|
| 2x6 | 8-10 | Basement floors, attic floors |
| 2x8 | 10-12 | Residential floors, decks |
| 2x10 | 12-14 | Residential floors, decks |
| 2x12 | 14-16 | Residential floors, decks, commercial floors |
📝 Note: These are general guidelines and may vary based on specific project requirements and local building codes.
Calculating Floor Joist Size
To calculate the appropriate floor joist size, you can use the following steps:
- Determine the span length of the joists.
- Estimate the live and dead loads that the floor will need to support.
- Choose a joist spacing (12, 16, or 24 inches on center).
- Consult a joist span table or use structural engineering software to select the appropriate floor joist size based on the above factors.
- Verify that the selected floor joist size complies with local building codes and regulations.
Joist span tables are available from various sources, including lumber manufacturers and building code publications. These tables provide the maximum allowable span for different floor joist sizes based on the load and spacing.
📝 Note: It's always a good idea to consult with a structural engineer or building inspector to ensure that your calculations are accurate and that your project complies with all relevant codes and regulations.
Engineered Wood Products
Engineered wood products are becoming increasingly popular for floor joists due to their strength, consistency, and sustainability. Some common engineered wood products used for floor joists include:
- Laminated Veneer Lumber (LVL): LVL is made by bonding thin layers of wood veneer together with adhesives. It is stronger and more consistent than traditional lumber, allowing for longer spans or smaller sizes.
- Oriented Strand Board (OSB): OSB is made from compressed layers of wood strands. It is often used for subflooring and can also be used for floor joists in some applications.
- I-Joists: I-joists are engineered wood products that resemble an I-beam in cross-section. They consist of two flanges made of solid sawn lumber or LVL, connected by a web made of OSB or plywood. I-joists are strong, lightweight, and dimensionally stable.
When using engineered wood products, it's essential to follow the manufacturer's guidelines for installation and spacing. These products may have different span ratings and load capacities than traditional lumber.
Installing Floor Joists
Once you have selected the appropriate floor joist size, it’s time to install them. Here are the basic steps for installing floor joists:
- Layout the floor joists on the subfloor or foundation, ensuring that they are spaced correctly and square to the walls.
- Attach the joists to the rim joists or foundation using nails or screws. Ensure that the joists are securely fastened and level.
- Install blocking or bridging between the joists to prevent them from twisting or rotating. Blocking should be installed at mid-span and at the ends of the joists.
- Install subflooring or finish flooring on top of the joists, following the manufacturer's guidelines for spacing and fastening.
It's essential to follow proper installation techniques to ensure the structural integrity of the floor. Improper installation can lead to sagging, squeaking, or even structural failure.
📝 Note: Always wear appropriate safety gear, including gloves, safety glasses, and ear protection, when installing floor joists.
Maintaining Floor Joists
Maintaining your floor joists is crucial for ensuring the longevity and safety of your structure. Here are some tips for maintaining floor joists:
- Inspect your floor joists regularly for signs of damage, such as cracks, rot, or insect infestation.
- Keep the area under your floor joists dry and well-ventilated to prevent moisture buildup and rot.
- Address any plumbing leaks or water damage promptly to prevent further damage to the joists.
- Avoid storing heavy objects or equipment on the floor joists, as this can cause them to sag or fail over time.
By following these maintenance tips, you can help ensure that your floor joists remain strong and stable for years to come.
In summary, selecting the appropriate floor joist size is a critical aspect of building or renovating a home. By considering factors such as span length, load requirements, joist spacing, and material type, you can ensure that your floor is safe, stable, and long-lasting. Always consult with a structural engineer or building inspector to ensure that your project complies with all relevant codes and regulations. With proper selection, installation, and maintenance, your floor joists will provide a solid foundation for your home for years to come.
