In the realm of digital electronics, the Flip Flop Circuit stands as a fundamental building block, essential for the design and functionality of various digital systems. These circuits are sequential logic circuits that store binary data and are crucial for applications ranging from simple counters to complex microprocessors. Understanding the intricacies of Flip Flop Circuits is vital for anyone delving into the world of digital design.
Understanding Flip Flop Circuits
A Flip Flop Circuit is a bistable multivibrator circuit that can store one bit of data. It has two stable states and can change its state based on the input signals. The basic types of Flip Flop Circuits include SR (Set-Reset), D (Data or Delay), JK, and T (Toggle) flip-flops. Each type has its unique characteristics and applications.
Types of Flip Flop Circuits
Let's delve into the different types of Flip Flop Circuits and their functionalities:
SR Flip Flop
The SR (Set-Reset) flip-flop is the simplest type of Flip Flop Circuit. It has two inputs: S (Set) and R (Reset). When the S input is high and the R input is low, the output Q is set to 1. Conversely, when the S input is low and the R input is high, the output Q is reset to 0. If both inputs are low, the output remains unchanged. However, if both inputs are high, the output is indeterminate.
| S | R | Q_next |
|---|---|---|
| 0 | 0 | Q |
| 0 | 1 | 0 |
| 1 | 0 | 1 |
| 1 | 1 | Indeterminate |
💡 Note: The SR flip-flop is not commonly used in practical applications due to its indeterminate state when both inputs are high.
D Flip Flop
The D (Data or Delay) flip-flop is widely used in digital circuits. It has a single data input (D) and a clock input. The output Q takes the value of the D input at the moment of the clock's rising edge. This type of Flip Flop Circuit is ideal for synchronizing data with a clock signal.
| D | Clock | Q_next |
|---|---|---|
| 0 | Rising Edge | 0 |
| 1 | Rising Edge | 1 |

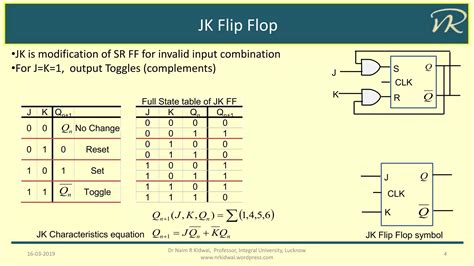

JK Flip Flop
The JK flip-flop is an enhanced version of the SR flip-flop. It has two inputs: J (Set) and K (Reset). The output Q changes state based on the values of J and K at the clock's rising edge. If J = 1 and K = 0, Q is set to 1. If J = 0 and K = 1, Q is reset to 0. If both J and K are 1, the output toggles. If both are 0, the output remains unchanged.
| J | K | Q_next |
|---|---|---|
| 0 | 0 | Q |
| 0 | 1 | 0 |
| 1 | 0 | 1 |
| 1 | 1 | Q' |
💡 Note: The JK flip-flop is versatile and widely used in counters and shift registers.
T Flip Flop
The T (Toggle) flip-flop toggles its output state with each clock pulse when the T input is high. If the T input is low, the output remains unchanged. This type of Flip Flop Circuit is useful in applications where a simple toggle function is required.
| T | Clock | Q_next |
|---|---|---|
| 0 | Rising Edge | Q |
| 1 | Rising Edge | Q' |
Applications of Flip Flop Circuits
Flip Flop Circuits are integral to various digital systems. Some of the key applications include:
- Counters: Flip-flops are used to design counters that count the number of clock pulses.
- Shift Registers: These are used to store and shift data bits sequentially.
- Memory Elements: Flip-flops serve as basic memory elements in digital systems.
- Sequential Circuits: They are used in the design of sequential circuits like state machines.
- Data Latches: Flip-flops can be used to latch data temporarily.
Designing a Simple Flip Flop Circuit
Designing a Flip Flop Circuit involves understanding the basic logic gates and their combinations. Let's consider the design of a simple SR flip-flop using NAND gates.
An SR flip-flop can be constructed using two NAND gates configured as follows:
The truth table for this circuit is as follows:
| S | R | Q_next |
|---|---|---|
| 0 | 0 | Q |
| 0 | 1 | 0 |
| 1 | 0 | 1 |
| 1 | 1 | Indeterminate |
💡 Note: Ensure that the S and R inputs are never high simultaneously to avoid the indeterminate state.
Advanced Flip Flop Circuits
Beyond the basic types, there are advanced Flip Flop Circuits designed for specific applications. These include:
- Master-Slave Flip Flop: This type consists of two flip-flops, one acting as the master and the other as the slave. It ensures that the output changes only at the clock's rising edge, reducing glitches.
- Edge-Triggered Flip Flop: These flip-flops change state only at the clock's edge (rising or falling), making them more reliable in synchronous systems.
- Pulse-Triggered Flip Flop: These flip-flops change state in response to a pulse, making them useful in asynchronous systems.
Each of these advanced Flip Flop Circuits has its unique advantages and is chosen based on the specific requirements of the digital system being designed.
In conclusion, Flip Flop Circuits are the backbone of digital electronics, providing the essential functionality of data storage and synchronization. Understanding the different types of flip-flops and their applications is crucial for anyone involved in digital design. From simple SR flip-flops to advanced edge-triggered flip-flops, each type plays a vital role in the functioning of modern digital systems. Whether used in counters, shift registers, or memory elements, Flip Flop Circuits continue to be indispensable in the ever-evolving field of digital electronics.
