Electrical panels are the backbone of any home's electrical system, distributing power to various circuits throughout the house. However, like any other component, they can malfunction or become outdated, necessitating a fix electrical panel project. Whether you're dealing with a tripping breaker, flickering lights, or an outdated panel, understanding how to fix or upgrade your electrical panel is crucial for maintaining a safe and efficient home.
Understanding Your Electrical Panel
Before diving into the fix electrical panel process, it's essential to understand the basics of your electrical panel. The panel, also known as a breaker box, is typically located in the basement, garage, or a utility closet. It houses circuit breakers that protect your home's wiring from overloads and short circuits.
Modern electrical panels are designed to handle specific amperage loads, usually 100, 150, or 200 amps. Older homes may have panels rated for 60 or 100 amps, which might not be sufficient for today's electrical demands. If you're experiencing frequent tripped breakers or need to power new appliances, it might be time to upgrade your panel.
Signs You Need to Fix Electrical Panel
Recognizing the signs that your electrical panel needs attention is the first step in ensuring your home's electrical safety. Here are some common indicators:
- Frequent Tripped Breakers: If your circuit breakers trip frequently, it could indicate an overloaded circuit or a faulty breaker.
- Flickering or Dimming Lights: Lights that flicker or dim when you use other appliances may signal a problem with your panel or wiring.
- Burning Smell: A burning smell near your electrical panel is a serious warning sign of overheating or a potential fire hazard.
- Hot to the Touch: If your panel feels hot, it could be a sign of overheating, which requires immediate attention.
- Outdated Panel: Older panels, especially those with fuses instead of circuit breakers, may not meet modern safety standards and should be upgraded.
Safety First: Preparing for the Fix Electrical Panel Project
Before you begin any work on your electrical panel, safety should be your top priority. Electrical work can be dangerous, so it's crucial to follow these safety precautions:
- Turn Off the Power: Always turn off the main power supply to your home at the panel before starting any work.
- Use Proper Tools: Ensure you have the right tools for the job, including insulated screwdrivers, wire strippers, and a voltage tester.
- Wear Protective Gear: Use safety glasses and insulated gloves to protect yourself from electrical hazards.
- Follow Local Codes: Make sure your work complies with local electrical codes and regulations.
If you're unsure about any aspect of the process, it's best to hire a licensed electrician. Electrical work can be complex and dangerous, and professional help ensures the job is done safely and correctly.
Step-by-Step Guide to Fix Electrical Panel
If you've determined that your electrical panel needs fixing or upgrading, follow these steps to complete the project safely and effectively.
Assess the Panel
Begin by assessing the condition of your electrical panel. Check for any visible signs of damage, such as corrosion, burnt marks, or loose wires. If you notice any of these issues, it's a clear indication that your panel needs attention.
Gather Necessary Tools and Materials
Before you start, gather all the tools and materials you'll need for the job. This may include:
- New circuit breakers (if replacing old ones)
- Wire strippers
- Insulated screwdrivers
- Voltage tester
- Safety glasses and gloves
- New electrical panel (if upgrading)
Turn Off the Power

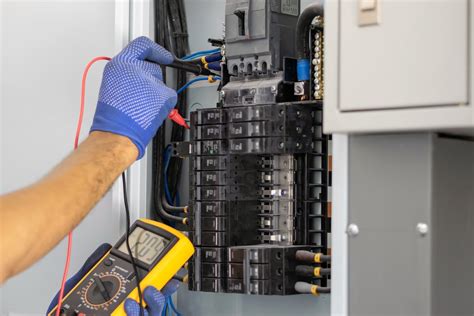

Locate the main circuit breaker in your panel and turn it off. This will cut power to the entire house, so make sure to inform all household members. Use a voltage tester to ensure that the power is off before proceeding.

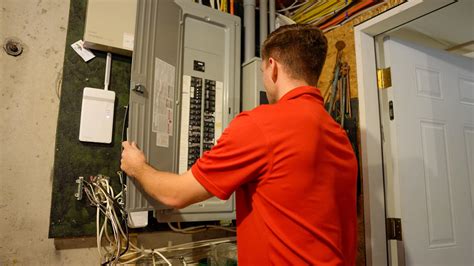

Remove the Panel Cover
Carefully remove the cover of the electrical panel to access the circuit breakers and wiring. Be cautious not to touch any live wires or components.

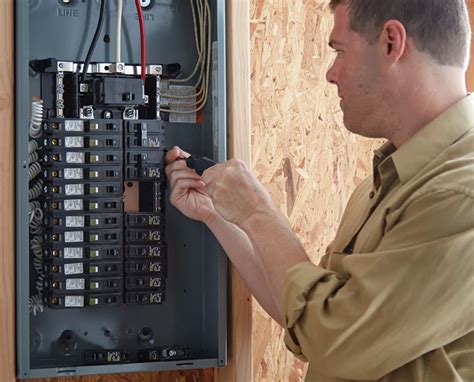

Replace Faulty Breakers
If you're replacing faulty circuit breakers, follow these steps:
- Identify the faulty breaker by checking for signs of damage or wear.
- Remove the faulty breaker by pulling it straight out of the panel.
- Install the new breaker by aligning it with the bus bar and pushing it firmly into place.
Upgrade the Electrical Panel
If you're upgrading your electrical panel, follow these steps:
- Disconnect all wires from the old panel, labeling them for easy reattachment.
- Remove the old panel from the wall, ensuring that all screws and mounting hardware are removed.
- Install the new panel, securing it to the wall with the provided mounting hardware.
- Reattach the labeled wires to the corresponding breakers in the new panel.
- Secure the new panel cover and restore power by turning on the main circuit breaker.
🛑 Note: If you're upgrading your panel, ensure that the new panel has the correct amperage rating for your home's electrical needs. Consult with a licensed electrician if you're unsure about the appropriate rating.
Common Issues and Troubleshooting
Even after fixing or upgrading your electrical panel, you may encounter some common issues. Here are some troubleshooting tips to help you address these problems:
Tripping Breakers
If your breakers continue to trip after replacement, it could indicate an overloaded circuit or a short circuit. Check the following:
- Ensure that no single circuit is overloaded with too many devices.
- Look for any signs of short circuits, such as sparking or burnt wires.
- Consider redistributing the load across multiple circuits.
Flickering Lights
Flickering lights can be caused by loose connections or faulty wiring. Check the following:
- Tighten any loose connections in the panel.
- Inspect the wiring for any signs of damage or wear.
- Ensure that the light fixtures are properly secured and wired.
Overheating Panel
If your panel feels hot to the touch, it could be a sign of overheating. Check the following:
- Ensure that the panel is properly ventilated and not obstructed by debris or clutter.
- Inspect the wiring for any signs of overheating or damage.
- Consider upgrading to a larger panel if your electrical demands have increased.
Maintaining Your Electrical Panel
Regular maintenance of your electrical panel is essential to ensure its longevity and safety. Here are some tips for maintaining your panel:
- Inspect Regularly: Periodically inspect your panel for any signs of damage, corrosion, or wear.
- Keep It Clean: Ensure that the panel is free from dust, debris, and clutter to maintain proper ventilation.
- Test Breakers: Regularly test your circuit breakers to ensure they are functioning correctly.
- Update as Needed: If your electrical demands increase, consider upgrading your panel to meet the new requirements.
By following these maintenance tips, you can extend the life of your electrical panel and ensure the safety of your home's electrical system.
Here is a table that summarizes the key points to consider when fixing or upgrading your electrical panel:
| Consideration | Action |
|---|---|
| Safety Precautions | Turn off power, use proper tools, wear protective gear, follow local codes |
| Assessing the Panel | Check for visible damage, corrosion, burnt marks, loose wires |
| Replacing Breakers | Identify faulty breaker, remove, install new breaker |
| Upgrading the Panel | Disconnect wires, remove old panel, install new panel, reattach wires |
| Maintenance | Regular inspection, keep clean, test breakers, update as needed |
In conclusion, addressing issues with your electrical panel is crucial for maintaining a safe and efficient home. Whether you’re replacing faulty breakers or upgrading to a new panel, following the steps outlined in this guide will help you complete the project safely and effectively. Regular maintenance and prompt attention to any issues will ensure that your electrical panel continues to serve your home reliably for years to come.
