Fire Alarm System Installation

Ensuring the safety of your property and its occupants is paramount, and one of the most critical systems to achieve this is a reliable fire alarm system. A well-designed and properly installed fire alarm system can detect fires early, alert occupants, and notify emergency services, significantly reducing the risk of property damage and loss of life. This guide will walk you through the essential aspects of fire alarm system installation, from understanding the different types of systems to the installation process and maintenance tips.

Table of Contents

Understanding Fire Alarm Systems

A fire alarm system is a network of devices designed to detect and alert occupants of a fire. These systems can range from simple, single-station alarms to complex, multi-zone systems that cover large buildings. The primary components of a fire alarm system include:

Control Panel: The brain of the system, which monitors and controls all the connected devices.
Initiating Devices: Devices that detect fire, such as smoke detectors, heat detectors, and manual call points.
Notification Devices: Devices that alert occupants of a fire, such as sirens, strobe lights, and voice evacuation systems.
Power Supply: The system's power source, which can be a battery, generator, or connection to the main power supply.

Fire alarm systems can be categorized into several types based on their complexity and functionality:

Conventional Fire Alarm Systems: These are the simplest and most cost-effective systems. They divide the protected area into zones, with each zone connected to the control panel. If a detector in a zone is activated, the control panel indicates the zone but not the exact location of the fire.
Addressable Fire Alarm Systems: These systems provide more precise information. Each device in the system has a unique address, allowing the control panel to identify the exact location of the activated device. This makes it easier for emergency responders to locate the fire.
Analog Addressable Fire Alarm Systems: These systems offer even more detailed information. They can monitor the environmental conditions in real-time and provide early warnings of potential fires. They are often used in large, complex buildings like hospitals and airports.

Planning Your Fire Alarm System Installation

Before installing a fire alarm system, it's crucial to plan carefully. This involves assessing the building's layout, identifying potential fire hazards, and determining the best locations for detectors and notification devices. Here are the key steps to consider:

Assess the Building Layout: Understand the building's structure, including the number of floors, room sizes, and potential escape routes. This will help you determine the number and type of detectors needed.
Identify Potential Fire Hazards: Look for areas with high fire risk, such as kitchens, laboratories, and storage rooms. These areas may require additional detectors or specialized fire suppression systems.
Determine Detector Locations: Place detectors in strategic locations to ensure early detection. Common places include ceilings, walls, and near potential fire sources. Avoid placing detectors near air vents or drafty areas, as this can affect their performance.
Choose Notification Devices: Select notification devices that are appropriate for the building's occupants. For example, buildings with hearing-impaired occupants may require strobe lights in addition to sirens.
Plan for Power Supply: Ensure the system has a reliable power supply. This may include a backup battery or generator to keep the system operational during power outages.

📝 Note: Always consult local fire codes and regulations to ensure your fire alarm system meets all legal requirements. Failure to comply can result in fines or legal action.

Installing the Fire Alarm System

Once you have planned your fire alarm system, the next step is installation. This process involves several key steps, from setting up the control panel to connecting all the devices. Here's a detailed guide to help you through the process:

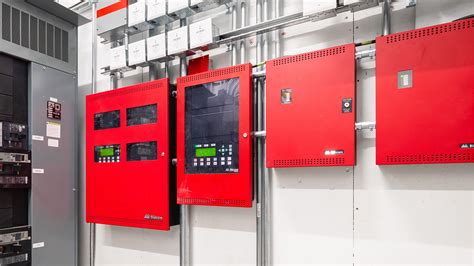

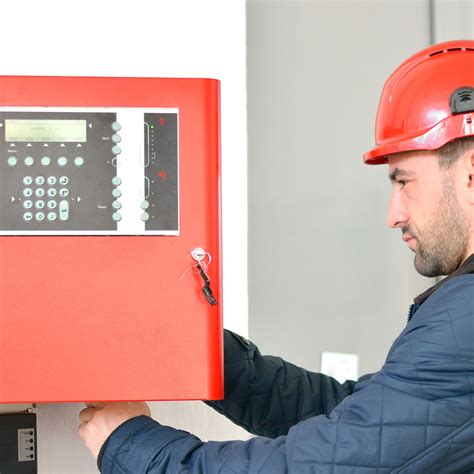

Setting Up the Control Panel

The control panel is the heart of your fire alarm system. It monitors all connected devices and activates the notification system in case of a fire. Here's how to set it up:

Choose a Location: Place the control panel in a secure, easily accessible location. It should be away from potential fire hazards and within reach of emergency responders.
Mount the Panel: Use the provided mounting brackets to secure the control panel to the wall. Ensure it is level and firmly attached.
Connect Power Supply: Connect the control panel to the main power supply and the backup power source. Ensure all connections are secure and follow the manufacturer's instructions.
Program the Panel: Use the control panel's interface to program the system. This includes setting up zones, configuring notification devices, and entering any necessary codes or passwords.

Installing Initiating Devices

Initiating devices are the sensors that detect fire. These include smoke detectors, heat detectors, and manual call points. Here's how to install them:

Choose the Right Detectors: Select detectors based on the specific needs of each area. For example, use smoke detectors in living spaces and heat detectors in kitchens.
Mount the Detectors: Follow the manufacturer's instructions to mount the detectors. Ensure they are securely attached and positioned correctly.
Connect the Detectors: Connect each detector to the control panel using the provided wiring. Ensure all connections are secure and follow the wiring diagram provided by the manufacturer.
Test the Detectors: Once installed, test each detector to ensure it is functioning correctly. Use the control panel to activate each detector and verify that it triggers the alarm.

Installing Notification Devices

Notification devices alert occupants of a fire. These include sirens, strobe lights, and voice evacuation systems. Here's how to install them:

Choose the Right Devices: Select notification devices based on the building's occupancy and local regulations. For example, buildings with hearing-impaired occupants may require strobe lights.
Mount the Devices: Follow the manufacturer's instructions to mount the notification devices. Ensure they are securely attached and positioned correctly.
Connect the Devices: Connect each notification device to the control panel using the provided wiring. Ensure all connections are secure and follow the wiring diagram provided by the manufacturer.
Test the Devices: Once installed, test each notification device to ensure it is functioning correctly. Use the control panel to activate each device and verify that it triggers the alarm.

📝 Note: Always follow the manufacturer's instructions for installation and testing. Improper installation can lead to false alarms or failure to detect a fire.

Maintaining Your Fire Alarm System

Regular maintenance is crucial to ensure your fire alarm system remains functional and reliable. This includes routine inspections, testing, and cleaning. Here are some key maintenance tips:

Regular Inspections: Conduct regular inspections of the entire fire alarm system. Check for any signs of damage, wear, or tampering. Ensure all devices are securely mounted and connected.
Testing: Test the system regularly to ensure all components are functioning correctly. This includes activating each detector and notification device to verify they trigger the alarm. Keep a log of all tests and maintenance activities.
Cleaning: Clean the detectors and notification devices regularly to remove dust, dirt, and debris. This ensures they remain sensitive and reliable. Use a soft brush or compressed air to clean the detectors.
Battery Replacement: Replace the batteries in the control panel and detectors as recommended by the manufacturer. This ensures the system remains operational during power outages.
Professional Maintenance: Schedule professional maintenance at least once a year. A certified technician can perform a thorough inspection and testing of the entire system, ensuring it meets all safety standards.

📝 Note: Always follow the manufacturer's recommendations for maintenance and testing. Regular maintenance is essential to ensure the system's reliability and effectiveness.

Troubleshooting Common Issues

Even with regular maintenance, issues can arise with your fire alarm system. Here are some common problems and their solutions:

False Alarms: False alarms can be caused by dust, dirt, or smoke from cooking. Regular cleaning and proper placement of detectors can help prevent false alarms. If false alarms persist, consider replacing the detectors.
System Failures: System failures can occur due to power outages, faulty wiring, or damaged components. Ensure the system has a reliable backup power source and conduct regular inspections to identify and fix any issues.
Communication Issues: Communication issues between the control panel and the notification devices can be caused by faulty wiring or damaged components. Check all connections and replace any damaged components.
Detector Malfunctions: Detector malfunctions can be caused by dust, dirt, or damage. Regular cleaning and inspection can help prevent malfunctions. If a detector malfunctions, replace it immediately.

📝 Note: If you encounter any issues with your fire alarm system, consult the manufacturer's troubleshooting guide or contact a certified technician for assistance.

Fire Alarm System Installation Costs

The cost of fire alarm system installation can vary depending on several factors, including the size of the building, the type of system, and the complexity of the installation. Here's a breakdown of the costs you can expect:

Component	Cost Range
Control Panel	$500 - $2,000
Smoke Detectors	$20 - $100 each
Heat Detectors	$20 - $80 each
Manual Call Points	$30 - $100 each
Sirens	$50 - $200 each
Strobe Lights	$50 - $150 each
Voice Evacuation Systems	$1,000 - $5,000
Installation	$500 - $5,000
Maintenance	$200 - $1,000 per year

These costs are approximate and can vary based on your location, the specific components you choose, and the complexity of the installation. It's always a good idea to get multiple quotes from certified installers to ensure you get the best price.

📝 Note: While cost is an important consideration, it's crucial not to compromise on the quality and reliability of your fire alarm system. Investing in a high-quality system can save lives and property in the event of a fire.

Fire Alarm System Installation Regulations

Fire alarm system installation is subject to various regulations and standards to ensure safety and compliance. These regulations can vary depending on your location, so it's essential to consult local fire codes and regulations. Here are some general guidelines to follow:

National Fire Protection Association (NFPA) Standards: The NFPA provides guidelines and standards for fire alarm system installation. These standards cover everything from system design to installation and maintenance.
Local Fire Codes: Local fire codes may have specific requirements for fire alarm system installation. These codes can vary by city or county, so it's essential to consult your local fire department for guidance.
Building Codes: Building codes may also have requirements for fire alarm system installation. These codes cover the structural and safety aspects of the building and may include specific guidelines for fire alarm systems.
Certification and Licensing: Ensure that the installer is certified and licensed to perform fire alarm system installation. This ensures that the installation is done correctly and meets all safety standards.

📝 Note: Always consult local regulations and standards to ensure your fire alarm system installation is compliant. Failure to comply can result in fines or legal action.

Fire Alarm System Installation for Different Building Types

Different types of buildings have unique fire alarm system installation requirements. Here's a look at some common building types and their specific needs:

Residential Buildings

Residential buildings, such as single-family homes and apartment complexes, have specific fire alarm system installation requirements. These buildings typically require smoke detectors in each bedroom, outside sleeping areas, and on each level of the home. Heat detectors may be used in kitchens and garages. Notification devices, such as sirens, should be placed in areas where occupants can hear them clearly.

Commercial Buildings

Commercial buildings, such as offices and retail stores, have more complex fire alarm system installation requirements. These buildings typically require a combination of smoke and heat detectors, placed strategically throughout the building. Notification devices, such as sirens and strobe lights, should be placed in areas where occupants can see and hear them clearly. Addressable fire alarm systems are often used in commercial buildings to provide more precise information about the location of a fire.

Industrial Buildings

Industrial buildings, such as factories and warehouses, have unique fire alarm system installation requirements. These buildings typically require heat detectors, as smoke detectors can be triggered by dust and other particles. Notification devices, such as sirens and strobe lights, should be placed in areas where workers can see and hear them clearly. Addressable fire alarm systems are often used in industrial buildings to provide more precise information about the location of a fire.

Educational Institutions

Educational institutions, such as schools and universities, have specific fire alarm system installation requirements. These buildings typically require a combination of smoke and heat detectors, placed strategically throughout the building. Notification devices, such as sirens and strobe lights, should be placed in areas where students and staff can see and hear them clearly. Voice evacuation systems are often used in educational institutions to provide clear instructions during an emergency.

📝 Note: Always consult local regulations and standards to ensure your fire alarm system installation meets the specific needs of your building type.

Fire Alarm System Installation Best Practices

To ensure the effectiveness and reliability of your fire alarm system, follow these best practices during installation:

Use High-Quality Components: Invest in high-quality components from reputable manufacturers. This ensures the system's reliability and longevity.
Follow Manufacturer's Instructions: Always follow the manufacturer's instructions for installation and testing. This ensures the system is installed correctly and meets all safety standards.
Conduct Regular Inspections: Conduct regular inspections of the entire fire alarm system. Check for any signs of damage, wear, or tampering. Ensure all devices are securely mounted and connected.
Test the System Regularly: Test the system regularly to ensure all components are functioning correctly. This includes activating each detector and notification device to verify they trigger the alarm. Keep a log of all tests and maintenance activities.
Clean the System Regularly: Clean the detectors and notification devices regularly to remove dust, dirt, and debris. This ensures they remain sensitive and reliable. Use a soft brush or compressed air to clean the detectors.
Replace Batteries Regularly: Replace the batteries in the control panel and detectors as recommended by the manufacturer. This ensures the system remains operational during power outages.
Schedule Professional Maintenance: Schedule professional maintenance at least once a year. A certified technician can perform a thorough inspection and testing of the entire system, ensuring it meets all safety standards.

📝 Note: Following these best practices ensures the reliability and effectiveness of your fire alarm system, providing better protection for your property and its occupants.

Fire Alarm System Installation for Specific Needs

Some buildings have specific needs that require customized fire alarm system installation. Here are some examples:

Buildings with Hearing-Impaired Occupants

Buildings with hearing-impaired occupants require notification devices that can alert them to a fire. Strobe lights are often used in addition to sirens to provide visual alerts. These strobe lights should be placed in areas where occupants can see them clearly, such as near beds and workstations.

Buildings with Visually-Impaired Occupants

Buildings with visually-impaired occupants require notification devices that can alert them to a fire. Voice evacuation systems are often used to provide clear, spoken instructions during an emergency. These systems should be integrated with the fire alarm system to ensure they activate automatically in case of a fire.

Buildings with High Fire Risk

Buildings with high fire risk, such as laboratories and chemical storage areas, require specialized fire alarm systems. These systems may include additional detectors, such as flame detectors, and specialized fire suppression systems. The fire alarm system should be designed to detect and respond to fires quickly, minimizing the risk of property damage and loss of life.

📝 Note: Always consult with a certified technician to ensure your fire alarm system meets the specific needs of your building and its occupants.

Fire Alarm System Installation and Integration with Other Systems

Fire alarm systems can be integrated with other building systems to enhance safety and efficiency. Here are some examples of integration:

Integration with Fire Suppression Systems

Fire alarm systems can be integrated with fire suppression systems, such as sprinklers and fire extinguishers. This integration ensures that the suppression system activates automatically in case of a fire, providing immediate response and minimizing property damage.

Integration with Security Systems

Fire alarm systems can be integrated with security systems, such as CCTV and access control. This integration allows for better monitoring and response to fires, as security personnel can quickly identify the location of the fire and take appropriate action.
