Building or renovating a home often involves working with the roof structure, and one of the critical measurements you need to determine is the Find Rafter Length. Rafters are the sloped beams that support the roof deck and transfer the weight of the roof to the walls. Accurately calculating the Find Rafter Length is essential for ensuring the structural integrity and stability of your roof. This guide will walk you through the process of finding the rafter length, including the necessary tools, formulas, and steps involved.
Understanding Rafters and Their Importance
Rafters are the backbone of your roof structure. They provide the framework that supports the roof deck, which in turn supports the roofing material. The length of the rafters is crucial because it determines the slope and pitch of the roof, which affects both the aesthetics and functionality of the roof. A properly calculated Find Rafter Length ensures that the roof can withstand various weather conditions and provides adequate support for the roofing materials.
Tools and Materials Needed
Before you begin, gather the following tools and materials:
- Tape measure
- Calculator
- Pencil and paper
- Level
- Ladder
- Safety gear (gloves, safety glasses, hard hat)
Measuring the Roof Pitch
The first step in Find Rafter Length is to determine the roof pitch. The pitch is the angle of the roof, typically expressed as a ratio of the rise to the run. Here’s how to measure it:
- Measure the vertical distance from the top of the ridge to the top of the wall plate. This is the rise.
- Measure the horizontal distance from the edge of the roof to the wall. This is the run.
- Calculate the pitch by dividing the rise by the run. For example, if the rise is 6 inches and the run is 12 inches, the pitch is 6⁄12 or 1⁄2.
Calculating the Rafter Length

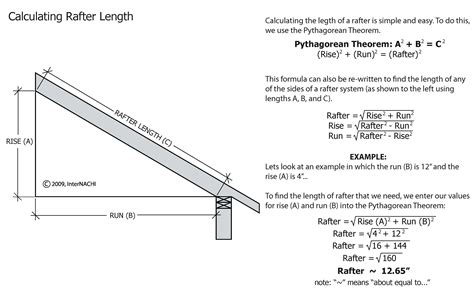

Once you have the pitch, you can calculate the Find Rafter Length using the Pythagorean theorem. The Pythagorean theorem states that in a right-angled triangle, the square of the length of the hypotenuse (the side opposite the right angle) is equal to the sum of the squares of the lengths of the other two sides. For a rafter, the hypotenuse is the rafter length, one side is the rise, and the other side is the run.
The formula to calculate the rafter length (L) is:
L = √(rise² + run²)
Here’s a step-by-step guide to calculating the rafter length:
- Measure the rise and run as described above.
- Square the rise and the run.
- Add the squared values together.
- Take the square root of the sum to find the rafter length.
For example, if the rise is 6 inches and the run is 12 inches:
L = √(6² + 12²) = √(36 + 144) = √180 ≈ 13.42 inches
Adjusting for Overhang
Most roofs have an overhang, which is the portion of the rafter that extends beyond the wall. To account for the overhang, you need to add it to the run before calculating the rafter length. Here’s how:
- Measure the desired overhang.
- Add the overhang to the run.
- Recalculate the rafter length using the new run value.
For example, if the overhang is 12 inches and the original run is 12 inches, the new run is 24 inches. Using the same rise of 6 inches:
L = √(6² + 24²) = √(36 + 576) = √612 ≈ 24.74 inches
Common Rafter Lengths and Pitches
Here is a table of common roof pitches and their corresponding rafter lengths for a 12-inch run:
| Pitch | Rise | Run | Rafter Length |
|---|---|---|---|
| 3⁄12 | 3 inches | 12 inches | 12.47 inches |
| 4⁄12 | 4 inches | 12 inches | 12.65 inches |
| 5⁄12 | 5 inches | 12 inches | 13.02 inches |
| 6⁄12 | 6 inches | 12 inches | 13.42 inches |
| 7⁄12 | 7 inches | 12 inches | 13.81 inches |
| 8⁄12 | 8 inches | 12 inches | 14.21 inches |
| 9⁄12 | 9 inches | 12 inches | 14.60 inches |
| 10⁄12 | 10 inches | 12 inches | 15.00 inches |
| 11⁄12 | 11 inches | 12 inches | 15.40 inches |
| 12⁄12 | 12 inches | 12 inches | 16.00 inches |
These values are for a 12-inch run. If your run is different, you will need to adjust the calculations accordingly.
📝 Note: Always double-check your measurements and calculations to ensure accuracy. Incorrect measurements can lead to structural issues and potential safety hazards.
Special Considerations
There are a few special considerations to keep in mind when Find Rafter Length:
- Hip and Valley Rafters: These rafters are used in hip roofs and valley roofs, respectively. The calculations for these rafters are more complex and may require additional measurements and formulas.
- Birds Mouth: This is the notch cut into the rafter to sit on the wall plate. The size of the birds mouth can affect the overall length of the rafter.
- Roof Loads: Consider the load the roof will bear, including snow, wind, and the weight of the roofing materials. This can affect the size and spacing of the rafters.
For complex roof designs, it may be beneficial to consult with a professional roofer or structural engineer to ensure accurate measurements and calculations.
📝 Note: Always follow local building codes and regulations when constructing or renovating a roof. These codes are in place to ensure the safety and structural integrity of the building.
In conclusion, accurately Find Rafter Length is a critical step in building or renovating a roof. By understanding the importance of rafters, gathering the necessary tools, measuring the roof pitch, and using the Pythagorean theorem, you can ensure that your roof is structurally sound and aesthetically pleasing. Always double-check your measurements and calculations, and consider consulting with a professional for complex roof designs. With careful planning and execution, you can achieve a durable and attractive roof that will protect your home for years to come.
