Farad In Si Units

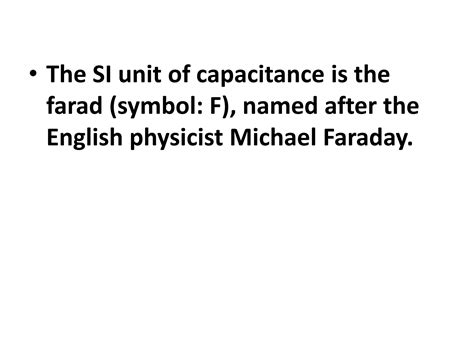

Understanding the concept of capacitance and the Farad in SI units is fundamental in the field of electronics and electrical engineering. Capacitance is a measure of the ability of a body to store an electrical charge. The unit of capacitance in the International System of Units (SI) is the farad, named after the English physicist Michael Faraday. This unit is crucial for designing and analyzing circuits, as it helps in determining how much charge a capacitor can hold for a given voltage.

What is a Farad?

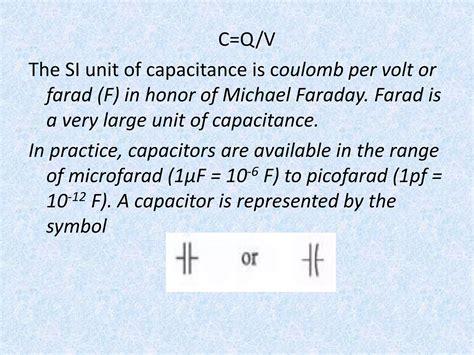

The farad is defined as the capacitance of a capacitor that has a charge of one coulomb when a potential difference of one volt is applied across its plates. In simpler terms, a one-farad capacitor can store one coulomb of charge with a voltage of one volt across it. However, a farad is a relatively large unit, and in practical applications, smaller units such as microfarads (µF), nanofarads (nF), and picofarads (pF) are more commonly used.

Understanding Capacitance

Capacitance is a property of a system of conductors and dielectrics that can store electrical energy. It is determined by the geometry of the conductors and the dielectric material between them. The formula for capacitance is given by:

💡 Note: The formula for capacitance is C = Q/V, where C is the capacitance, Q is the charge, and V is the voltage.

Capacitance can be influenced by several factors, including:

The area of the plates
The distance between the plates
The dielectric material between the plates

Farad in SI Units: Practical Applications

The Farad in SI units is used in various practical applications, from simple electronic circuits to complex systems. Here are some key areas where capacitance and the farad unit are crucial:

Electronic Circuits

In electronic circuits, capacitors are used for a variety of purposes, including:

Filtering out unwanted frequencies
Storing and releasing electrical energy
Coupling and decoupling signals

For example, in a power supply circuit, capacitors are used to smooth out the rectified voltage, providing a steady DC output. The capacitance value, measured in farads, determines how effectively the capacitor can perform this function.

Energy Storage

Capacitors are also used for energy storage in applications where quick charge and discharge cycles are required. Supercapacitors, which have much higher capacitance values, are used in electric vehicles, renewable energy systems, and other high-power applications. These devices can store and release large amounts of energy quickly, making them ideal for applications that require rapid power delivery.

Signal Processing

In signal processing, capacitors are used to filter out noise and unwanted signals. By selecting the appropriate capacitance value, engineers can design filters that allow only the desired frequencies to pass through. This is crucial in audio and communication systems, where signal integrity is paramount.

Calculating Capacitance

To calculate the capacitance of a capacitor, you need to know the area of the plates, the distance between them, and the dielectric constant of the material between the plates. The formula for the capacitance of a parallel-plate capacitor is:

💡 Note: The formula for the capacitance of a parallel-plate capacitor is C = ε₀εᵣA/d, where ε₀ is the permittivity of free space, εᵣ is the relative permittivity of the dielectric material, A is the area of the plates, and d is the distance between the plates.

Here is a step-by-step guide to calculating the capacitance:

Determine the area of the plates (A).
Measure the distance between the plates (d).
Identify the dielectric material and its relative permittivity (εᵣ).
Use the formula C = ε₀εᵣA/d to calculate the capacitance.

Common Units of Capacitance

While the farad is the base unit of capacitance in the SI system, it is often more practical to use smaller units. Here are some common units of capacitance and their relationships to the farad:

Unit	Symbol	Value in Farads
Microfarad	µF	1 × 10^-6 F
Nanofarad	nF	1 × 10^-9 F
Picofarad	pF	1 × 10^-12 F
Micro-microfarad	µµF	1 × 10^-12 F

These smaller units are more commonly used in electronic circuits because they are more manageable and easier to work with. For example, a typical capacitor in a circuit might have a capacitance of 10 µF or 100 nF, rather than 0.00001 F or 0.0000001 F.

Factors Affecting Capacitance

Several factors can affect the capacitance of a capacitor. Understanding these factors is essential for designing and selecting the right capacitor for a specific application. Here are some key factors:

Dielectric Material

The dielectric material between the plates of a capacitor significantly affects its capacitance. Different materials have different dielectric constants (εᵣ), which determine how well they can store electrical energy. Common dielectric materials include:

Air (εᵣ ≈ 1)
Paper (εᵣ ≈ 3.5)
Mica (εᵣ ≈ 5-7)
Ceramic (εᵣ ≈ 10-100)
Electrolytic (εᵣ ≈ 10-20)

Choosing the right dielectric material is crucial for achieving the desired capacitance and performance characteristics.

Plate Area and Distance

The area of the plates and the distance between them also play a significant role in determining capacitance. Increasing the area of the plates or decreasing the distance between them will increase the capacitance. This is why capacitors with larger plates and thinner dielectric layers are often used in applications requiring high capacitance.

Temperature and Frequency

Temperature and frequency can also affect the capacitance of a capacitor. Some dielectric materials are sensitive to temperature changes, which can cause the capacitance to vary. Similarly, the capacitance of a capacitor can change with the frequency of the applied signal. This is particularly important in high-frequency applications, where the capacitance value may need to be stable over a wide range of frequencies.

Types of Capacitors

There are several types of capacitors, each with its own characteristics and applications. Understanding the different types of capacitors is essential for selecting the right one for a specific application. Here are some common types of capacitors:

Ceramic Capacitors

Ceramic capacitors are made from ceramic materials and are known for their high stability and reliability. They are commonly used in high-frequency applications, such as filters and oscillators. Ceramic capacitors are available in a wide range of capacitance values, from picofarads to microfarads.

Electrolytic Capacitors

Electrolytic capacitors are designed for high capacitance values and are commonly used in power supply circuits. They are available in both polarized and non-polarized versions. Polarized electrolytic capacitors have a positive and negative terminal and must be connected correctly to avoid damage. Non-polarized electrolytic capacitors can be connected in either direction.

Film Capacitors

Film capacitors are made from thin plastic films and are known for their high stability and low loss. They are commonly used in audio and communication applications, where signal integrity is crucial. Film capacitors are available in a wide range of capacitance values and voltage ratings.

Supercapacitors

Supercapacitors, also known as ultracapacitors, are designed for high energy storage and rapid charge/discharge cycles. They are used in applications such as electric vehicles, renewable energy systems, and backup power supplies. Supercapacitors have much higher capacitance values than traditional capacitors, often ranging from farads to thousands of farads.

Each type of capacitor has its own advantages and disadvantages, and the choice of capacitor depends on the specific requirements of the application.

Importance of Capacitance in Modern Technology

The Farad in SI units and the concept of capacitance are fundamental to modern technology. Capacitors are used in a wide range of applications, from simple electronic circuits to complex systems. Here are some key areas where capacitance plays a crucial role:

Consumer Electronics

In consumer electronics, capacitors are used in various devices, including smartphones, laptops, and televisions. They are essential for power management, signal processing, and energy storage. For example, capacitors are used in the power supply circuits of these devices to smooth out the rectified voltage and provide a steady DC output.

Automotive Industry

In the automotive industry, capacitors are used in various applications, including engine control units, anti-lock braking systems, and airbag systems. They are also used in electric and hybrid vehicles for energy storage and power management. Supercapacitors, in particular, are used in electric vehicles for their ability to store and release large amounts of energy quickly.

Renewable Energy Systems

In renewable energy systems, capacitors are used for energy storage and power management. They are essential for smoothing out the fluctuations in power output from renewable energy sources, such as solar and wind. Supercapacitors are used in these systems for their ability to store and release large amounts of energy quickly, making them ideal for applications that require rapid power delivery.

In summary, the Farad in SI units and the concept of capacitance are essential for modern technology. Capacitors are used in a wide range of applications, from simple electronic circuits to complex systems, and their importance continues to grow as technology advances.

Capacitance is a fundamental concept in electronics and electrical engineering, and understanding the Farad in SI units is crucial for designing and analyzing circuits. By selecting the right capacitor for a specific application, engineers can ensure that their designs are reliable, efficient, and effective. Whether you are working on a simple electronic circuit or a complex system, understanding capacitance and the farad unit is essential for success.
