Diffraction is a fundamental phenomenon in wave physics that occurs when waves encounter an obstacle or pass through an aperture. This phenomenon is not limited to light waves but also applies to sound waves, water waves, and even matter waves, such as electrons. Understanding diffraction is crucial in various fields, including optics, acoustics, and quantum mechanics. This post will delve into the principles of diffraction, its applications, and provide an example of diffraction to illustrate its concepts.
Understanding Diffraction

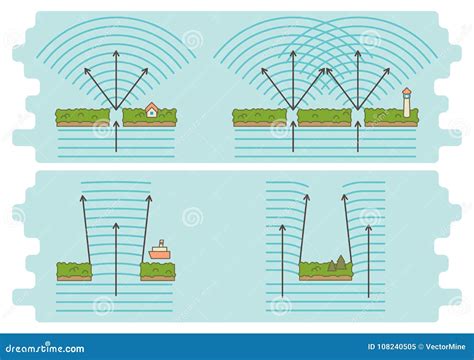

Diffraction is the bending and spreading of waves when they encounter an obstacle or pass through an aperture. This phenomenon is a result of the wave nature of light and other forms of radiation. When a wave encounters an edge or a slit, it does not simply continue in a straight line but rather bends around the obstacle, creating a pattern of interference.
There are two main types of diffraction:
- Fresnel Diffraction: Occurs when the source of light or the observing screen is at a finite distance from the diffracting object.
- Fraunhofer Diffraction: Occurs when the source of light and the observing screen are at infinite distances from the diffracting object. This type of diffraction is often studied in optics and is characterized by a far-field pattern.
Principles of Diffraction
To understand diffraction, it is essential to grasp a few key principles:
- Wave Nature: Diffraction is a wave phenomenon, meaning it occurs with all types of waves, including light, sound, and water waves.
- Interference: Diffraction patterns are a result of the interference of waves. Constructive interference occurs when waves add up, creating bright regions, while destructive interference occurs when waves cancel out, creating dark regions.
- Aperture Size: The size of the aperture relative to the wavelength of the wave determines the extent of diffraction. Smaller apertures result in more significant diffraction.
Example Of Diffraction
One of the most classic examples of diffraction is the single-slit experiment. In this experiment, a coherent light source is shone through a narrow slit, and the resulting pattern is observed on a screen placed some distance away. The pattern consists of a central bright fringe flanked by alternating dark and bright fringes.
To understand this example, let's break down the steps:
- Setup: A monochromatic light source (e.g., a laser) is directed at a single slit. The slit is placed between the light source and a screen.
- Observation: The light passing through the slit spreads out and creates a pattern of bright and dark fringes on the screen.
- Interpretation: The central bright fringe is the result of constructive interference, where the waves add up. The dark fringes are the result of destructive interference, where the waves cancel out.
This example of diffraction illustrates how waves behave when they encounter an obstacle or pass through an aperture. The pattern observed on the screen is a direct result of the wave nature of light and the principles of interference.
💡 Note: The width of the central bright fringe in a single-slit diffraction pattern is inversely proportional to the width of the slit. Narrower slits result in wider central fringes.
Applications of Diffraction
Diffraction has numerous applications in various fields. Some of the most notable applications include:
- Optics: Diffraction gratings are used to disperse light into its constituent wavelengths, making them essential in spectroscopy and optical instruments.
- Acoustics: Diffraction of sound waves is crucial in the design of concert halls and audio systems to ensure optimal sound distribution.
- Quantum Mechanics: The diffraction of matter waves, such as electrons, is a fundamental concept in quantum mechanics and is used in electron microscopy.
- Medical Imaging: Diffraction is used in medical imaging techniques, such as X-ray crystallography, to determine the structure of biological molecules.
Diffraction in Everyday Life
Diffraction is not just a phenomenon observed in laboratories; it also plays a role in everyday life. Some common examples include:
- Rainbows: The diffraction of light by raindrops creates the beautiful spectrum of colors we see in a rainbow.
- CD and DVD Reflections: The diffraction of light by the microscopic pits on a CD or DVD surface creates the colorful reflections seen when light hits the disc at an angle.
- Sound Propagation: The diffraction of sound waves allows us to hear around corners and through open doors.
Mathematical Representation of Diffraction
The mathematical representation of diffraction involves complex calculations, but the basic principles can be understood through a few key equations. For Fraunhofer diffraction through a single slit, the intensity of the light at a point on the screen is given by:
Where:
| Symbol | Description |
|---|---|
| I(θ) | Intensity of light at an angle θ |
| I0 | Maximum intensity |
| β | Phase difference between waves from the top and bottom of the slit |
This equation shows how the intensity of the light varies with the angle θ, creating the characteristic pattern of bright and dark fringes.
📝 Note: The phase difference β is given by β = (πa sin(θ)) / λ, where a is the width of the slit and λ is the wavelength of the light.
Diffraction and Interference
Diffraction and interference are closely related phenomena. While diffraction deals with the bending and spreading of waves, interference deals with the interaction of waves. In many cases, diffraction patterns are a result of the interference of waves that have passed through an aperture or around an obstacle.
For example, in the double-slit experiment, light passing through two closely spaced slits creates an interference pattern on a screen. This pattern is a result of the diffraction of light through each slit and the subsequent interference of the diffracted waves.
The double-slit experiment is a classic example of how diffraction and interference work together to create complex patterns. The intensity of the light at a point on the screen is given by:
Where:
| Symbol | Description |
|---|---|
| δ | Phase difference between waves from the two slits |
This equation shows how the intensity of the light varies with the phase difference δ, creating the characteristic pattern of bright and dark fringes.
📝 Note: The phase difference δ is given by δ = (2πd sin(θ)) / λ, where d is the distance between the slits and λ is the wavelength of the light.
In summary, diffraction and interference are fundamental phenomena that play a crucial role in the behavior of waves. Understanding these principles is essential for studying optics, acoustics, and quantum mechanics.
Diffraction is a fascinating phenomenon that has wide-ranging applications in science and technology. From optics and acoustics to quantum mechanics and medical imaging, diffraction plays a crucial role in our understanding of the world around us. By studying diffraction, we can gain insights into the behavior of waves and their interactions, leading to advancements in various fields.
