The Euler-Bernoulli Beam Equation is a fundamental concept in structural engineering and mechanics, used to describe the relationship between the deflection of a beam and the applied loads. This equation is crucial for designing and analyzing structures such as bridges, buildings, and mechanical components. Understanding the Euler-Bernoulli Beam Equation allows engineers to predict how a beam will deform under various loading conditions, ensuring the safety and stability of structures.
The Basics of the Euler-Bernoulli Beam Equation
The Euler-Bernoulli Beam Equation is derived from the principles of beam theory, which assumes that the beam is slender and that plane sections remain plane during bending. The equation is given by:
EI d4y/dx4 = q(x)
Where:
- E is the modulus of elasticity (Young's modulus) of the beam material.
- I is the second moment of area (moment of inertia) of the beam's cross-section.
- y is the deflection of the beam.
- x is the position along the beam.
- q(x) is the distributed load per unit length.
The equation can be solved to find the deflection y of the beam at any point x along its length, given the boundary conditions and the applied loads.
Assumptions of the Euler-Bernoulli Beam Theory
The Euler-Bernoulli Beam Theory makes several assumptions to simplify the analysis:
- The beam is initially straight and unstressed.
- The beam is slender, meaning the length is much greater than the cross-sectional dimensions.
- The beam material is homogeneous and isotropic.
- Plane sections remain plane during bending.
- Shear deformation is negligible.
- The beam is subjected to small deflections.
These assumptions allow for a simplified mathematical model but may not be valid for all types of beams and loading conditions.

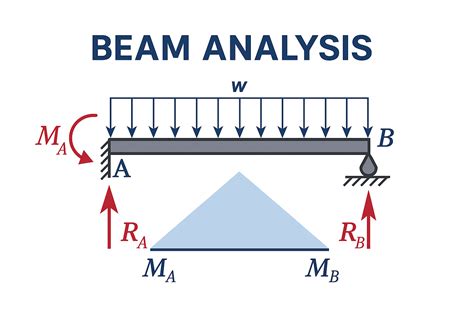

Boundary Conditions
Boundary conditions are essential for solving the Euler-Bernoulli Beam Equation. Common boundary conditions include:
- Simply supported (pinned) ends: The deflection and moment are zero at the supports.
- Clamped (fixed) ends: The deflection and slope are zero at the supports.
- Free ends: The moment and shear force are zero at the free end.
- Cantilever beams: One end is fixed, and the other end is free.
Different combinations of boundary conditions result in different beam configurations, such as simply supported beams, cantilever beams, and fixed-fixed beams.
Solving the Euler-Bernoulli Beam Equation
Solving the Euler-Bernoulli Beam Equation involves integrating the differential equation four times and applying the boundary conditions to determine the constants of integration. The general solution for the deflection y is given by:
y(x) = C1 + C2x + C3x2 + C4x3 + ∫∫∫∫ q(x)dx4/EI
Where C1, C2, C3, and C4 are constants of integration determined by the boundary conditions.
For example, consider a simply supported beam of length L with a uniform distributed load q. The boundary conditions are:
- y(0) = 0
- y(L) = 0
- M(0) = 0
- M(L) = 0
Applying these boundary conditions to the general solution, we can find the constants of integration and the deflection equation for the beam.
📝 Note: The solution process can be complex and may require numerical methods for beams with varying cross-sections or non-uniform loads.
Applications of the Euler-Bernoulli Beam Equation
The Euler-Bernoulli Beam Equation has numerous applications in engineering and mechanics. Some of the key areas include:
Civil Engineering
In civil engineering, the Euler-Bernoulli Beam Equation is used to design and analyze structures such as:
- Bridges: To determine the deflection and stress in bridge beams under various loading conditions.
- Buildings: To analyze the behavior of beams in floors, roofs, and walls.
- Retaining walls: To assess the stability and deflection of retaining walls under soil pressure.
Mechanical Engineering
In mechanical engineering, the Euler-Bernoulli Beam Equation is applied to:
- Machine components: To design shafts, levers, and other components subjected to bending loads.
- Vehicle suspensions: To analyze the deflection and stress in suspension components.
- Aerospace structures: To design and analyze wings, fuselages, and other structural components.
Material Science
In material science, the Euler-Bernoulli Beam Equation is used to:
- Characterize the mechanical properties of materials, such as Young's modulus.
- Study the behavior of nanomaterials and microstructures, such as carbon nanotubes and microbeams.
- Develop new materials with enhanced mechanical properties.
Limitations of the Euler-Bernoulli Beam Theory
While the Euler-Bernoulli Beam Theory is widely used, it has several limitations:
- It assumes that plane sections remain plane, which may not be valid for deep beams or beams with large deflections.
- It neglects shear deformation, which can be significant in short or thick beams.
- It does not account for the effects of large deflections or nonlinear behavior.
- It assumes homogeneous and isotropic materials, which may not be valid for composite materials or materials with varying properties.
For cases where these assumptions are not valid, more advanced beam theories, such as the Timoshenko Beam Theory, may be required.
Comparing Euler-Bernoulli and Timoshenko Beam Theories
The Timoshenko Beam Theory is an extension of the Euler-Bernoulli Beam Theory that accounts for shear deformation and rotational inertia. The governing equations for the Timoshenko Beam Theory are:
EI d2ψ/dx2 = q(x) - kAG(ψ - dy/dx)
kAG (d2y/dx2 - dψ/dx) = q(x)
Where:
- ψ is the rotation of the cross-section.
- k is the shear correction factor.
- A is the cross-sectional area.
- G is the shear modulus.
The Timoshenko Beam Theory provides a more accurate description of beam behavior for short or thick beams, where shear deformation is significant. However, it is more complex to solve than the Euler-Bernoulli Beam Equation.
Here is a comparison of the two theories:
| Aspect | Euler-Bernoulli Beam Theory | Timoshenko Beam Theory |
|---|---|---|
| Shear Deformation | Neglected | Included |
| Rotational Inertia | Neglected | Included |
| Complexity | Simpler | More complex |
| Accuracy | Less accurate for short or thick beams | More accurate for short or thick beams |
In summary, the choice between the Euler-Bernoulli and Timoshenko Beam Theories depends on the specific application and the importance of shear deformation and rotational inertia.
📝 Note: For most slender beams with small deflections, the Euler-Bernoulli Beam Theory provides sufficient accuracy and is easier to use.
Numerical Methods for Solving the Euler-Bernoulli Beam Equation
For beams with complex geometries, varying cross-sections, or non-uniform loads, analytical solutions to the Euler-Bernoulli Beam Equation may not be feasible. In such cases, numerical methods can be employed to solve the equation. Common numerical methods include:
Finite Element Method (FEM)
The Finite Element Method is a powerful numerical technique for solving the Euler-Bernoulli Beam Equation. It involves discretizing the beam into a finite number of elements and solving the equation for each element. The results are then combined to obtain the overall solution. FEM is widely used in engineering software for structural analysis.
Finite Difference Method (FDM)
The Finite Difference Method is another numerical technique for solving the Euler-Bernoulli Beam Equation. It involves approximating the derivatives in the equation using finite differences and solving the resulting system of algebraic equations. FDM is simpler to implement than FEM but may be less accurate for complex geometries.
Boundary Element Method (BEM)
The Boundary Element Method is a numerical technique that reduces the dimensionality of the problem by formulating the equation in terms of boundary integrals. BEM is particularly useful for problems with infinite or semi-infinite domains, such as soil-structure interaction problems.
Numerical methods provide a flexible and powerful approach to solving the Euler-Bernoulli Beam Equation for complex beam configurations. However, they require careful discretization and validation to ensure accurate results.
📝 Note: The choice of numerical method depends on the specific problem, the required accuracy, and the available computational resources.
Experimental Validation of the Euler-Bernoulli Beam Equation
Experimental validation is crucial for verifying the accuracy of the Euler-Bernoulli Beam Equation and the assumptions made in the theory. Common experimental techniques include:
Deflection Measurements
Deflection measurements involve applying known loads to a beam and measuring the resulting deflections using instruments such as dial gauges, linear variable differential transformers (LVDTs), or digital image correlation (DIC). The measured deflections are compared with the theoretical predictions to validate the Euler-Bernoulli Beam Equation.
Strain Measurements
Strain measurements involve attaching strain gauges to the beam surface and measuring the strains under applied loads. The measured strains are compared with the theoretical strains calculated from the Euler-Bernoulli Beam Equation to validate the theory.
Modal Analysis
Modal analysis involves exciting the beam with dynamic loads and measuring the natural frequencies and mode shapes. The measured modal parameters are compared with the theoretical predictions to validate the Euler-Bernoulli Beam Equation for dynamic loading conditions.
Experimental validation provides valuable insights into the accuracy and limitations of the Euler-Bernoulli Beam Equation and helps improve the design and analysis of beam structures.
📝 Note: Experimental validation should be performed under controlled conditions to ensure accurate and reliable results.
Advanced Topics in Euler-Bernoulli Beam Theory
Beyond the basic Euler-Bernoulli Beam Theory, there are several advanced topics that extend the theory to more complex scenarios. Some of these topics include:
Nonlinear Beam Theory
Nonlinear Beam Theory extends the Euler-Bernoulli Beam Equation to account for large deflections, material nonlinearity, and geometric nonlinearity. The governing equations become more complex and may require numerical methods for solution.
Composite Beams
Composite Beams involve beams made of composite materials, such as fiber-reinforced polymers. The Euler-Bernoulli Beam Equation is modified to account for the anisotropic properties of the composite materials and the interaction between the layers.
Beams on Elastic Foundations
Beams on Elastic Foundations consider the interaction between the beam and an underlying elastic foundation, such as soil or rubber. The Euler-Bernoulli Beam Equation is modified to include the foundation stiffness and damping.
Dynamic Beam Theory
Dynamic Beam Theory extends the Euler-Bernoulli Beam Equation to account for dynamic loading conditions, such as vibrations and impacts. The governing equations include inertial terms and may require numerical methods for solution.
These advanced topics provide a more comprehensive understanding of beam behavior under complex loading conditions and material properties.
📝 Note: Advanced topics in Euler-Bernoulli Beam Theory require a strong foundation in mechanics and mathematics.
In conclusion, the Euler-Bernoulli Beam Equation is a fundamental tool in structural engineering and mechanics, providing a mathematical framework for analyzing the deflection and stress in beams under various loading conditions. Understanding the assumptions, boundary conditions, and limitations of the theory is crucial for accurate and reliable analysis. Numerical methods and experimental validation further enhance the applicability and accuracy of the Euler-Bernoulli Beam Equation, making it an essential tool for engineers and researchers.
