Euler Bernoulli Beam

The study of structural mechanics is a cornerstone of engineering, and one of the fundamental concepts within this field is the Euler Bernoulli Beam. This theory, developed by Leonhard Euler and Daniel Bernoulli, provides a framework for understanding the behavior of beams under various loading conditions. The Euler Bernoulli Beam theory is particularly useful for analyzing slender beams where the deflection is small compared to the length of the beam. This makes it a crucial tool for engineers and researchers in fields such as civil engineering, mechanical engineering, and aerospace engineering.

Table of Contents

Understanding the Euler Bernoulli Beam Theory

The Euler Bernoulli Beam theory is based on several key assumptions:

The beam is initially straight and unstressed.
The beam is slender, meaning the length is much greater than the cross-sectional dimensions.
The material of the beam is homogeneous and isotropic.
The beam undergoes small deflections, and the slope of the deflection curve is small.

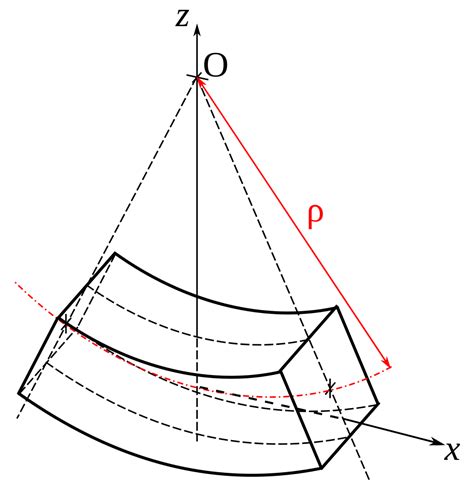

Plane sections remain plane and perpendicular to the neutral axis after bending.

These assumptions simplify the mathematical model, making it easier to analyze the behavior of the beam under different loading conditions.

Governing Equations

The governing equation for the Euler Bernoulli Beam is derived from the principles of equilibrium and the constitutive relationship of the material. The differential equation for the deflection ( v(x) ) of a beam is given by:

EI frac{d^4v}{dx^4} = q(x)

where:

E is the modulus of elasticity of the beam material.
I is the moment of inertia of the beam’s cross-section.
q(x) is the distributed load per unit length.

This fourth-order differential equation can be solved using various boundary conditions to determine the deflection and stress distribution in the beam.

Boundary Conditions

The boundary conditions for an Euler Bernoulli Beam depend on how the beam is supported. Common boundary conditions include:

Simply Supported (Pinned-Pinned): The beam is supported at both ends but can rotate freely.
Cantilever Beam: One end of the beam is fixed, and the other end is free.
Fixed-Fixed Beam: Both ends of the beam are fixed and cannot rotate.
Fixed-Pinned Beam: One end is fixed, and the other end is simply supported.

Each of these boundary conditions results in a different set of equations that must be solved to determine the deflection and stress in the beam.

Applications of Euler Bernoulli Beam Theory

The Euler Bernoulli Beam theory has wide-ranging applications in various engineering disciplines. Some of the key areas where this theory is applied include:

Civil Engineering: Design and analysis of bridges, buildings, and other structures.
Mechanical Engineering: Analysis of machine components, shafts, and other structural elements.
Aerospace Engineering: Design of aircraft wings, fuselages, and other structural components.
Nanotechnology: Analysis of nanobeams and other nanostructures.

In each of these applications, the Euler Bernoulli Beam theory provides a reliable framework for predicting the behavior of beams under various loading conditions.

Limitations of Euler Bernoulli Beam Theory

While the Euler Bernoulli Beam theory is powerful, it has certain limitations. These include:

The theory assumes small deflections, which may not be valid for beams undergoing large deformations.
The theory does not account for shear deformation, which can be significant in short, thick beams.
The theory assumes that the material is homogeneous and isotropic, which may not be the case for composite materials.

For cases where these assumptions are not valid, more advanced theories such as the Timoshenko Beam Theory may be required.

Example Problem

To illustrate the application of the Euler Bernoulli Beam theory, consider a simply supported beam of length ( L ) with a uniformly distributed load ( q ). The deflection ( v(x) ) of the beam can be determined by solving the governing equation with the appropriate boundary conditions.

The boundary conditions for a simply supported beam are:

( v(0) = 0 )
( v(L) = 0 )
( v”(0) = 0 )
( v”(L) = 0 )

The solution to the governing equation with these boundary conditions is:

v(x) = frac{q}{24EI} (x^4 - 2Lx^3 + L^3x)

This equation gives the deflection of the beam at any point ( x ) along its length.

📝 Note: The solution assumes that the beam is homogeneous and isotropic, and the deflection is small compared to the length of the beam.

Advanced Topics in Euler Bernoulli Beam Theory

For more complex problems, the Euler Bernoulli Beam theory can be extended to include additional factors such as:

Dynamic Loading: Analyzing the behavior of beams under time-varying loads.
Non-Uniform Cross-Sections: Beams with varying cross-sectional properties along their length.
Composite Materials: Beams made from composite materials with anisotropic properties.

These extensions require more advanced mathematical techniques and numerical methods to solve the governing equations.

Numerical Methods for Euler Bernoulli Beam Analysis

In many practical applications, the governing equations for the Euler Bernoulli Beam cannot be solved analytically. In such cases, numerical methods are employed. Common numerical methods include:

Finite Element Method (FEM): Divides the beam into small elements and solves the equations for each element.
Finite Difference Method (FDM): Approximates the derivatives in the governing equation using finite differences.
Boundary Element Method (BEM): Solves the boundary integral equations derived from the governing differential equation.

These numerical methods provide approximate solutions that can be used to analyze the behavior of beams under complex loading conditions.

📝 Note: The choice of numerical method depends on the specific problem and the available computational resources.

Comparison with Timoshenko Beam Theory

The Euler Bernoulli Beam theory is often compared with the Timoshenko Beam Theory, which accounts for shear deformation and rotational inertia. The Timoshenko Beam Theory is more accurate for short, thick beams and beams undergoing large deflections. However, it is also more complex and computationally intensive.

The governing equations for the Timoshenko Beam Theory are:

EI frac{d^4v}{dx^4} - kappa GA left( frac{d^2v}{dx^2} - frac{dpsi}{dx} ight) = q(x)

where:

κ is the shear correction factor.
G is the shear modulus.
A is the cross-sectional area.
ψ is the rotation of the cross-section.

The Timoshenko Beam Theory provides a more accurate model for beams where shear deformation is significant.

Conclusion

The Euler Bernoulli Beam theory is a fundamental concept in structural mechanics, providing a reliable framework for analyzing the behavior of slender beams under various loading conditions. Its applications range from civil engineering to aerospace engineering, making it an essential tool for engineers and researchers. While the theory has certain limitations, it remains a cornerstone of structural analysis. For more complex problems, advanced theories and numerical methods can be employed to achieve accurate and reliable results.
