Engine Cooling Fan Relay

Understanding the intricacies of vehicle maintenance is crucial for ensuring the longevity and performance of your car. One often overlooked but vital component is the Engine Cooling Fan Relay. This small yet essential part plays a significant role in maintaining the optimal operating temperature of your engine. In this post, we will delve into the importance of the Engine Cooling Fan Relay, its function, common issues, and how to troubleshoot and replace it.

Table of Contents

Understanding the Engine Cooling Fan Relay

The Engine Cooling Fan Relay is an electrical component that controls the operation of the engine cooling fan. This relay acts as a switch, allowing the fan to turn on and off based on the engine's temperature. When the engine gets too hot, the relay activates the fan to cool it down, preventing overheating and potential damage.

How the Engine Cooling Fan Relay Works

The Engine Cooling Fan Relay operates through a series of electrical signals. Here’s a step-by-step breakdown of its functioning:

The engine's temperature sensor monitors the engine's temperature.
When the temperature exceeds a certain threshold, the sensor sends a signal to the engine control unit (ECU).
The ECU then activates the Engine Cooling Fan Relay, which in turn supplies power to the cooling fan.
The cooling fan starts running, drawing air through the radiator to cool the engine.
Once the engine temperature drops below the threshold, the sensor signals the ECU to deactivate the relay, turning off the fan.

Common Issues with the Engine Cooling Fan Relay

Several issues can arise with the Engine Cooling Fan Relay, leading to problems with engine cooling. Some of the most common issues include:

Relay Failure: The relay itself can fail, preventing the cooling fan from turning on.
Wiring Problems: Corroded or damaged wires can disrupt the electrical signals, causing the relay to malfunction.
Faulty Temperature Sensor: If the temperature sensor is not functioning correctly, it may not send the right signals to the ECU, affecting the relay's operation.
ECU Malfunction: Issues with the ECU can also prevent the relay from activating the cooling fan.

Troubleshooting the Engine Cooling Fan Relay

If you suspect that your Engine Cooling Fan Relay is not functioning properly, you can perform a few troubleshooting steps to diagnose the issue:

Visual Inspection: Check the relay for any visible signs of damage, such as burnt contacts or corrosion.
Continuity Test: Use a multimeter to test the continuity of the relay. This involves checking if the electrical circuit is complete when the relay is activated.
Wiring Check: Inspect the wiring connected to the relay for any signs of damage or corrosion. Ensure all connections are secure.
Temperature Sensor Test: Verify that the temperature sensor is functioning correctly by checking its resistance at different temperatures.
ECU Diagnosis: Use an OBD-II scanner to check for any error codes related to the cooling system or ECU.

🔧 Note: Always ensure the engine is cool before performing any diagnostics or repairs on the cooling system.

Replacing the Engine Cooling Fan Relay

If you have determined that the Engine Cooling Fan Relay needs to be replaced, follow these steps:

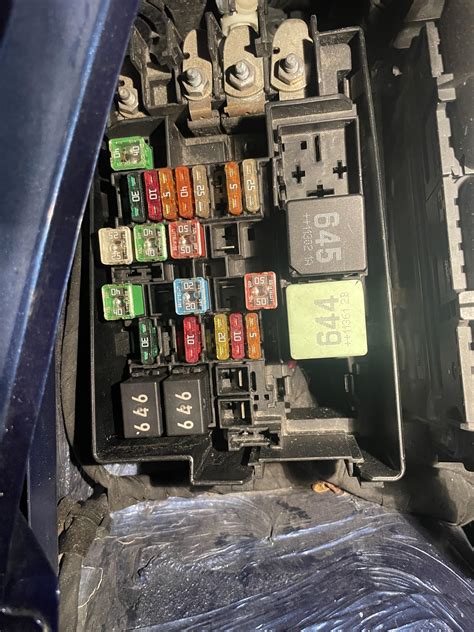

Locate the Relay: The relay is usually located in the engine compartment, often in a relay box or fuse box.
Disconnect the Battery: For safety, disconnect the negative terminal of the battery to prevent any electrical shorts.
Remove the Old Relay: Pull out the old relay from its socket. Note the position and orientation of the relay for reference.
Install the New Relay: Insert the new relay into the socket, ensuring it is properly seated and oriented correctly.
Reconnect the Battery: Reconnect the negative terminal of the battery.
Test the System: Start the engine and allow it to reach operating temperature. Monitor the cooling fan to ensure it activates when needed.

🔧 Note: Always use a relay that matches the specifications of your vehicle to ensure proper functioning.

Maintaining Your Engine Cooling System

Regular maintenance of your engine cooling system can prevent issues with the Engine Cooling Fan Relay and other components. Here are some tips for maintaining your cooling system:

Regular Coolant Checks: Check the coolant level regularly and top it off as needed. Ensure the coolant is in good condition and free of contaminants.
Radiator Flush: Perform a radiator flush every few years to remove any buildup or debris that can affect cooling efficiency.
Fan and Belt Inspection: Inspect the cooling fan and belts for any signs of wear or damage. Replace them if necessary.
Temperature Sensor Maintenance: Ensure the temperature sensor is clean and functioning correctly. Replace it if it shows signs of failure.

Symptoms of a Faulty Engine Cooling Fan Relay

Recognizing the symptoms of a faulty Engine Cooling Fan Relay can help you address the issue before it causes significant damage. Some common symptoms include:

Engine Overheating: The most obvious sign is engine overheating, especially during idle or low-speed driving.
Fan Not Running: The cooling fan may not turn on at all, even when the engine is hot.
Fan Running Continuously: The fan may run continuously, even when the engine is cool, indicating a stuck relay.
Check Engine Light: The check engine light may come on, indicating a problem with the cooling system.
Poor Fuel Economy: A faulty relay can lead to inefficient engine operation, resulting in poor fuel economy.

Diagnosing Engine Cooling Fan Relay Issues

Diagnosing issues with the Engine Cooling Fan Relay involves a systematic approach. Here are the steps to follow:

Check for Error Codes: Use an OBD-II scanner to check for any error codes related to the cooling system. Common codes include P0480 (Fan 1 Control Circuit Malfunction) and P0481 (Fan 2 Control Circuit Malfunction).
Inspect the Relay: Visually inspect the relay for any signs of damage or corrosion. Use a multimeter to test the continuity of the relay.
Test the Wiring: Check the wiring connected to the relay for any signs of damage or corrosion. Ensure all connections are secure.
Verify the Temperature Sensor: Use a multimeter to test the resistance of the temperature sensor at different temperatures. Compare the readings to the manufacturer's specifications.
Check the ECU: Use an OBD-II scanner to check for any error codes related to the ECU. Ensure the ECU is functioning correctly.

🔧 Note: Always refer to your vehicle's repair manual for specific diagnostic procedures and specifications.

Preventive Measures for Engine Cooling Fan Relay

Taking preventive measures can help extend the life of your Engine Cooling Fan Relay and ensure the overall health of your engine cooling system. Here are some preventive measures to consider:

Regular Inspections: Perform regular inspections of the relay, wiring, and other cooling system components. Look for any signs of wear, damage, or corrosion.
Proper Coolant Use: Use the correct type of coolant recommended by your vehicle manufacturer. Avoid mixing different types of coolant.
Avoid Overheating: Avoid driving in conditions that can cause the engine to overheat, such as heavy traffic or extreme temperatures.
Timely Repairs: Address any issues with the cooling system promptly to prevent further damage. Replace worn or damaged components as needed.

Preventive maintenance is key to ensuring the longevity and reliability of your vehicle's cooling system. By taking proactive steps, you can avoid costly repairs and ensure your engine runs smoothly.

Engine Cooling Fan Relay Replacement Cost

The cost of replacing an Engine Cooling Fan Relay can vary depending on several factors, including the make and model of your vehicle, the cost of the relay, and labor charges. Here is a breakdown of the costs involved:

Component	Cost
Engine Cooling Fan Relay	$20 - $50
Labor	$50 - $150
Total Cost	$70 - $200

It's important to note that these are approximate costs and can vary based on your location and the specific requirements of your vehicle. Always get a quote from a trusted mechanic or dealership before proceeding with the replacement.

🔧 Note: Some vehicles may require additional diagnostic tests or repairs, which can increase the overall cost.

In summary, the Engine Cooling Fan Relay is a critical component of your vehicle’s cooling system. Understanding its function, recognizing the symptoms of failure, and performing regular maintenance can help ensure the longevity and performance of your engine. By following the troubleshooting and replacement steps outlined in this post, you can address any issues with the relay and keep your engine running smoothly.
