Engine Coil Repair

Engine coil repair is a critical aspect of maintaining the performance and longevity of your vehicle's ignition system. Whether you're a seasoned mechanic or a DIY enthusiast, understanding the intricacies of engine coil repair can save you time and money. This guide will walk you through the process of diagnosing, repairing, and replacing engine coils, ensuring your vehicle runs smoothly.

Understanding Engine Coils

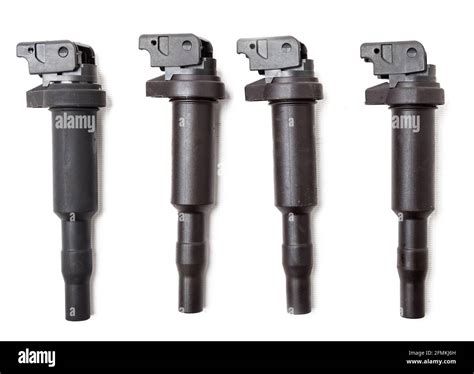

Engine coils, also known as ignition coils, are essential components of your vehicle’s ignition system. They convert the battery’s low voltage into the high voltage needed to create a spark in the spark plugs. This spark ignites the fuel-air mixture in the engine’s cylinders, powering your vehicle. Over time, engine coils can wear out or fail, leading to various performance issues.

Common Symptoms of Faulty Engine Coils

Identifying a faulty engine coil early can prevent more significant problems. Here are some common symptoms to look out for:

Engine Misfires: If your engine misfires, it could be due to a faulty coil. Misfires can cause rough idling, reduced power, and poor fuel efficiency.
Check Engine Light: A malfunctioning engine coil can trigger the check engine light. Use an OBD-II scanner to read the error codes and diagnose the issue.
Difficulty Starting: If your vehicle struggles to start, it might be due to a faulty coil. The engine may crank but not start, or it may start and then stall.
Reduced Fuel Efficiency: A faulty coil can cause incomplete combustion, leading to reduced fuel efficiency and increased emissions.
Rough Idling: If your engine idles roughly or stalls at idle, it could be a sign of a faulty coil.

Diagnosing Engine Coil Issues

Before attempting an engine coil repair, it’s essential to diagnose the problem accurately. Here are the steps to diagnose engine coil issues:

Visual Inspection: Check the engine coils for any visible signs of damage, such as cracks, burns, or oil leaks.
OBD-II Scanner: Use an OBD-II scanner to read the error codes. Common codes for engine coil issues include P0351, P0352, P0353, and P0354.
Spark Test: Perform a spark test to check if the coils are producing a spark. Remove the spark plug and connect it to the coil using a spark plug tester. Crank the engine and look for a strong, blue spark.
Resistance Test: Use a multimeter to test the resistance of the engine coils. Consult your vehicle’s repair manual for the correct resistance values.

Engine Coil Repair: Step-by-Step Guide

Once you’ve diagnosed the issue, you can proceed with the engine coil repair. Here’s a step-by-step guide to help you through the process:

Gathering Tools and Materials

Before you start, gather the necessary tools and materials:

New engine coils
Socket set
Ratchet
Pliers
Multimeter
Spark plug tester
OBD-II scanner
Repair manual

Removing the Faulty Engine Coils

Follow these steps to remove the faulty engine coils:

Disconnect the negative battery cable to prevent any electrical shorts.

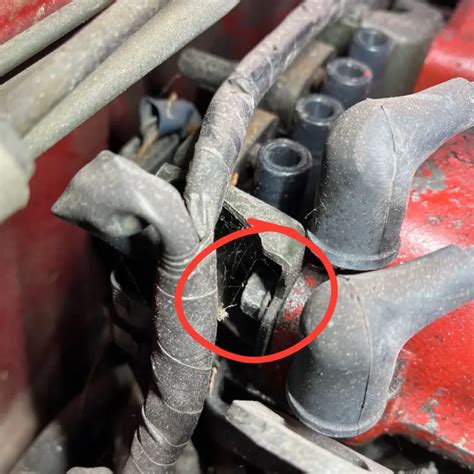

Locate the engine coils. They are usually mounted on top of the spark plugs.
Disconnect the electrical connectors from the coils. You may need to use pliers to release the clips.
Remove the mounting bolts or screws securing the coils to the engine.
Lift the coils out of the engine compartment.

🛠️ Note: Be careful not to damage the electrical connectors or the coils themselves during removal.

Installing New Engine Coils

Follow these steps to install the new engine coils:

Position the new coils in place, ensuring they are correctly aligned with the spark plugs.
Secure the coils with the mounting bolts or screws. Tighten them to the specified torque.
Reconnect the electrical connectors to the coils. Ensure they are fully seated and secure.
Reconnect the negative battery cable.

🛠️ Note: Double-check all connections to ensure they are secure and properly aligned.

Testing the New Engine Coils

After installing the new engine coils, it’s essential to test them to ensure they are functioning correctly:

Start the engine and listen for any unusual noises.
Check for any error codes using the OBD-II scanner.
Perform a spark test to ensure the new coils are producing a strong spark.
Take the vehicle for a test drive to ensure it runs smoothly.

🛠️ Note: If you encounter any issues, double-check all connections and consult your repair manual for further troubleshooting steps.

Replacing Engine Coils: A Comprehensive Guide

In some cases, replacing the engine coils may be more straightforward than repairing them. Here’s a comprehensive guide to replacing engine coils:

Choosing the Right Engine Coils

When replacing engine coils, it’s crucial to choose the right ones for your vehicle. Consider the following factors:

Vehicle Make and Model: Ensure the coils are compatible with your vehicle’s make and model.
OEM vs. Aftermarket: Decide whether to use OEM (Original Equipment Manufacturer) or aftermarket coils. OEM coils are typically more expensive but offer better quality and reliability.
Warranty: Check the warranty coverage for the coils. Some aftermarket coils come with extended warranties.

Removing the Old Engine Coils

Follow the same steps as outlined in the engine coil repair section to remove the old coils.

Installing the New Engine Coils

Follow the same steps as outlined in the engine coil repair section to install the new coils.

Testing the New Engine Coils

Follow the same steps as outlined in the engine coil repair section to test the new coils.

Maintaining Engine Coils for Longevity

Maintaining your engine coils can extend their lifespan and prevent costly repairs. Here are some tips for maintaining engine coils:

Regular Inspections: Inspect the engine coils regularly for any signs of wear or damage.
Keep Them Clean: Ensure the coils are clean and free of debris. Use a compressed air can to blow out any dirt or dust.
Check Connections: Regularly check the electrical connections to ensure they are secure and free of corrosion.
Avoid Overheating: Prevent the engine from overheating, as high temperatures can damage the coils.
Use High-Quality Fuel: Use high-quality fuel to reduce the risk of contamination and ensure optimal performance.

Troubleshooting Common Engine Coil Issues

Even with proper maintenance, engine coil issues can still occur. Here are some common problems and their solutions:

Engine Misfires

If your engine misfires, it could be due to a faulty coil. Check the following:

Inspect the coils for any visible signs of damage.
Use an OBD-II scanner to read the error codes.
Perform a spark test to check if the coils are producing a spark.
Replace the faulty coils if necessary.

Check Engine Light
If the check engine light is on, it could indicate a problem with the engine coils. Follow these steps:

Use an OBD-II scanner to read the error codes.

Inspect the coils for any visible signs of damage.

Perform a spark test to check if the coils are producing a spark.

Replace the faulty coils if necessary.

Difficulty Starting

If your vehicle struggles to start, it might be due to a faulty coil. Check the following:

Inspect the coils for any visible signs of damage.
Use an OBD-II scanner to read the error codes.
Perform a spark test to check if the coils are producing a spark.
Replace the faulty coils if necessary.

Reduced Fuel Efficiency

If your vehicle’s fuel efficiency has decreased, it could be due to a faulty coil. Check the following:

Inspect the coils for any visible signs of damage.
Use an OBD-II scanner to read the error codes.
Perform a spark test to check if the coils are producing a spark.
Replace the faulty coils if necessary.

Rough Idling

If your engine idles roughly or stalls at idle, it could be a sign of a faulty coil. Check the following:

Inspect the coils for any visible signs of damage.
Use an OBD-II scanner to read the error codes.
Perform a spark test to check if the coils are producing a spark.
Replace the faulty coils if necessary.

Engine Coil Repair Costs

The cost of engine coil repair can vary depending on several factors, including the make and model of your vehicle, the type of coils you choose, and whether you perform the repair yourself or hire a professional. Here’s a breakdown of the costs involved:

Parts Cost

The cost of engine coils can range from 20 to 100 or more, depending on whether you choose OEM or aftermarket coils. Here’s a table to give you an idea of the costs:

Coil Type	Cost Range
OEM Coils	$50 - $100
Aftermarket Coils	$20 - $50

Labor Cost

If you hire a professional to perform the engine coil repair, the labor cost can range from 50 to 200 or more, depending on the complexity of the job and your location. Here’s a breakdown of the labor costs:

Labor Cost	Time Required
$50 - $100	1 hour
$100 - $200	2 hours

Total Cost

The total cost of engine coil repair can range from 70 to 300 or more, depending on the factors mentioned above. Here’s a breakdown of the total costs:

Total Cost	Parts + Labor
$70 - $150	Aftermarket Coils + 1 hour labor
$150 - $300	OEM Coils + 2 hours labor

Performing the engine coil repair yourself can save you money on labor costs. However, if you're not comfortable with the process, it's best to hire a professional to ensure the job is done correctly.

Engine coil repair is a crucial aspect of maintaining your vehicle’s ignition system. By understanding the symptoms of faulty engine coils, diagnosing the issues accurately, and performing the necessary repairs or replacements, you can ensure your vehicle runs smoothly and efficiently. Regular maintenance and troubleshooting can help prevent costly repairs and extend the lifespan of your engine coils. Whether you choose to perform the repair yourself or hire a professional, investing in engine coil repair is essential for the overall health and performance of your vehicle.
