Electron Beam Machining

Electron Beam Machining (EBM) is a cutting-edge technology that has revolutionized the manufacturing industry. This advanced machining process uses a focused beam of high-velocity electrons to cut, drill, or weld materials with exceptional precision. EBM is particularly valuable in industries where traditional machining methods fall short, such as aerospace, automotive, and medical device manufacturing. This blog post delves into the intricacies of Electron Beam Machining, its applications, advantages, and the future trends shaping this innovative technology.

Table of Contents

Understanding Electron Beam Machining

Electron Beam Machining is a non-traditional machining process that employs a beam of high-energy electrons to remove material from a workpiece. The process involves accelerating electrons to high velocities using an electron gun, which then focuses the beam onto the material surface. The kinetic energy of the electrons is converted into heat upon impact, melting and vaporizing the material. This precise and controlled process allows for the creation of intricate shapes and features that are difficult or impossible to achieve with conventional machining methods.

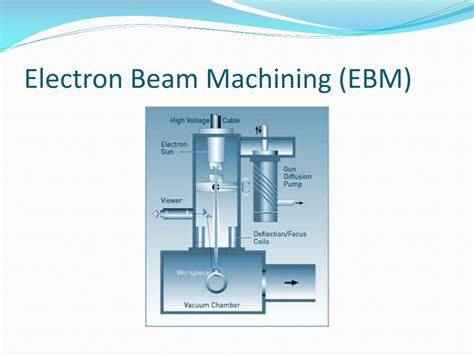

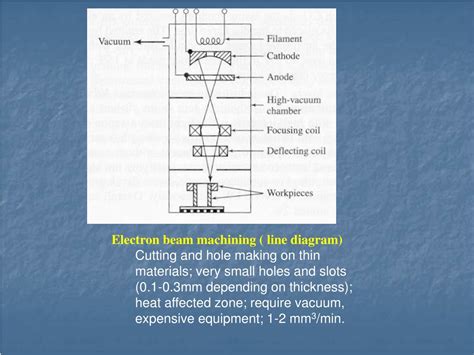

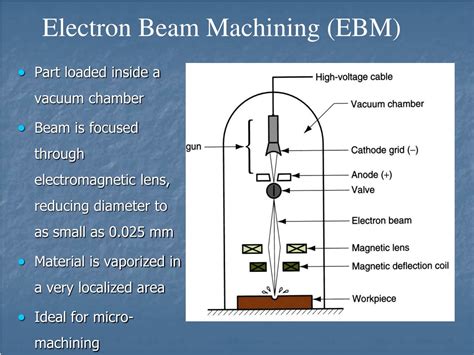

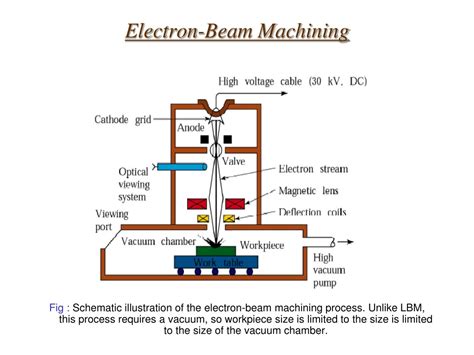

How Electron Beam Machining Works

The Electron Beam Machining process can be broken down into several key steps:

Electron Generation: Electrons are generated in an electron gun, which consists of a heated cathode and an anode. The cathode emits electrons when heated, and the anode accelerates these electrons to high velocities.
Beam Focusing: The accelerated electrons are focused into a narrow beam using electromagnetic lenses. This focusing ensures that the beam has a high energy density, which is crucial for precise machining.
Material Interaction: The focused electron beam is directed onto the workpiece. The kinetic energy of the electrons is converted into heat upon impact, causing the material to melt and vaporize.
Material Removal: The vaporized material is removed from the workpiece, leaving behind a precise cut or hole. The process can be controlled to achieve various depths and shapes.

Electron Beam Machining is typically performed in a vacuum to prevent the scattering of electrons by air molecules, which could reduce the beam's energy and precision.

Applications of Electron Beam Machining

Electron Beam Machining finds applications in various industries due to its precision and versatility. Some of the key applications include:

Aerospace Industry: EBM is used to create intricate components for aircraft and spacecraft, such as turbine blades, nozzles, and structural parts. The high precision and ability to machine hard-to-cut materials make it ideal for aerospace applications.
Automotive Industry: In the automotive sector, EBM is employed to manufacture precision parts like fuel injectors, engine components, and transmission parts. The technology ensures high accuracy and repeatability, which are crucial for automotive performance.
Medical Device Manufacturing: EBM is used to produce medical implants, surgical instruments, and other devices that require precise dimensions and smooth surfaces. The non-contact nature of the process minimizes the risk of contamination and ensures high-quality finishes.
Electronics Industry: EBM is utilized for drilling micro-holes in printed circuit boards (PCBs) and other electronic components. The precision and control offered by EBM make it suitable for creating fine features in electronic devices.

Advantages of Electron Beam Machining

Electron Beam Machining offers several advantages over traditional machining methods:

High Precision: EBM can achieve extremely high precision, with tolerances as low as a few micrometers. This makes it ideal for applications requiring intricate details and tight tolerances.
Non-Contact Process: Since EBM is a non-contact process, there is no mechanical stress or tool wear, reducing the risk of workpiece deformation and ensuring consistent results.
Versatility: EBM can machine a wide range of materials, including metals, ceramics, and composites. It is particularly effective for hard-to-cut materials like titanium and tungsten.
High Speed: The process can achieve high machining speeds, making it efficient for both prototyping and mass production.
Minimal Heat Affected Zone: The focused beam minimizes the heat-affected zone, reducing the risk of thermal distortion and ensuring high-quality finishes.

Limitations of Electron Beam Machining

Despite its numerous advantages, Electron Beam Machining also has some limitations:

High Initial Cost: The equipment required for EBM is expensive, making it a significant investment for manufacturers.
Vacuum Requirement: The process must be performed in a vacuum, which adds complexity and cost to the setup.
Limited Material Thickness: EBM is generally suitable for machining thin materials. Thicker materials may require multiple passes or additional processing steps.
Safety Concerns: Handling high-energy electron beams requires strict safety protocols to protect operators from radiation exposure.

🔍 Note: While EBM offers high precision and versatility, it is essential to consider these limitations when evaluating its suitability for specific applications.

Future Trends in Electron Beam Machining

The field of Electron Beam Machining is continually evolving, driven by advancements in technology and increasing demand for precision manufacturing. Some of the future trends shaping EBM include:

Integration with Additive Manufacturing: Combining EBM with additive manufacturing techniques can create hybrid processes that offer both high precision and the ability to produce complex geometries.
Automation and Robotics: Incorporating automation and robotics into EBM processes can enhance efficiency, reduce human error, and enable 24/7 operation.
Advanced Materials: As new materials are developed, EBM will play a crucial role in machining these materials with precision and accuracy.
Miniaturization: The trend towards miniaturization in various industries will drive the development of smaller, more precise EBM systems capable of machining micro-scale features.

These trends highlight the ongoing innovation in Electron Beam Machining and its potential to revolutionize manufacturing processes across various industries.

Electron Beam Machining is a powerful and versatile technology that offers numerous advantages for precision manufacturing. Its ability to machine a wide range of materials with high precision and speed makes it an invaluable tool for industries such as aerospace, automotive, and medical device manufacturing. As technology continues to advance, EBM will play an increasingly important role in shaping the future of manufacturing.
