Understanding the differences between an Electrolytic Vs Voltaic Cell is fundamental in the study of electrochemistry. Both types of cells involve chemical reactions that produce or consume electrical energy, but they operate in fundamentally different ways. This blog post will delve into the distinctions between electrolytic and voltaic cells, their mechanisms, applications, and key differences.
What is a Voltaic Cell?
A voltaic cell, also known as a galvanic cell, is an electrochemical cell that converts chemical energy into electrical energy. This type of cell is commonly used in batteries and other energy storage devices. The basic components of a voltaic cell include:
- An anode (negative electrode)
- A cathode (positive electrode)
- An electrolyte solution
- A salt bridge or porous membrane
The chemical reactions in a voltaic cell are spontaneous, meaning they occur naturally without the need for an external energy source. The anode undergoes oxidation, losing electrons, while the cathode undergoes reduction, gaining electrons. This flow of electrons creates an electric current that can be harnessed for various applications.

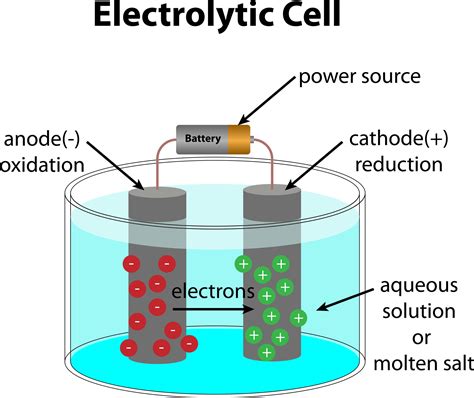

What is an Electrolytic Cell?
An electrolytic cell, on the other hand, is an electrochemical cell that uses electrical energy to drive a non-spontaneous chemical reaction. This type of cell is commonly used in processes such as electroplating, electrolysis of water, and the production of metals from their ores. The basic components of an electrolytic cell include:
- An anode (positive electrode)
- A cathode (negative electrode)
- An electrolyte solution
In an electrolytic cell, an external power source is required to supply the energy needed to drive the chemical reactions. The anode undergoes oxidation, losing electrons, while the cathode undergoes reduction, gaining electrons. This process is the opposite of what occurs in a voltaic cell, where the chemical reactions are spontaneous.
Key Differences Between Electrolytic Vs Voltaic Cell
The primary differences between electrolytic and voltaic cells lie in their mechanisms, energy flow, and applications. Here are some of the key distinctions:
- Energy Flow: In a voltaic cell, chemical energy is converted into electrical energy. In an electrolytic cell, electrical energy is used to drive a chemical reaction.
- Spontaneity: The reactions in a voltaic cell are spontaneous, while those in an electrolytic cell are non-spontaneous.
- Electrode Polarities: In a voltaic cell, the anode is negative and the cathode is positive. In an electrolytic cell, the anode is positive and the cathode is negative.
- Applications: Voltaic cells are used in batteries and other energy storage devices. Electrolytic cells are used in processes such as electroplating, electrolysis of water, and metal production.
To further illustrate these differences, consider the following table:
| Feature | Voltaic Cell | Electrolytic Cell |
|---|---|---|
| Energy Flow | Chemical to Electrical | Electrical to Chemical |
| Spontaneity | Spontaneous | Non-spontaneous |
| Electrode Polarities | Anode (-), Cathode (+) | Anode (+), Cathode (-) |
| Applications | Batteries, Energy Storage | Electroplating, Electrolysis, Metal Production |
Applications of Voltaic Cells
Voltaic cells have a wide range of applications, particularly in the field of energy storage and portable power sources. Some common applications include:
- Batteries: Voltaic cells are used in various types of batteries, including alkaline, lithium-ion, and lead-acid batteries. These batteries power everything from small electronic devices to electric vehicles.
- Fuel Cells: Fuel cells, such as hydrogen fuel cells, operate on the principles of voltaic cells. They convert the chemical energy of a fuel (e.g., hydrogen) into electrical energy.
- Portable Power Sources: Voltaic cells are used in portable power sources like flashlights, remote controls, and medical devices.
One of the most well-known examples of a voltaic cell is the Daniell cell, which consists of a zinc electrode in a zinc sulfate solution and a copper electrode in a copper sulfate solution. The chemical reactions in the Daniell cell are:
- Anode (oxidation): Zn(s) → Zn²⁺(aq) + 2e⁻
- Cathode (reduction): Cu²⁺(aq) + 2e⁻ → Cu(s)
These reactions produce an electric current that can be used to power various devices.
💡 Note: The Daniell cell is a classic example of a voltaic cell and is often used in educational settings to demonstrate the principles of electrochemical cells.
Applications of Electrolytic Cells
Electrolytic cells are used in a variety of industrial and laboratory processes where electrical energy is used to drive chemical reactions. Some common applications include:
- Electroplating: Electroplating involves coating a metal object with a thin layer of another metal using an electrolytic cell. This process is used to improve the appearance, corrosion resistance, and conductivity of the object.
- Electrolysis of Water: Electrolysis of water involves splitting water molecules into hydrogen and oxygen gases using an electrolytic cell. This process is used in the production of hydrogen fuel and in the purification of water.
- Metal Production: Electrolytic cells are used in the production of metals from their ores. For example, aluminum is produced by the electrolysis of aluminum oxide (Al₂O₃) in a molten salt electrolyte.
One of the most well-known examples of an electrolytic cell is the electrolysis of water. The chemical reactions in the electrolysis of water are:
- Anode (oxidation): 2H₂O(l) → O₂(g) + 4H⁺(aq) + 4e⁻
- Cathode (reduction): 4H⁺(aq) + 4e⁻ → 2H₂(g)
These reactions produce hydrogen and oxygen gases, which can be collected and used for various applications.
💡 Note: The electrolysis of water is a fundamental process in chemistry and is often used to demonstrate the principles of electrolytic cells.
Importance of Understanding Electrolytic Vs Voltaic Cell
Understanding the differences between electrolytic and voltaic cells is crucial for various fields, including chemistry, engineering, and materials science. This knowledge is essential for:
- Designing Energy Storage Systems: Knowledge of voltaic cells is vital for designing efficient batteries and other energy storage devices.
- Developing Industrial Processes: Understanding electrolytic cells is important for developing industrial processes such as electroplating, electrolysis, and metal production.
- Environmental Applications: Both types of cells have applications in environmental science, such as water purification and hydrogen fuel production.
By grasping the fundamental principles of Electrolytic Vs Voltaic Cell, scientists and engineers can develop innovative solutions to address energy and environmental challenges.
In conclusion, the distinction between electrolytic and voltaic cells is fundamental to the study of electrochemistry. Voltaic cells convert chemical energy into electrical energy through spontaneous reactions, while electrolytic cells use electrical energy to drive non-spontaneous chemical reactions. Understanding these differences is crucial for various applications, from energy storage to industrial processes. By appreciating the unique characteristics and applications of each type of cell, we can harness their potential to address contemporary challenges in energy and environmental science.
