Electrodes Position In Ecg

Electrocardiography (ECG) is a crucial diagnostic tool in cardiology, providing valuable insights into the electrical activity of the heart. One of the critical aspects of obtaining an accurate ECG reading is the proper placement of the electrodes. The electrodes position in ECG significantly impacts the quality and reliability of the data collected. This blog post will delve into the importance of correct electrode placement, the standard positions for ECG electrodes, and the potential issues that can arise from improper placement.

Table of Contents

Understanding the Importance of Correct Electrode Placement

The accuracy of an ECG reading depends heavily on the precise positioning of the electrodes. Incorrect placement can lead to distorted waveforms, misinterpretation of results, and potentially missed diagnoses. The electrodes capture the electrical signals generated by the heart, and their position determines the view of the heart's electrical activity. Proper placement ensures that the ECG machine can accurately interpret these signals, providing a clear and reliable diagnosis.

The Standard Electrode Positions in ECG

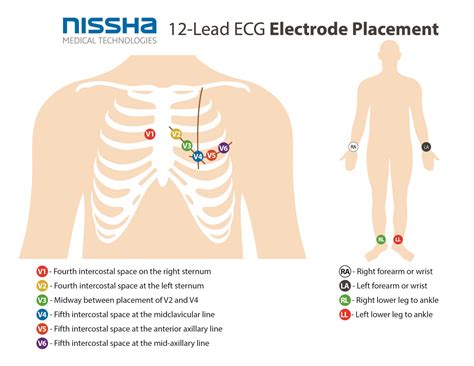

The standard 12-lead ECG uses ten electrodes placed on specific locations on the body to capture different views of the heart's electrical activity. These positions are divided into limb leads and chest leads.

Limb Leads

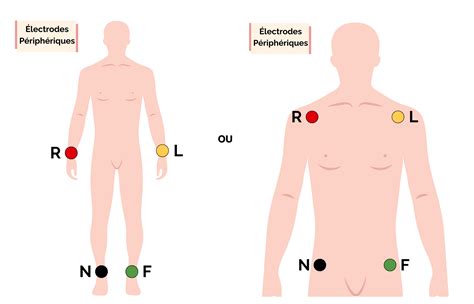

The limb leads consist of four electrodes placed on the limbs: two on the arms and two on the legs. These electrodes are used to record the electrical activity from different angles, providing a comprehensive view of the heart's function.

Right Arm (RA): Placed on the right shoulder or upper arm.
Left Arm (LA): Placed on the left shoulder or upper arm.
Right Leg (RL): Placed on the right lower leg or ankle.
Left Leg (LL): Placed on the left lower leg or ankle.

These electrodes are used to generate the following leads:

Lead I: LA - RA
Lead II: LL - RA
Lead III: LL - LA

Chest Leads

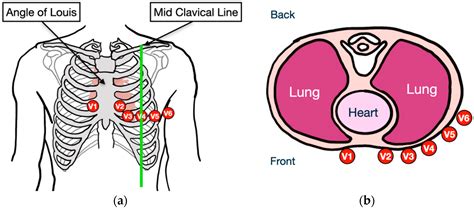

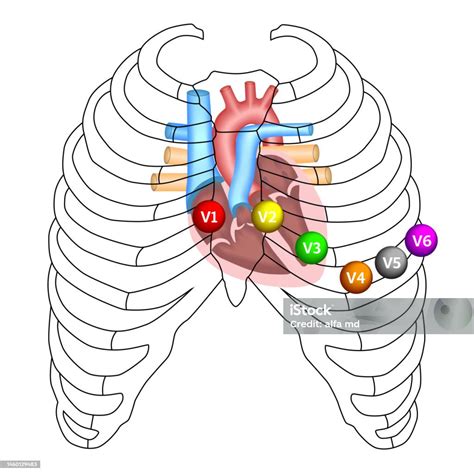

The chest leads, also known as precordial leads, consist of six electrodes placed on the chest. These electrodes capture the electrical activity from different areas of the heart, providing detailed information about the heart's function.

V1: Placed in the fourth intercostal space to the right of the sternum.
V2: Placed in the fourth intercostal space to the left of the sternum.
V3: Placed midway between V2 and V4.
V4: Placed in the fifth intercostal space in the midclavicular line.
V5: Placed horizontally aligned with V4 in the anterior axillary line.
V6: Placed horizontally aligned with V4 in the midaxillary line.

These electrodes are used to generate the following leads:

Common Issues with Incorrect Electrode Placement

Incorrect placement of electrodes can lead to several issues, including:

Distorted Waveforms: Incorrect positioning can cause the ECG waveforms to appear distorted, making it difficult to interpret the results accurately.
Misinterpretation of Results: Misplaced electrodes can lead to misinterpretation of the ECG results, potentially resulting in incorrect diagnoses and treatment plans.
Missed Diagnoses: Inaccurate electrode placement can cause important electrical signals to be missed, leading to undetected cardiac conditions.

To avoid these issues, it is essential to follow the standard electrode positions carefully. Proper training and adherence to guidelines can help ensure accurate ECG readings.

Step-by-Step Guide to Proper Electrode Placement

Following a systematic approach to electrode placement can help ensure accuracy and reliability. Here is a step-by-step guide to proper electrode placement:

Preparation

Before placing the electrodes, ensure the following:

Clean the skin areas where the electrodes will be placed to remove any oils, lotions, or sweat.
Shave any hairy areas to ensure good contact between the electrodes and the skin.
Use alcohol wipes to further clean the skin and allow it to dry completely.

Placing the Limb Leads

Follow these steps to place the limb leads:

Place the Right Arm (RA) electrode on the right shoulder or upper arm.
Place the Left Arm (LA) electrode on the left shoulder or upper arm.
Place the Right Leg (RL) electrode on the right lower leg or ankle.
Place the Left Leg (LL) electrode on the left lower leg or ankle.

Placing the Chest Leads

Follow these steps to place the chest leads:

Place the V1 electrode in the fourth intercostal space to the right of the sternum.
Place the V2 electrode in the fourth intercostal space to the left of the sternum.
Place the V3 electrode midway between V2 and V4.
Place the V4 electrode in the fifth intercostal space in the midclavicular line.
Place the V5 electrode horizontally aligned with V4 in the anterior axillary line.
Place the V6 electrode horizontally aligned with V4 in the midaxillary line.

📝 Note: Ensure that the electrodes are securely attached to the skin to prevent movement during the ECG recording.

Troubleshooting Common Issues

Even with careful placement, issues can arise during ECG recording. Here are some common problems and their solutions:

Poor Signal Quality

If the signal quality is poor, check the following:

Ensure that the electrodes are properly attached and making good contact with the skin.
Check for any loose connections or damaged cables.
Clean the skin and electrodes to remove any debris or moisture.

Artifacts

Artifacts can interfere with the ECG signal, making it difficult to interpret. Common causes of artifacts include:

Patient movement: Ask the patient to remain still during the recording.
Electrical interference: Ensure that the ECG machine is properly grounded and away from sources of electrical interference.
Muscle tremors: Ask the patient to relax and avoid tensing muscles during the recording.

Incorrect Waveforms

If the waveforms appear incorrect, double-check the electrode positions. Ensure that each electrode is placed in the correct location and that there are no reversals or swaps.

If the issue persists, consider using a different set of electrodes or recalibrating the ECG machine.

Special Considerations for Different Patient Populations

Certain patient populations may require special considerations for electrode placement. For example:

Pediatric Patients

In pediatric patients, the smaller size of the body may require adjustments to the standard electrode positions. The electrodes should be placed in proportion to the child's size, ensuring that they capture the heart's electrical activity accurately.

Obese Patients

In obese patients, the excess tissue can interfere with the electrical signals, making it difficult to obtain an accurate ECG. Placing the electrodes in the correct positions and ensuring good contact with the skin can help improve signal quality.

Patients with Chest Deformities

Patients with chest deformities may require adjustments to the standard electrode positions. The electrodes should be placed in locations that provide the best view of the heart's electrical activity, even if they deviate from the standard positions.

Conclusion

The electrodes position in ECG plays a crucial role in obtaining accurate and reliable ECG readings. Proper placement of the electrodes ensures that the ECG machine can capture the heart’s electrical activity accurately, providing valuable diagnostic information. By following the standard electrode positions and troubleshooting common issues, healthcare professionals can ensure that ECG recordings are of high quality and reliable. Understanding the importance of correct electrode placement and adhering to guidelines can help improve patient outcomes and ensure accurate diagnoses.
