Electrocardiography (ECG) is a fundamental tool in cardiology, providing invaluable insights into the electrical activity of the heart. Among its many applications, the Electrocardiography of Arrhythmias stands out as a critical area of focus. Arrhythmias, or abnormal heart rhythms, can range from benign to life-threatening, making accurate diagnosis and management essential. This post delves into the intricacies of ECG in the context of arrhythmias, exploring how this diagnostic tool aids in identifying and managing various types of heart rhythm disorders.
Understanding Arrhythmias
Arrhythmias are disturbances in the heart’s electrical system that affect the rhythm and rate of the heartbeat. They can be categorized into several types, each with distinct characteristics and implications. The most common types include:
- Bradyarrhythmias: Slow heart rhythms, often due to issues with the heart’s natural pacemaker or conduction system.
- Tachyarrhythmias: Fast heart rhythms, which can be further divided into supraventricular (above the ventricles) and ventricular (within the ventricles) tachycardias.
- Atrial Fibrillation (AFib): An irregular and often rapid heart rate that can increase the risk of stroke and heart failure.
- Ventricular Fibrillation (VFib): A chaotic and disorganized heart rhythm that can be fatal if not treated immediately.
The Role of Electrocardiography in Arrhythmia Diagnosis
Electrocardiography is the gold standard for diagnosing arrhythmias. By recording the electrical signals produced by the heart, ECG provides a visual representation of the heart’s activity over time. This information is crucial for identifying the type and severity of an arrhythmia. Key components of an ECG include:
- P Wave: Represents atrial depolarization.
- QRS Complex: Represents ventricular depolarization.
- T Wave: Represents ventricular repolarization.
Each of these components can provide clues about the presence and nature of an arrhythmia. For example, an abnormal P wave might indicate an issue with the atrial conduction, while a widened QRS complex could suggest a ventricular arrhythmia.
Common Arrhythmias and Their ECG Characteristics
Different types of arrhythmias have distinct ECG patterns. Understanding these patterns is essential for accurate diagnosis and treatment. Below are some common arrhythmias and their characteristic ECG features:
| Arrhythmia Type | ECG Characteristics |
|---|---|
| Atrial Fibrillation (AFib) | Irregularly irregular rhythm, absence of P waves, and variable R-R intervals. |
| Atrial Flutter | Regular, rapid atrial rate (usually 250-350 beats per minute) with sawtooth pattern in leads II, III, and aVF. |
| Ventricular Tachycardia (VT) | Wide QRS complexes (>0.12 seconds), regular rhythm, and rate typically >100 beats per minute. |
| Supraventricular Tachycardia (SVT) | Narrow QRS complexes, regular rhythm, and rate typically >100 beats per minute. |
| Bradycardia | Heart rate <60 beats per minute, often with normal P waves and QRS complexes. |
These characteristics help clinicians differentiate between various types of arrhythmias and tailor treatment plans accordingly.
Advanced Techniques in Electrocardiography of Arrhythmias
While standard 12-lead ECG is the cornerstone of arrhythmia diagnosis, advanced techniques can provide additional insights. These include:
- Holter Monitoring: A portable device that records the heart’s electrical activity continuously for 24-48 hours, capturing intermittent arrhythmias that may not be evident on a standard ECG.
- Event Recorders: Similar to Holter monitors but designed to record only when symptoms occur, making them useful for infrequent arrhythmias.
- Implantable Loop Recorders: Small devices implanted under the skin that can monitor heart rhythms for up to three years, providing long-term data on arrhythmias.
- Electrophysiology Studies (EPS): Invasive procedures that involve inserting catheters into the heart to map electrical activity and identify the source of arrhythmias.
These advanced techniques complement standard ECG, offering a more comprehensive view of the heart's electrical activity and aiding in the management of complex arrhythmias.
🔍 Note: Advanced techniques should be used in conjunction with standard ECG for a thorough evaluation of arrhythmias. They are particularly useful in cases where symptoms are intermittent or the standard ECG is inconclusive.
Management and Treatment of Arrhythmias
Once an arrhythmia is diagnosed using Electrocardiography of Arrhythmias, the next step is to determine the appropriate management and treatment strategy. Treatment options vary depending on the type and severity of the arrhythmia. Common approaches include:
- Medications: Antiarrhythmic drugs, beta-blockers, calcium channel blockers, and anticoagulants are often used to control heart rate and rhythm.
- Cardioversion: A procedure that uses electrical shocks to restore a normal heart rhythm, typically used for atrial fibrillation and ventricular tachycardia.
- Catheter Ablation: A minimally invasive procedure that uses radiofrequency energy to destroy the abnormal tissue causing the arrhythmia.
- Implantable Cardioverter-Defibrillators (ICDs): Devices implanted in the chest to monitor heart rhythm and deliver shocks if a life-threatening arrhythmia is detected.
- Pacemakers: Devices that use electrical impulses to regulate the heart’s rhythm, particularly useful for bradyarrhythmias.
The choice of treatment depends on various factors, including the patient's overall health, the type of arrhythmia, and the presence of underlying heart disease.
Challenges and Future Directions in Electrocardiography of Arrhythmias
Despite its effectiveness, Electrocardiography of Arrhythmias faces several challenges. These include:
- Interpretation Complexity: ECG interpretation requires specialized training and experience, and misdiagnosis can occur, especially in complex cases.
- Technological Limitations: Standard ECG may not capture intermittent arrhythmias, necessitating the use of advanced monitoring techniques.
- Patient Compliance: Long-term monitoring devices require patient compliance, which can be challenging for some individuals.

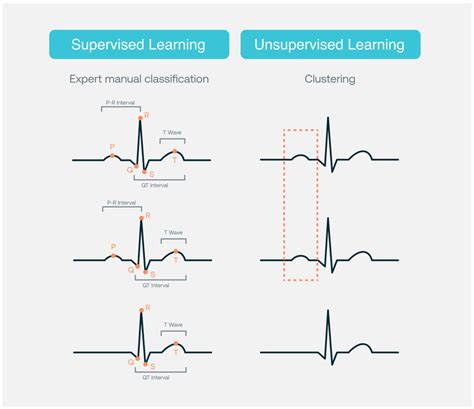

Future advancements in technology, such as artificial intelligence and machine learning, hold promise for improving the accuracy and efficiency of ECG interpretation. These technologies can assist in detecting subtle patterns and predicting arrhythmia risk, enhancing the diagnostic capabilities of Electrocardiography of Arrhythmias.
Additionally, wearable devices and remote monitoring systems are becoming more prevalent, allowing for continuous ECG monitoring and real-time data transmission to healthcare providers. These innovations can significantly improve the management of arrhythmias, especially in patients with chronic conditions.
In conclusion, Electrocardiography of Arrhythmias is a vital tool in the diagnosis and management of heart rhythm disorders. By providing detailed insights into the heart’s electrical activity, ECG enables clinicians to identify and treat arrhythmias effectively. Advanced techniques and future technological advancements are poised to further enhance the capabilities of ECG, ensuring better outcomes for patients with arrhythmias. The continuous evolution of this diagnostic tool underscores its enduring importance in cardiology, offering hope for improved patient care and management of heart rhythm disorders.
