Understanding the importance of a properly functioning electrical system in your home or workplace is crucial for safety and efficiency. One of the most critical components of this system is the electrical ground outlet. This outlet serves as a safety measure, providing a path for electrical current to flow safely to the ground in case of a fault. In this post, we will delve into the significance of electrical ground outlets, their types, installation processes, and maintenance tips to ensure your electrical system remains safe and reliable.
Understanding Electrical Ground Outlets
An electrical ground outlet is designed to protect against electrical shocks and fires by directing excess current to the ground. This is achieved through a grounding wire that connects the outlet to a grounding electrode, typically a metal rod driven into the earth. Grounding outlets are essential in areas where electrical appliances are frequently used, such as kitchens, bathrooms, and garages.
Types of Electrical Ground Outlets
There are several types of electrical ground outlets, each serving different purposes and applications. The most common types include:

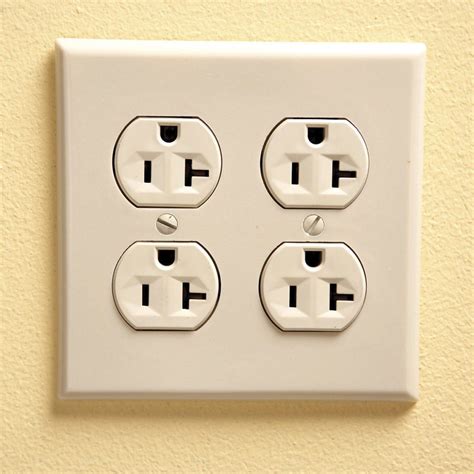

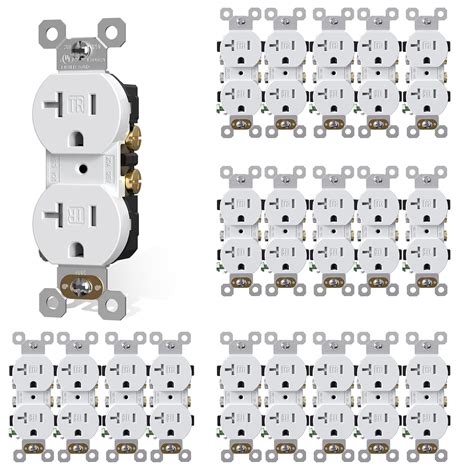

- Three-Prong Outlets (NEMA 5-15R): These are the standard outlets found in most homes and offices. They have two vertical slots and a round grounding pin.
- Ground Fault Circuit Interrupter (GFCI) Outlets: These outlets are designed to protect against electrical shocks by shutting off power when they detect a ground fault. They are commonly used in bathrooms, kitchens, and outdoor areas.
- Arc Fault Circuit Interrupter (AFCI) Outlets: These outlets protect against electrical fires caused by arcing faults. They are often required in bedrooms and living rooms.
- Tamper-Resistant Outlets: These outlets have shutters that prevent foreign objects from being inserted into the slots, making them safer for homes with children.
Installing an Electrical Ground Outlet
Installing an electrical ground outlet requires careful planning and adherence to safety guidelines. Here is a step-by-step guide to help you through the process:
Tools and Materials Needed
- Screwdriver
- Wire stripper
- Pliers
- Voltage tester
- Grounding wire
- Electrical outlet
- Electrical box
Step-by-Step Installation
1. Turn Off Power: Before beginning, turn off the power to the circuit you will be working on at the main electrical panel. Use a voltage tester to ensure the power is off.
2. Remove the Old Outlet: Unscrew the old outlet from the electrical box and pull it out. Disconnect the wires from the outlet.

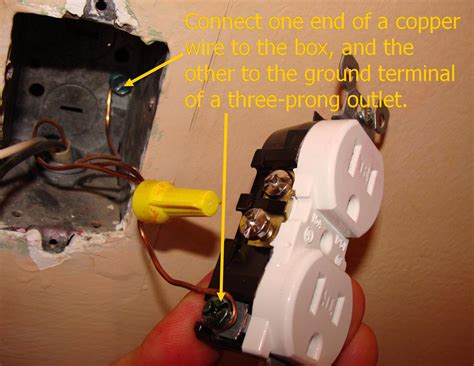

3. Prepare the Grounding Wire: If your electrical box does not have a grounding wire, you will need to run one from the outlet to a grounding electrode. Strip about ½ inch of insulation from the end of the grounding wire.
4. Connect the Wires: Connect the black wire to the brass screw, the white wire to the silver screw, and the grounding wire to the green screw on the new outlet. Tighten the screws securely.
5. Install the Outlet: Place the outlet into the electrical box and secure it with screws. Make sure the outlet is flush with the wall.
6. Restore Power: Turn the power back on at the main electrical panel and test the outlet with a voltage tester to ensure it is functioning correctly.
🔧 Note: Always follow local electrical codes and regulations when installing or replacing electrical outlets. If you are unsure about any part of the process, consult a licensed electrician.
Maintaining Your Electrical Ground Outlets
Maintaining your electrical ground outlets is essential for ensuring their longevity and safety. Regular inspections and maintenance can prevent potential hazards and extend the life of your outlets. Here are some tips for maintaining your electrical ground outlets:
- Regular Inspections: Inspect your outlets regularly for signs of wear, damage, or overheating. Look for discoloration, cracks, or loose connections.
- Test GFCI Outlets: Test your GFCI outlets monthly by pressing the "test" button. The outlet should shut off power, and pressing the "reset" button should restore it.
- Avoid Overloading: Do not overload your outlets with too many devices. Use power strips with built-in surge protection if necessary.
- Keep Outlets Dry: Ensure that outlets in damp areas, such as bathrooms and kitchens, are protected from moisture. Use weather-resistant covers for outdoor outlets.
Common Issues with Electrical Ground Outlets
Despite their importance, electrical ground outlets can sometimes encounter issues that need to be addressed promptly. Here are some common problems and their solutions:
Loose Connections
Loose connections can cause outlets to malfunction or become unsafe. If you notice that a device is not receiving power or the outlet feels loose, it may be due to a loose connection. Tighten the screws on the outlet and ensure all wires are securely connected.
Overheating
Overheating can be a sign of a serious issue, such as a short circuit or overloaded outlet. If an outlet feels hot to the touch, turn off the power immediately and inspect the outlet for signs of damage. Replace the outlet if necessary and consult a licensed electrician if the problem persists.
Ground Faults
Ground faults occur when electrical current flows through an unintended path to the ground. This can happen due to damaged wires, faulty appliances, or improper grounding. If you experience frequent tripping of GFCI outlets, it may indicate a ground fault. Inspect the outlet and connected devices for signs of damage and replace them if necessary.
Worn-Out Outlets
Over time, outlets can become worn out due to frequent use. Signs of a worn-out outlet include discoloration, cracks, or loose connections. Replace worn-out outlets promptly to ensure safety and reliability.
🔧 Note: If you are unsure about the cause of an issue with your electrical ground outlet, it is best to consult a licensed electrician to avoid potential hazards.
Safety Tips for Electrical Ground Outlets
Ensuring the safety of your electrical ground outlets is paramount. Here are some safety tips to keep in mind:
- Use Proper Outlets: Always use outlets that are rated for the devices you are connecting. Avoid using extension cords as a permanent solution.
- Avoid Water Exposure: Keep outlets away from water sources to prevent electrical shocks. Use weather-resistant covers for outdoor outlets.
- Regular Maintenance: Inspect and maintain your outlets regularly to ensure they are in good working condition.
- Professional Installation: If you are unsure about installing or replacing an outlet, consult a licensed electrician to ensure the job is done correctly.
By following these safety tips, you can ensure that your electrical ground outlets remain safe and reliable, protecting your home or workplace from potential hazards.
Comparing Different Types of Electrical Ground Outlets
Choosing the right type of electrical ground outlet depends on your specific needs and the environment in which it will be used. Here is a comparison of different types of electrical ground outlets to help you make an informed decision:
| Type of Outlet | Features | Common Uses |
|---|---|---|
| Three-Prong Outlets (NEMA 5-15R) | Standard outlet with two vertical slots and a round grounding pin | General use in homes and offices |
| Ground Fault Circuit Interrupter (GFCI) Outlets | Protects against electrical shocks by shutting off power when a ground fault is detected | Bathrooms, kitchens, outdoor areas |
| Arc Fault Circuit Interrupter (AFCI) Outlets | Protects against electrical fires caused by arcing faults | Bedrooms, living rooms |
| Tamper-Resistant Outlets | Has shutters that prevent foreign objects from being inserted into the slots | Homes with children |
Each type of outlet has its unique features and benefits, making them suitable for different applications. By understanding the differences, you can choose the right outlet for your specific needs.
In conclusion, electrical ground outlets play a crucial role in ensuring the safety and reliability of your electrical system. By understanding their types, installation processes, and maintenance requirements, you can ensure that your outlets remain safe and functional. Regular inspections, proper installation, and adherence to safety guidelines are essential for maintaining the integrity of your electrical ground outlets. Whether you are installing a new outlet or replacing an old one, following the steps outlined in this post will help you achieve a safe and efficient electrical system.
