Electric Field Equations

Understanding the fundamentals of Electric Field Equations is crucial for anyone delving into the world of electromagnetism and electrical engineering. These equations form the backbone of many applications, from designing circuits to analyzing complex electromagnetic systems. This post will guide you through the basics of electric field equations, their applications, and how to solve them effectively.

Table of Contents

What are Electric Field Equations?

Electric field equations describe the behavior of electric fields in various scenarios. They are derived from fundamental principles of electromagnetism, particularly from Coulomb’s Law and Gauss’s Law. These equations help us understand how charges interact and how electric fields are generated and manipulated.

Basic Concepts of Electric Fields

Before diving into the equations, it’s essential to grasp some basic concepts:

Electric Charge: The fundamental property of matter that causes it to experience a force when placed in an electric field.
Electric Field: A region of space where an electric charge experiences a force.
Coulomb’s Law: The force between two point charges is directly proportional to the product of their charges and inversely proportional to the square of the distance between them.
Gauss’s Law: The flux of the electric field through any closed surface is proportional to the enclosed electric charge.

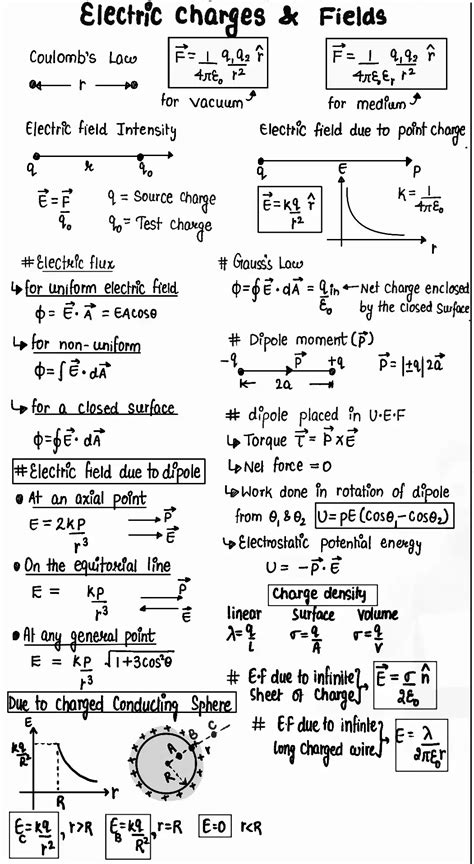

Coulomb’s Law and Electric Field

Coulomb’s Law is the foundation for understanding electric fields. It states that the force (F) between two point charges (q1 and q2) separated by a distance ® is given by:

F = k * (q1 * q2) / r^2

where k is Coulomb’s constant (approximately 8.99 x 10^9 N m^2/C^2).

From Coulomb’s Law, we can derive the electric field (E) at a point due to a point charge (q) as:

E = k * q / r^2

This equation tells us that the electric field is directly proportional to the charge and inversely proportional to the square of the distance from the charge.

Gauss’s Law and Electric Field

Gauss’s Law provides a more general way to calculate electric fields, especially for symmetric charge distributions. It is expressed as:

∮E · dA = Q_enclosed / ε0

where E is the electric field, dA is a differential area element, Q_enclosed is the total charge enclosed by the surface, and ε0 is the permittivity of free space (approximately 8.85 x 10^-12 C^2/N m^2).

Gauss’s Law is particularly useful for calculating electric fields in situations with high symmetry, such as spherical, cylindrical, or planar charge distributions.

Applications of Electric Field Equations

Electric field equations have numerous applications in various fields:

Electrical Engineering: Designing circuits, motors, and generators.
Physics: Studying the behavior of charged particles and electromagnetic waves.
Material Science: Understanding the properties of materials under electric fields.
Biomedical Engineering: Developing medical devices that use electric fields for diagnosis and treatment.

Solving Electric Field Equations

Solving electric field equations involves applying the principles of Coulomb’s Law and Gauss’s Law to specific scenarios. Here are some steps to solve electric field problems:

Identify the Charge Distribution: Determine the type and distribution of charges in the problem.
Choose the Appropriate Law: Decide whether to use Coulomb’s Law or Gauss’s Law based on the symmetry of the charge distribution.
Set Up the Equation: Write down the relevant electric field equation.
Solve for the Electric Field: Perform the necessary calculations to find the electric field.

💡 Note: When using Gauss's Law, choose a Gaussian surface that takes advantage of the symmetry of the charge distribution to simplify the calculation.

Examples of Electric Field Calculations

Let’s go through a couple of examples to illustrate how to apply electric field equations.

Example 1: Electric Field Due to a Point Charge

Calculate the electric field at a distance of 0.5 meters from a point charge of 2 μC.

Using Coulomb’s Law:

E = k * q / r^2

Substitute the values:

E = (8.99 x 10^9 N m^2/C^2) * (2 x 10^-6 C) / (0.5 m)^2

E = 71.92 x 10^3 N/C

So, the electric field at a distance of 0.5 meters from the point charge is 71.92 kN/C.

Example 2: Electric Field Due to a Spherical Charge Distribution

Calculate the electric field inside and outside a uniformly charged sphere of radius R and total charge Q.

Using Gauss’s Law:

For a point inside the sphere (r < R):

E = (1 / (4πε0)) * (Q_enclosed / r^2)

Since Q_enclosed = (Q / (⁴⁄₃)πR^3) * (⁴⁄₃)πr^3 = Q * (r^3 / R^3),

E = (1 / (4πε0)) * (Q * (r^3 / R^3) / r^2) = (Q * r) / (4πε0 * R^3)

For a point outside the sphere (r ≥ R):

E = (1 / (4πε0)) * (Q / r^2)

So, the electric field inside the sphere increases linearly with distance from the center, while outside the sphere, it decreases with the square of the distance.

Advanced Topics in Electric Field Equations

Beyond the basics, there are advanced topics in electric field equations that delve deeper into the complexities of electromagnetism. These include:

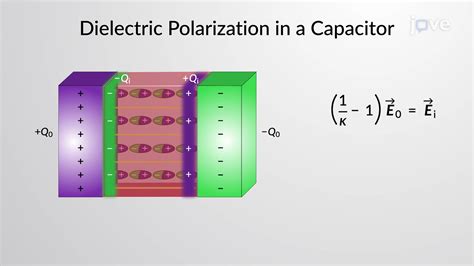

Electric Dipoles: Systems of two equal and opposite charges separated by a small distance.
Electric Multipoles: Systems of charges that can be described by higher-order moments, such as quadrupoles and octupoles.
Electrostatic Potential: The potential energy per unit charge at a point in an electric field.
Maxwell’s Equations: A set of four equations that describe how electric and magnetic fields are generated and altered by each other and by charges and currents.

Electric Field Equations in Different Coordinate Systems

Electric field equations can be expressed in different coordinate systems, depending on the symmetry of the problem. The most common coordinate systems are:

Cartesian Coordinates: Useful for problems with rectangular symmetry.
Cylindrical Coordinates: Suitable for problems with cylindrical symmetry, such as wires and cylinders.
Spherical Coordinates: Ideal for problems with spherical symmetry, such as point charges and spheres.

Here is a table summarizing the electric field equations in different coordinate systems:

Coordinate System	Electric Field Equation
Cartesian	E = -∇V
Cylindrical	E = -∇V = -(∂V/∂r)r̂ - (1/r)(∂V/∂φ)φ̂ - (∂V/∂z)ẑ
Spherical	E = -∇V = -(∂V/∂r)r̂ - (1/r)(∂V/∂θ)θ̂ - (1/r sin θ)(∂V/∂φ)φ̂

💡 Note: The choice of coordinate system can significantly simplify the calculation of electric fields. Always choose the coordinate system that best matches the symmetry of the problem.

Conclusion

Electric field equations are fundamental to understanding the behavior of electric charges and fields. From Coulomb’s Law to Gauss’s Law, these equations provide the tools necessary to analyze and design a wide range of electrical systems. By mastering these equations and their applications, you can gain a deeper understanding of electromagnetism and its practical uses. Whether you’re a student, engineer, or researcher, a solid grasp of electric field equations is essential for success in the field of electrical engineering and physics.
