Eclipse Jdialog Design View

Creating a user-friendly and visually appealing graphical user interface (GUI) is a crucial aspect of software development. One of the powerful tools that developers often turn to for this purpose is the Eclipse IDE, which offers a robust set of features for designing and implementing GUIs. Among these features, the Eclipse JDialog Design View stands out as a particularly useful component for creating dialog boxes that enhance user interaction. This post will delve into the intricacies of the Eclipse JDialog Design View, providing a comprehensive guide on how to effectively use it to design dialogs that are both functional and aesthetically pleasing.

Table of Contents

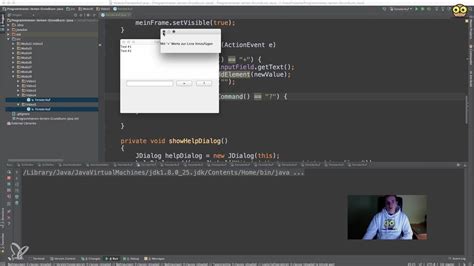

Understanding the Eclipse JDialog Design View

The Eclipse JDialog Design View is a visual design tool integrated into the Eclipse IDE that allows developers to create and customize dialog boxes without writing extensive code. This tool is part of the Eclipse WindowBuilder, which provides a drag-and-drop interface for designing Java Swing and SWT applications. The Eclipse JDialog Design View is particularly useful for developers who want to create dialogs that are easy to use and visually appealing.

Dialog boxes are essential components in many applications, serving various purposes such as displaying messages, collecting user input, and confirming actions. The Eclipse JDialog Design View simplifies the process of creating these dialogs by providing a visual interface where developers can design the layout, add components, and configure properties.

Getting Started with Eclipse JDialog Design View

To begin using the Eclipse JDialog Design View, you need to have the Eclipse IDE installed along with the WindowBuilder plugin. Here are the steps to get started:

Open Eclipse IDE.
Create a new Java project or open an existing one.
Right-click on the project and select New > Other....
In the dialog that appears, expand the WindowBuilder category and select Swing Designer > JDialog.
Click Next and provide a name for your dialog. Click Finish to create the dialog.

Once the dialog is created, you will be presented with the Eclipse JDialog Design View, where you can start designing your dialog.

Designing Your Dialog

The Eclipse JDialog Design View provides a variety of tools and features to help you design your dialog. Here are some key aspects to consider:

Layout Management

One of the most important aspects of designing a dialog is managing the layout of its components. The Eclipse JDialog Design View supports various layout managers, including:

BorderLayout: Divides the dialog into five regions (North, South, East, West, and Center).
FlowLayout: Arranges components in a left-to-right flow, wrapping to the next line as needed.
GridLayout: Arranges components in a grid of cells.
GridBagLayout: Provides a flexible grid layout with more control over component placement.

To set the layout manager, select the dialog in the design view and use the properties panel to choose the desired layout manager.

Adding Components

The Eclipse JDialog Design View allows you to add various components to your dialog, such as labels, text fields, buttons, and more. To add a component:

Drag the component from the palette onto the dialog.
Position the component as desired.
Use the properties panel to configure the component's properties, such as text, size, and behavior.

You can also add custom components or third-party components to your dialog by importing them into your project and dragging them onto the design view.

Configuring Properties

Each component in the Eclipse JDialog Design View has a set of properties that you can configure to customize its appearance and behavior. To configure a component's properties:

Select the component in the design view.
Use the properties panel to set properties such as text, font, color, and event handlers.

For example, you can set the text of a label, the font of a text field, or the action performed when a button is clicked.

Handling Events

In addition to designing the layout and appearance of your dialog, you also need to handle events to make it functional. The Eclipse JDialog Design View allows you to add event handlers to components easily. Here's how:

Select the component for which you want to add an event handler.
In the properties panel, find the event you want to handle (e.g., actionPerformed for a button).
Click the event and select Add Event Handler.
In the dialog that appears, choose the method to handle the event and click OK.

This will generate the necessary code in your Java class, and you can add the logic to handle the event.

💡 Note: Make sure to test your dialog thoroughly to ensure that all events are handled correctly and that the dialog behaves as expected.

Customizing the Appearance

The Eclipse JDialog Design View provides various options for customizing the appearance of your dialog. You can change the background color, font, and other visual properties to match the look and feel of your application. Here are some tips for customizing the appearance:

Use the properties panel to set the background color and font of the dialog and its components.
Add images or icons to components to make them more visually appealing.
Use borders and spacing to create a clean and organized layout.

You can also create custom styles and themes by defining CSS or using third-party libraries that provide additional styling options.

To illustrate how to use the Eclipse JDialog Design View, let's create a simple login dialog. This dialog will prompt the user to enter a username and password and will display a message if the login is successful or failed.

Follow these steps to create the login dialog:

Create a new JDialog using the Eclipse JDialog Design View as described earlier.
Set the layout manager to GridBagLayout for more flexible component placement.
Add the following components to the dialog:

Component	Text/Label	GridBagConstraints
Label	Username:	Gridx: 0, Gridy: 0
TextField		Gridx: 1, Gridy: 0
Label	Password:	Gridx: 0, Gridy: 1
PasswordField		Gridx: 1, Gridy: 1
Button	Login	Gridx: 1, Gridy: 2
Label	Message	Gridx: 0, Gridy: 3, Gridwidth: 2

Configure the properties of each component as needed. For example, set the text of the labels and buttons, and configure the text field and password field to accept user input.

Add event handlers to the login button to handle the login logic. For example:

private void loginButtonActionPerformed(java.awt.event.ActionEvent evt) {
    String username = usernameTextField.getText();
    String password = passwordTextField.getText();

    if (username.equals("user") && password.equals("pass")) {
        messageLabel.setText("Login successful!");
    } else {
        messageLabel.setText("Login failed. Please try again.");
    }
}

This code checks the entered username and password against hardcoded values and displays a message indicating whether the login was successful or failed.

💡 Note: In a real-world application, you would typically validate the username and password against a database or an authentication service.

Run the application to test the login dialog. Enter a username and password, and click the login button to see the message displayed.

Advanced Tips and Tricks

Once you are comfortable with the basics of the Eclipse JDialog Design View, you can explore more advanced features and techniques to enhance your dialogs. Here are some tips and tricks to help you get the most out of the tool:

Use Custom Components: Create custom components or use third-party libraries to add unique functionality to your dialogs.
Implement Validation: Add validation logic to ensure that user input is correct before proceeding.
Handle Multiple Events: Use event listeners to handle multiple events and provide a more interactive user experience.
Create Reusable Dialogs: Design dialogs that can be reused in different parts of your application to save time and effort.

By mastering these advanced techniques, you can create dialogs that are not only functional but also visually appealing and user-friendly.

In conclusion, the Eclipse JDialog Design View is a powerful tool for designing dialog boxes in Java applications. By providing a visual interface for layout management, component addition, and property configuration, it simplifies the process of creating dialogs that enhance user interaction. Whether you are a beginner or an experienced developer, the Eclipse JDialog Design View offers a range of features and options to help you create dialogs that are both functional and aesthetically pleasing. With practice and exploration, you can unlock the full potential of this tool and create dialogs that meet the needs of your users.
