Understanding the intricacies of an ECG sinus rhythm normal is crucial for healthcare professionals and anyone interested in cardiovascular health. An electrocardiogram (ECG) is a diagnostic tool that records the electrical activity of the heart over a period of time. This non-invasive test is essential for detecting various heart conditions, including arrhythmias, heart attacks, and other cardiac abnormalities. One of the most common and reassuring findings on an ECG is a normal sinus rhythm, which indicates that the heart is beating regularly and efficiently.
What is an ECG?
An ECG, or electrocardiogram, is a graphical representation of the heart’s electrical activity. It is recorded by placing electrodes on the skin, which detect the tiny electrical changes that occur during each heartbeat. These changes are then amplified and recorded as a waveform on a strip of paper or a digital display. The ECG provides valuable information about the heart’s rhythm, rate, and the presence of any abnormalities.
Understanding Sinus Rhythm

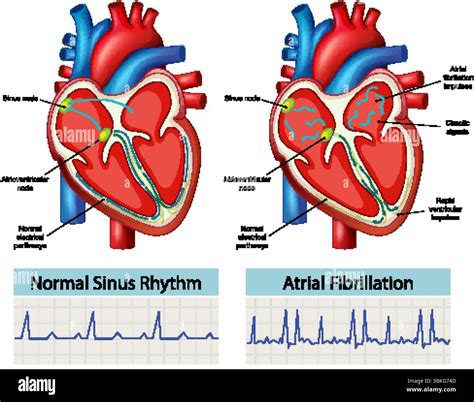

Sinus rhythm refers to the normal electrical activity of the heart, which originates from the sinoatrial (SA) node, located in the right atrium. The SA node acts as the heart’s natural pacemaker, generating electrical impulses that spread through the atria, causing them to contract. These impulses then travel to the atrioventricular (AV) node, which delays the signal briefly before transmitting it to the ventricles, causing them to contract. This coordinated sequence of electrical activity results in a regular heartbeat.

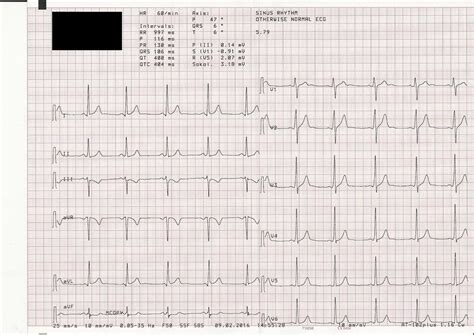

Characteristics of a Normal ECG Sinus Rhythm
A normal ECG sinus rhythm is characterized by several key features:
- Regular Rhythm: The intervals between each heartbeat are consistent, indicating a regular rhythm.
- Normal Rate: The heart rate typically ranges between 60 and 100 beats per minute (bpm) in adults. In children, the normal range varies with age.
- P Wave: Each heartbeat begins with a P wave, which represents the depolarization of the atria. The P wave should be upright in leads I, II, and aVF and should have a smooth, rounded shape.
- PR Interval: The PR interval measures the time from the beginning of the P wave to the start of the QRS complex. A normal PR interval ranges from 0.12 to 0.20 seconds.
- QRS Complex: The QRS complex represents the depolarization of the ventricles. It should be narrow, with a duration of less than 0.12 seconds.
- ST Segment: The ST segment is the flat line between the QRS complex and the T wave. It should be isoelectric, meaning it should be at the same level as the baseline.
- T Wave: The T wave represents the repolarization of the ventricles. It should be upright in most leads and have a smooth, rounded shape.
Interpreting an ECG Sinus Rhythm Normal
Interpreting an ECG involves analyzing the waveform for any deviations from the normal pattern. When interpreting an ECG sinus rhythm normal, healthcare professionals look for the following:
- Rate: Calculate the heart rate by counting the number of QRS complexes in a 6-second strip and multiplying by 10. Alternatively, use the large squares on the ECG paper to estimate the rate.
- Rhythm: Assess the regularity of the rhythm by examining the intervals between R waves. A regular rhythm indicates a normal sinus rhythm.
- P Waves: Ensure that each QRS complex is preceded by a P wave and that the P waves are upright and uniform in shape.
- PR Interval: Measure the PR interval to ensure it falls within the normal range.
- QRS Complex: Evaluate the width and shape of the QRS complex to ensure it is narrow and normal in appearance.
- ST Segment and T Wave: Check the ST segment for any deviations from the baseline and ensure the T wave is upright and smooth.
Common Abnormalities in ECG Sinus Rhythm
While a normal sinus rhythm is reassuring, there are several abnormalities that can be detected on an ECG. Some of the most common abnormalities include:
- Sinus Bradycardia: A heart rate below 60 bpm in adults, which can be normal in athletes or during sleep but may indicate a problem in other individuals.
- Sinus Tachycardia: A heart rate above 100 bpm, which can be caused by various factors such as stress, exercise, or underlying medical conditions.

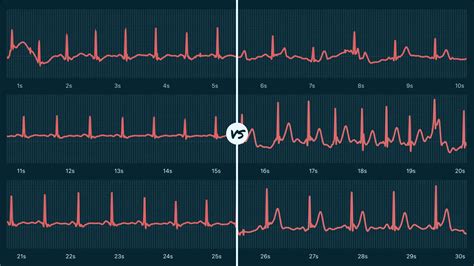

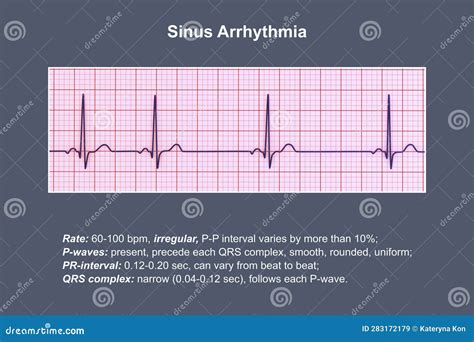

- Sinus Arrhythmia: A variation in the heart rate, often seen in children and young adults, which is usually benign but can sometimes indicate underlying issues.
- Atrial Fibrillation: An irregular and often rapid heart rate that occurs when the atria beat chaotically. This condition can lead to blood clots and stroke.
- Ventricular Tachycardia: A rapid heart rate originating from the ventricles, which can be life-threatening and requires immediate medical attention.
Importance of Regular ECG Monitoring
Regular ECG monitoring is essential for detecting and managing heart conditions. For individuals with known cardiac issues, regular ECGs can help track the progression of the disease and the effectiveness of treatment. Even for those without symptoms, routine ECGs can provide valuable baseline information and detect early signs of heart disease. Early detection and intervention can significantly improve outcomes and quality of life.
Factors Affecting ECG Sinus Rhythm
Several factors can affect the ECG sinus rhythm, including:
- Age: The normal heart rate and rhythm can vary with age. Children typically have higher heart rates than adults.
- Physical Activity: Exercise and physical activity can temporarily increase the heart rate and alter the ECG pattern.
- Medications: Certain medications, such as beta-blockers and calcium channel blockers, can affect the heart rate and rhythm.
- Electrolyte Imbalances: Abnormal levels of electrolytes, such as potassium and magnesium, can alter the ECG pattern and lead to arrhythmias.
- Underlying Medical Conditions: Conditions such as thyroid disorders, anemia, and heart disease can affect the ECG sinus rhythm.
ECG Sinus Rhythm Normal in Different Age Groups
The normal ECG sinus rhythm can vary slightly between different age groups. Here is a brief overview:
| Age Group | Normal Heart Rate (bpm) | Normal PR Interval (seconds) | Normal QRS Duration (seconds) |
|---|---|---|---|
| Newborns (0-1 month) | 100-180 | 0.08-0.12 | 0.04-0.08 |
| Infants (1-12 months) | 80-160 | 0.08-0.12 | 0.04-0.08 |
| Children (1-10 years) | 60-120 | 0.08-0.12 | 0.04-0.08 |
| Adults (18-65 years) | 60-100 | 0.12-0.20 | 0.06-0.10 |
| Elderly (>65 years) | 60-100 | 0.12-0.20 | 0.06-0.10 |
📝 Note: These ranges are general guidelines and can vary based on individual factors and underlying health conditions.
Advanced ECG Techniques
In addition to the standard 12-lead ECG, there are advanced techniques that provide more detailed information about the heart’s electrical activity. These include:
- Holter Monitoring: A portable device that records the heart’s electrical activity continuously for 24 to 48 hours or longer. This is useful for detecting intermittent arrhythmias that may not be captured on a standard ECG.
- Event Monitoring: A device that records the heart’s electrical activity when the patient experiences symptoms. This is useful for diagnosing infrequent arrhythmias.
- Stress Testing: An ECG performed during exercise or pharmacological stress to evaluate the heart’s response to increased demand. This can help detect coronary artery disease and other cardiac conditions.
- Signal-Averaged ECG: A technique that enhances the detection of low-amplitude signals, such as late potentials, which can indicate the presence of ventricular arrhythmias.
Conclusion
Understanding an ECG sinus rhythm normal is fundamental for assessing cardiovascular health. A normal sinus rhythm indicates that the heart is functioning efficiently, with a regular and coordinated sequence of electrical activity. Regular ECG monitoring is essential for detecting and managing heart conditions, and advanced techniques provide additional insights into the heart’s electrical activity. By recognizing the characteristics of a normal ECG sinus rhythm and being aware of common abnormalities, healthcare professionals can provide timely and effective care, improving outcomes and quality of life for their patients.
