Electrocardiogram (ECG) is a crucial diagnostic tool in cardiology, providing valuable insights into the heart's electrical activity. Understanding the ECG leads locations is fundamental for accurate interpretation and diagnosis. This guide will walk you through the essentials of ECG leads, their placement, and the importance of correct positioning.
Understanding ECG Leads
ECG leads are the electrodes placed on the body to detect the electrical signals generated by the heart. There are two main types of ECG leads: limb leads and chest leads. Each type serves a specific purpose in capturing different aspects of the heart’s electrical activity.
Limb Leads
The limb leads consist of four electrodes placed on the limbs: two on the arms and two on the legs. These leads are used to create three bipolar leads (I, II, and III) and three unipolar leads (aVR, aVL, and aVF).
Placement of Limb Leads
The correct placement of limb leads is crucial for accurate ECG readings. Here are the standard locations for the limb leads:
- Right Arm (RA): Place the electrode on the right shoulder or upper arm.
- Left Arm (LA): Place the electrode on the left shoulder or upper arm.
- Right Leg (RL): Place the electrode on the right lower leg or ankle.
- Left Leg (LL): Place the electrode on the left lower leg or ankle.
Importance of Correct Placement
Incorrect placement of limb leads can lead to misinterpretation of the ECG results. For example, swapping the right and left arm electrodes can invert the QRS complex in leads I and aVL, potentially leading to a misdiagnosis. Therefore, it is essential to follow the standard ECG leads locations guidelines meticulously.
Chest Leads
Chest leads, also known as precordial leads, are placed on the chest to capture the heart’s electrical activity from different angles. There are six chest leads, labeled V1 through V6.

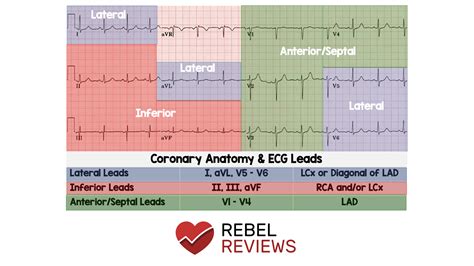

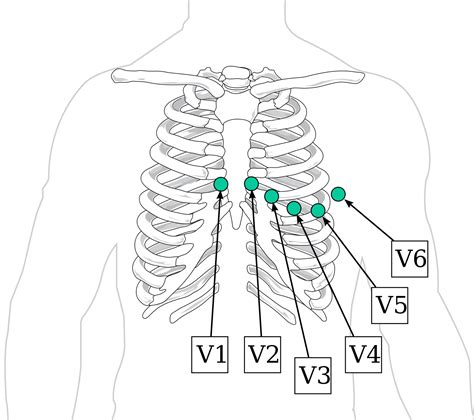

Placement of Chest Leads
The placement of chest leads is more specific and requires precise positioning to ensure accurate readings. Here are the standard locations for the chest leads:
| Lead | Location |
|---|---|
| V1 | Fourth intercostal space, right sternal border |
| V2 | Fourth intercostal space, left sternal border |
| V3 | Midway between V2 and V4 |
| V4 | Fifth intercostal space, midclavicular line |
| V5 | Anterior axillary line, same horizontal level as V4 |
| V6 | Midaxillary line, same horizontal level as V4 and V5 |
Importance of Correct Placement
Correct placement of chest leads is vital for accurate diagnosis. For instance, V1 and V2 are crucial for detecting right ventricular hypertrophy, while V5 and V6 are essential for diagnosing left ventricular hypertrophy. Any deviation from the standard ECG leads locations can result in inaccurate diagnoses and inappropriate treatment plans.
🔍 Note: Always ensure the skin is clean and dry before placing the electrodes to improve conductivity and accuracy.
Common Mistakes in ECG Lead Placement
Even with the best intentions, mistakes can occur during ECG lead placement. Some common errors include:
- Swapping the right and left arm electrodes.
- Placing the chest leads too high or too low on the chest.
- Using improperly prepared skin, leading to poor conductivity.
- Loose or poorly adhered electrodes, causing intermittent signals.
These mistakes can lead to inaccurate ECG readings and potential misdiagnoses. Therefore, it is essential to follow the standard ECG leads locations guidelines and double-check the placement before starting the ECG recording.
Tips for Accurate ECG Lead Placement
To ensure accurate ECG readings, follow these tips for proper lead placement:
- Use a standard ECG lead placement diagram as a reference.
- Clean the skin with alcohol or an abrasive pad to remove oils and dead skin cells.
- Apply conductive gel to the electrodes to improve conductivity.
- Secure the electrodes firmly to prevent movement during the recording.
- Double-check the placement of all leads before starting the ECG recording.
By following these tips, you can minimize errors and ensure accurate ECG readings.
🔍 Note: Regularly inspect the electrodes and leads for any signs of wear or damage to ensure optimal performance.
Conclusion
Understanding the ECG leads locations is essential for accurate ECG interpretation and diagnosis. Proper placement of limb and chest leads ensures that the electrical signals generated by the heart are captured accurately, providing valuable insights into the heart’s condition. By following the standard guidelines and avoiding common mistakes, healthcare professionals can ensure reliable ECG readings and appropriate treatment plans. Always remember that the accuracy of an ECG depends on the correct placement of the leads, so attention to detail is crucial.
