Ecg Leads Location

Electrocardiogram (ECG) is a crucial diagnostic tool in cardiology, providing valuable insights into the heart's electrical activity. Proper placement of ECG leads is essential for accurate readings and reliable diagnoses. Understanding the ECG leads location is fundamental for healthcare professionals to ensure the correct interpretation of ECG results. This guide will delve into the specifics of ECG lead placement, the importance of accurate positioning, and common pitfalls to avoid.

Understanding ECG Leads

An ECG machine records the electrical signals generated by the heart through electrodes placed on the body. These electrodes are connected to the ECG machine via wires, and the signals are displayed as waveforms on a monitor or printed on paper. The standard 12-lead ECG provides a comprehensive view of the heart’s electrical activity from different angles.

Standard ECG Leads Location

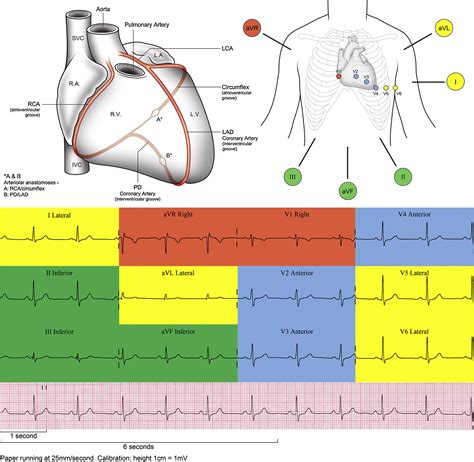

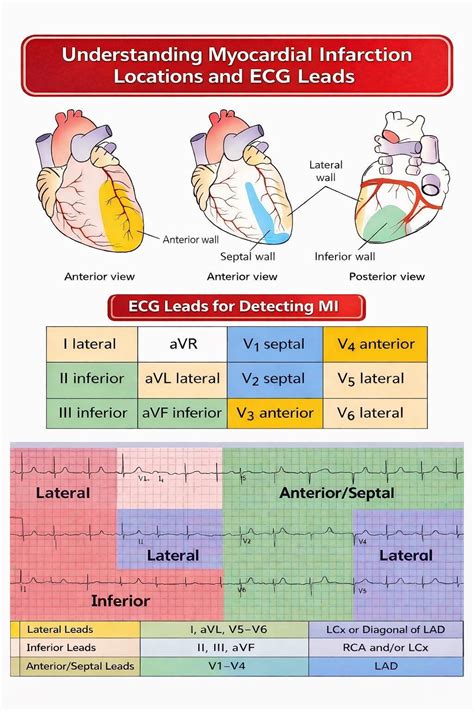

The 12-lead ECG consists of three types of leads: limb leads, augmented limb leads, and chest leads. Each type has specific ECG leads location requirements to capture different aspects of the heart’s electrical activity.

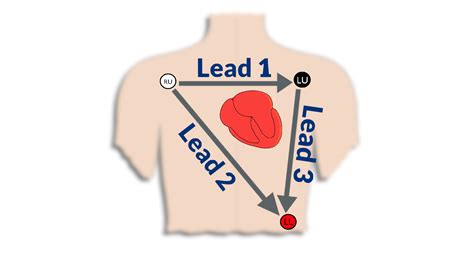

Limb Leads

The limb leads are placed on the extremities and include the right arm (RA), left arm (LA), right leg (RL), and left leg (LL). These leads are used to record the electrical activity from the frontal plane of the heart.

Lead	Color	Location
Right Arm (RA)	Black	Right shoulder or upper arm
Left Arm (LA)	Red	Left shoulder or upper arm
Right Leg (RL)	Green	Right lower abdomen or thigh
Left Leg (LL)	Yellow	Left lower abdomen or thigh

Augmented Limb Leads

The augmented limb leads (aVR, aVL, aVF) are derived from the limb leads and provide additional views of the heart’s electrical activity. These leads are not placed directly on the body but are mathematically derived from the limb leads.

Lead	Derivation	View
aVR	Right arm positive, left arm and left leg negative	Right upper chest
aVL	Left arm positive, right arm and left leg negative	Left upper chest
aVF	Left leg positive, right arm and left arm negative	Inferior wall of the heart

Chest Leads

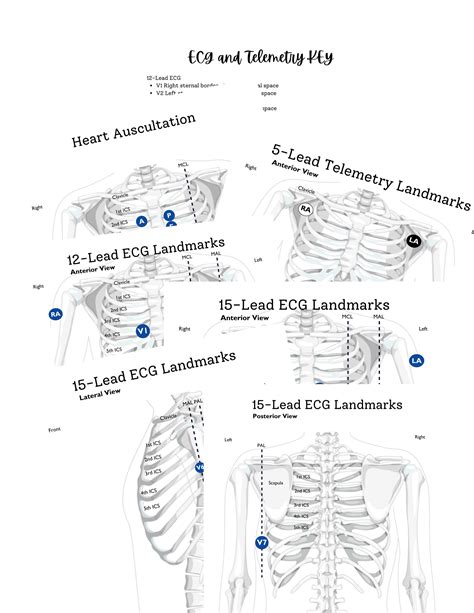

The chest leads (V1 to V6) are placed directly on the chest wall and provide views of the heart’s electrical activity from the horizontal plane. Proper ECG leads location for chest leads is crucial for accurate diagnosis.

Lead	Location
V1	Fourth intercostal space, right sternal border
V2	Fourth intercostal space, left sternal border
V3	Midway between V2 and V4
V4	Fifth intercostal space, midclavicular line
V5	Anterior axillary line, same horizontal level as V4
V6	Midaxillary line, same horizontal level as V4 and V5

Importance of Accurate ECG Leads Location

Accurate placement of ECG leads is vital for several reasons:

Diagnostic Accuracy: Incorrect lead placement can lead to misinterpretation of ECG results, potentially resulting in incorrect diagnoses and inappropriate treatment.
Patient Safety: Proper lead placement ensures that the ECG machine captures the heart’s electrical activity accurately, reducing the risk of missed diagnoses and ensuring timely intervention.
Consistency: Consistent lead placement allows for reliable comparisons between different ECGs taken over time, which is essential for monitoring changes in a patient’s condition.

Common Pitfalls in ECG Leads Location

Despite the importance of accurate lead placement, several common pitfalls can occur. Being aware of these issues can help healthcare professionals avoid errors.

Incorrect Lead Placement

One of the most common errors is placing the leads in the wrong locations. This can happen due to lack of training, haste, or patient discomfort. For example, placing the V1 lead too high or too low can affect the interpretation of the ECG.

Poor Skin Preparation

Inadequate skin preparation can lead to poor electrode contact, resulting in artifacts and inaccurate readings. It is essential to clean the skin, remove any hair, and apply conductive gel to ensure good contact.

Lead Reversal

Reversing the leads, especially the limb leads, can significantly alter the ECG results. For instance, swapping the right and left arm leads can change the polarity of the QRS complex, leading to misdiagnosis.

🔍 Note: Always double-check the lead placement and ensure that the electrodes are securely attached to the skin.

Steps for Proper ECG Leads Location

Following a systematic approach to placing ECG leads can help ensure accuracy and consistency. Here are the steps for proper ECG leads location:

Preparation

Before placing the leads, prepare the patient and the equipment:

Explain the procedure to the patient to ensure cooperation.
Clean the skin areas where the electrodes will be placed to remove any oils or dirt.
Apply conductive gel to the electrodes to improve contact.

Placing Limb Leads

Place the limb leads as follows:

Right arm (RA) lead: Right shoulder or upper arm.
Left arm (LA) lead: Left shoulder or upper arm.
Right leg (RL) lead: Right lower abdomen or thigh.
Left leg (LL) lead: Left lower abdomen or thigh.

Placing Chest Leads

Place the chest leads in the correct anatomical positions:

V1: Fourth intercostal space, right sternal border.
V2: Fourth intercostal space, left sternal border.
V3: Midway between V2 and V4.
V4: Fifth intercostal space, midclavicular line.
V5: Anterior axillary line, same horizontal level as V4.
V6: Midaxillary line, same horizontal level as V4 and V5.

Connecting the Leads

Connect the electrodes to the ECG machine using the appropriate cables. Ensure that the cables are securely attached and that there are no loose connections.

Recording the ECG

Once the leads are in place, record the ECG according to the machine’s instructions. Ensure that the patient remains still during the recording to avoid artifacts.

🔍 Note: Always verify the lead placement by checking the ECG waveforms on the monitor. If any leads are misplaced, correct them immediately and re-record the ECG.

Troubleshooting Common Issues

Even with careful preparation, issues can arise during ECG recording. Here are some common problems and their solutions:

Artifacts

Artifacts can be caused by patient movement, poor electrode contact, or electrical interference. To minimize artifacts:

Ensure the patient is comfortable and still during the recording.
Check the electrode contact and reapply conductive gel if necessary.
Move the patient away from sources of electrical interference.

Lead Reversal

If lead reversal is suspected, check the ECG waveforms for abnormal patterns. Correct the lead placement and re-record the ECG.

Inadequate Signal

If the ECG signal is weak or absent, check the following:

Ensure all electrodes are properly attached and making good contact with the skin.
Verify that the cables are securely connected to both the electrodes and the ECG machine.
Check the battery or power supply of the ECG machine.

🔍 Note: Regular maintenance and calibration of the ECG machine can help prevent technical issues.

Conclusion

Proper ECG leads location is crucial for accurate diagnosis and patient safety. Understanding the correct placement of limb, augmented limb, and chest leads, as well as the importance of accurate positioning, can help healthcare professionals obtain reliable ECG results. By following a systematic approach to lead placement and being aware of common pitfalls, healthcare professionals can ensure the accuracy and consistency of ECG recordings. Regular training and attention to detail are essential for maintaining high standards in ECG practice.
