Electrocardiogram (ECG) is a crucial diagnostic tool in cardiology, providing valuable insights into the heart's electrical activity. Proper ECG lead placement is essential for accurate readings and reliable diagnoses. This guide will walk you through the steps of ECG lead placement, the importance of correct positioning, and common mistakes to avoid.
Understanding ECG Leads
An ECG machine uses electrodes placed on the body to detect the electrical signals produced by the heart. These electrodes are connected to the ECG machine via wires, and the signals are recorded as waveforms on a graph. The standard 12-lead ECG provides a comprehensive view of the heart’s electrical activity from different angles.
Standard ECG Lead Placement
The 12-lead ECG consists of three types of leads: limb leads, augmented limb leads, and chest leads. Each type has specific positions for accurate readings.
Limb Leads
The limb leads are placed on the extremities and include the right arm (RA), left arm (LA), right leg (RL), and left leg (LL). These leads are used to record the electrical activity from the frontal plane of the heart.
| Lead | Position |
|---|---|
| RA (Right Arm) | Right shoulder or upper arm |
| LA (Left Arm) | Left shoulder or upper arm |
| RL (Right Leg) | Right lower abdomen or thigh |
| LL (Left Leg) | Left lower abdomen or thigh |
Augmented Limb Leads
The augmented limb leads (aVR, aVL, aVF) are derived from the limb leads and provide additional views of the heart’s electrical activity.
| Lead | Position |
|---|---|
| aVR | Right shoulder or upper arm (same as RA) |
| aVL | Left shoulder or upper arm (same as LA) |
| aVF | Left lower abdomen or thigh (same as LL) |

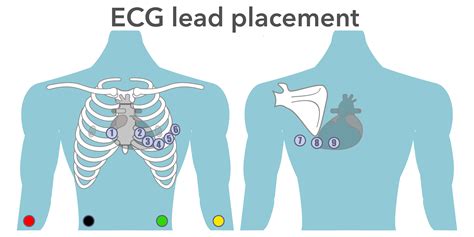

Chest Leads
The chest leads (V1 to V6) are placed on the chest wall and provide views of the heart’s electrical activity from the horizontal plane. Proper ECG lead placement for chest leads is crucial for accurate diagnosis.
| Lead | Position |
|---|---|
| V1 | Fourth intercostal space, right sternal border |
| V2 | Fourth intercostal space, left sternal border |
| V3 | Midway between V2 and V4 |
| V4 | Fifth intercostal space, midclavicular line |
| V5 | Anterior axillary line, same horizontal level as V4 |
| V6 | Midaxillary line, same horizontal level as V4 and V5 |
Step-by-Step Guide to ECG Lead Placement
Follow these steps for accurate ECG lead placement:
- Prepare the patient by explaining the procedure and ensuring they are comfortable.
- Clean the skin areas where the electrodes will be placed to remove any oils or dirt that could interfere with the signal.
- Place the limb leads on the respective positions as described above. Ensure the electrodes are securely attached and the wires are not crossed.
- Place the chest leads in the correct positions. Use a marker or tape to ensure the electrodes are placed accurately.
- Connect the electrodes to the ECG machine and ensure all wires are securely attached.
- Perform a test recording to check the quality of the signals. Adjust the electrodes if necessary.
- Record the ECG according to the machine’s instructions.
🔍 Note: Always follow the manufacturer's instructions for the specific ECG machine being used. Different machines may have slight variations in lead placement and setup.
Common Mistakes in ECG Lead Placement
Incorrect ECG lead placement can lead to inaccurate readings and misdiagnosis. Some common mistakes to avoid include:
- Placing electrodes on bony prominences or areas with poor skin contact.
- Crossing the wires or placing them incorrectly on the ECG machine.
- Not cleaning the skin properly before placing the electrodes.
- Placing the chest leads too high or too low on the chest wall.
- Not securing the electrodes properly, leading to movement artifacts.
Importance of Correct ECG Lead Placement
Accurate ECG lead placement is vital for several reasons:
- Diagnostic Accuracy: Proper placement ensures that the ECG machine captures the heart’s electrical activity accurately, leading to reliable diagnoses.
- Patient Safety: Incorrect lead placement can result in misdiagnosis, leading to inappropriate treatment and potential harm to the patient.
- Efficiency: Correct placement saves time and reduces the need for repeat tests, improving the efficiency of healthcare delivery.
- Consistency: Standardized lead placement ensures consistency in ECG readings, making it easier to compare results over time.
Troubleshooting Common Issues
Even with careful ECG lead placement, issues can arise. Here are some common problems and their solutions:
- Poor Signal Quality: Check for loose electrodes, poor skin contact, or interference from other electrical devices. Clean the skin and secure the electrodes properly.
- Artifacts: Movement artifacts can be minimized by ensuring the patient is comfortable and still during the recording. Secure the electrodes firmly to prevent movement.
- Incorrect Lead Placement: Double-check the positions of all electrodes. Use anatomical landmarks to ensure accurate placement.
- Electrode Displacement: Regularly monitor the electrodes during the recording to ensure they remain in place.
🔍 Note: If issues persist, consult the ECG machine's user manual or seek assistance from a healthcare professional experienced in ECG procedures.
Special Considerations
Certain patient conditions may require special considerations for ECG lead placement:
- Obesity: Ensure the electrodes are placed on areas with good skin contact. Use additional electrodes if necessary to improve signal quality.
- Edema: Avoid placing electrodes on areas with significant swelling. Clean the skin thoroughly to remove any excess fluid.
- Skin Conditions: Be cautious with patients who have skin conditions such as eczema or psoriasis. Use hypoallergenic electrodes if necessary.
- Pacemakers and Implantable Devices: Ensure the electrodes are not placed directly over the device to avoid interference.
Proper ECG lead placement is a critical skill for healthcare professionals. By following the guidelines and avoiding common mistakes, you can ensure accurate and reliable ECG readings, leading to better patient outcomes.
In conclusion, mastering the art of ECG lead placement is essential for accurate cardiac diagnostics. By understanding the different types of leads, following the correct placement procedures, and troubleshooting common issues, healthcare professionals can provide reliable and efficient care to their patients. Proper lead placement not only enhances diagnostic accuracy but also ensures patient safety and consistency in ECG readings. Always remember to follow best practices and seek assistance when needed to maintain the highest standards of care.
