Earned Value Analysis

Project management is a complex field that requires meticulous planning, execution, and monitoring to ensure successful project completion. One of the most powerful tools in a project manager's arsenal is Earned Value Analysis (EVA). This method provides a comprehensive approach to measuring project performance and predicting future outcomes. By integrating scope, time, and cost data, EVA offers insights that help managers make informed decisions and keep projects on track.

Table of Contents

Understanding Earned Value Analysis

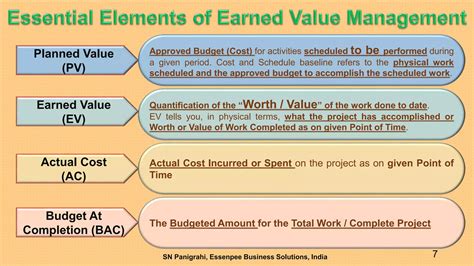

Earned Value Analysis is a project management technique that combines measurements of scope, time, and cost to assess project performance and progress. It provides a clear picture of how well a project is performing in terms of cost and schedule. The key metrics in EVA include:

Planned Value (PV): The authorized budget assigned to the work scheduled to be completed.
Earned Value (EV): The value of work completed expressed in terms of the approved budget for that work.
Actual Cost (AC): The realized cost incurred for the work completed.

These metrics are used to calculate various performance indices that help in understanding the project's health:

Cost Performance Index (CPI): EV / AC
Schedule Performance Index (SPI): EV / PV
Cost Variance (CV): EV - AC
Schedule Variance (SV): EV - PV

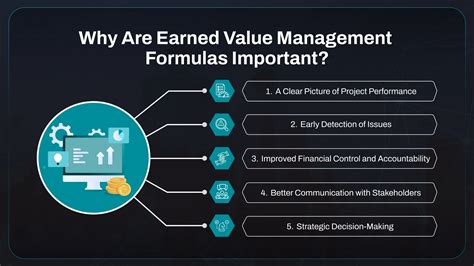

Importance of Earned Value Analysis

Earned Value Analysis is crucial for several reasons:

Early Detection of Issues: EVA helps in identifying deviations from the plan early, allowing for timely corrective actions.
Accurate Forecasting: It provides a reliable basis for forecasting future project performance, enabling better resource allocation.
Improved Decision Making: By offering a clear view of project status, EVA aids in making informed decisions that can enhance project outcomes.
Stakeholder Communication: EVA metrics are easy to understand and communicate, making it simpler to keep stakeholders informed about project progress.

Steps to Perform Earned Value Analysis

Performing Earned Value Analysis involves several steps. Here’s a detailed guide:

Step 1: Define the Project Scope

Clearly outline the project scope, including all deliverables and milestones. This step is crucial as it sets the foundation for all subsequent EVA calculations.

Step 2: Develop a Work Breakdown Structure (WBS)

A WBS breaks down the project into smaller, manageable components. Each component should have a specific deliverable and a corresponding budget.

Step 3: Create a Project Schedule

Develop a detailed project schedule that includes start and end dates for each task. This schedule will be used to calculate the Planned Value (PV).

Step 4: Establish a Cost Baseline

The cost baseline is the approved budget for the project. It is used to calculate the Earned Value (EV) and Actual Cost (AC).

Step 5: Collect Performance Data

Regularly collect data on the actual progress and costs of the project. This data is essential for calculating the EVA metrics.

Step 6: Calculate EVA Metrics

Using the collected data, calculate the key EVA metrics:

Planned Value (PV): The budgeted cost of work scheduled.
Earned Value (EV): The budgeted cost of work performed.
Actual Cost (AC): The actual cost of work performed.
Cost Performance Index (CPI): EV / AC
Schedule Performance Index (SPI): EV / PV
Cost Variance (CV): EV - AC
Schedule Variance (SV): EV - PV

These metrics provide a comprehensive view of the project's performance.

📝 Note: Ensure that the data collected is accurate and up-to-date to maintain the reliability of EVA metrics.

Interpreting Earned Value Analysis Results

Interpreting the results of Earned Value Analysis involves understanding the implications of the calculated metrics. Here’s how to interpret some key metrics:

Cost Performance Index (CPI): A CPI greater than 1 indicates that the project is under budget, while a CPI less than 1 indicates that the project is over budget.
Schedule Performance Index (SPI): An SPI greater than 1 indicates that the project is ahead of schedule, while an SPI less than 1 indicates that the project is behind schedule.
Cost Variance (CV): A positive CV indicates that the project is under budget, while a negative CV indicates that the project is over budget.
Schedule Variance (SV): A positive SV indicates that the project is ahead of schedule, while a negative SV indicates that the project is behind schedule.

Example of Earned Value Analysis

Let’s consider an example to illustrate how Earned Value Analysis works. Suppose a project has the following data:

Metric	Value
Planned Value (PV)	$50,000
Earned Value (EV)	$40,000
Actual Cost (AC)	$45,000

Using this data, we can calculate the following metrics:

Cost Performance Index (CPI): $40,000 / $45,000 = 0.89
Schedule Performance Index (SPI): $40,000 / $50,000 = 0.80
Cost Variance (CV): $40,000 - $45,000 = -$5,000
Schedule Variance (SV): $40,000 - $50,000 = -$10,000

From these calculations, we can infer that the project is over budget and behind schedule.

Challenges in Earned Value Analysis

While Earned Value Analysis is a powerful tool, it is not without its challenges. Some common issues include:

Data Accuracy: The reliability of EVA metrics depends heavily on the accuracy of the data collected. Inaccurate data can lead to misleading results.
Complexity: EVA can be complex to implement, especially for large projects with many variables.
Resource Intensive: Collecting and analyzing data for EVA can be time-consuming and resource-intensive.
Interpretation: Interpreting EVA metrics requires a good understanding of project management principles and the ability to make data-driven decisions.

📝 Note: Addressing these challenges requires a systematic approach to data collection, accurate reporting, and continuous improvement in project management practices.

Best Practices for Effective Earned Value Analysis

To ensure effective Earned Value Analysis, consider the following best practices:

Regular Monitoring: Regularly monitor project performance and update EVA metrics to stay informed about project status.
Accurate Data Collection: Ensure that data collection processes are accurate and reliable to maintain the integrity of EVA metrics.
Clear Communication: Communicate EVA results clearly and concisely to stakeholders to keep them informed about project progress.
Continuous Improvement: Use EVA insights to identify areas for improvement and implement corrective actions as needed.
Training and Development: Provide training to project team members on EVA principles and practices to enhance their understanding and application.

By following these best practices, project managers can leverage Earned Value Analysis to enhance project performance and achieve successful outcomes.

Earned Value Analysis is a critical tool for project managers, offering a comprehensive approach to measuring project performance. By integrating scope, time, and cost data, EVA provides valuable insights that help in making informed decisions and keeping projects on track. Understanding and effectively implementing EVA can significantly enhance project outcomes and ensure successful completion.
