E Cell Equation

Understanding the E Cell Equation is fundamental for anyone delving into the world of electrochemistry. This equation provides a quantitative measure of the electrical potential difference between two electrodes in an electrochemical cell. It is a cornerstone of electrochemical studies, enabling scientists and engineers to predict and analyze the behavior of electrochemical systems. This post will explore the E Cell Equation, its components, and its applications in various fields.

Understanding the E Cell Equation

The E Cell Equation is derived from the Nernst equation, which relates the cell potential to the standard electrode potentials and the concentrations of the reactants and products. The standard cell potential (E°cell) is the potential difference measured under standard conditions (298 K, 1 atm pressure, and 1 M concentration for all solutions). The E Cell Equation can be written as:

E_cell = E°cell - (RT/nF) ln(Q)

Where:

E_cell is the cell potential under non-standard conditions.
E°cell is the standard cell potential.
R is the universal gas constant (8.314 J/(mol·K)).
T is the temperature in Kelvin.
n is the number of moles of electrons transferred in the balanced equation.
F is the Faraday constant (96,485 C/mol).
Q is the reaction quotient, which is the ratio of the concentrations of products to reactants raised to their respective stoichiometric coefficients.

Components of the E Cell Equation

The E Cell Equation consists of several key components, each playing a crucial role in determining the cell potential. Let's break down these components:

Standard Cell Potential (E°cell)

The standard cell potential is the potential difference measured under standard conditions. It is a measure of the tendency of a redox reaction to occur spontaneously. A positive E°cell indicates a spontaneous reaction, while a negative E°cell indicates a non-spontaneous reaction.

Universal Gas Constant (R)

The universal gas constant is a fundamental constant in physics and chemistry, representing the relationship between energy and temperature. It is used in the E Cell Equation to account for the temperature dependence of the cell potential.

Temperature (T)

The temperature in Kelvin is a critical factor in the E Cell Equation. As the temperature changes, the cell potential also changes. This is because the reaction rates and the equilibrium constants are temperature-dependent.

Number of Electrons Transferred (n)

The number of moles of electrons transferred in the balanced equation is essential for calculating the cell potential. It determines the amount of charge transferred during the redox reaction.

Faraday Constant (F)

The Faraday constant is the charge of one mole of electrons. It is used to convert the number of moles of electrons to the total charge transferred during the reaction.

Reaction Quotient (Q)

The reaction quotient is the ratio of the concentrations of products to reactants raised to their respective stoichiometric coefficients. It provides a measure of the progress of the reaction and is used to calculate the cell potential under non-standard conditions.

Applications of the E Cell Equation

The E Cell Equation has numerous applications in various fields, including chemistry, biology, and engineering. Some of the key applications are:

Batteries and Fuel Cells

In batteries and fuel cells, the E Cell Equation is used to calculate the cell potential and predict the performance of the device. By understanding the factors that affect the cell potential, engineers can design more efficient and durable batteries and fuel cells.

Corrosion Science

In corrosion science, the E Cell Equation is used to study the electrochemical reactions that occur during corrosion. By calculating the cell potential, scientists can predict the rate of corrosion and develop strategies to prevent it.

For example, consider the corrosion of iron in an acidic solution. The overall reaction can be represented as:

Fe(s) + 2H+(aq) → Fe2+(aq) + H2(g)

The standard cell potential for this reaction can be calculated using the E Cell Equation. By understanding the factors that affect the cell potential, scientists can develop corrosion inhibitors and protective coatings to prevent the corrosion of iron.

Biological Systems

In biological systems, the E Cell Equation is used to study the electrochemical reactions that occur in living organisms. For example, the E Cell Equation can be used to calculate the cell potential of the electron transport chain in mitochondria, which is essential for ATP synthesis.

By understanding the factors that affect the cell potential, biologists can study the mechanisms of energy production in living organisms and develop new therapies for diseases related to energy metabolism.

Calculating the E Cell Equation

To calculate the E Cell Equation, follow these steps:

Write the balanced chemical equation for the redox reaction.
Identify the standard electrode potentials for the half-reactions.
Calculate the standard cell potential (E°cell) by subtracting the standard electrode potential of the anode from that of the cathode.
Determine the number of moles of electrons transferred (n) in the balanced equation.
Calculate the reaction quotient (Q) using the concentrations of the reactants and products.
Substitute the values into the E Cell Equation and solve for the cell potential (E_cell).

💡 Note: Ensure that the concentrations used in the calculation of Q are in molarity (M) and that the temperature is in Kelvin.

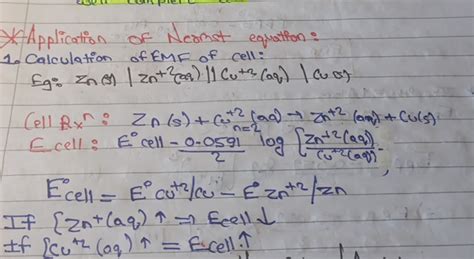

Example Calculation

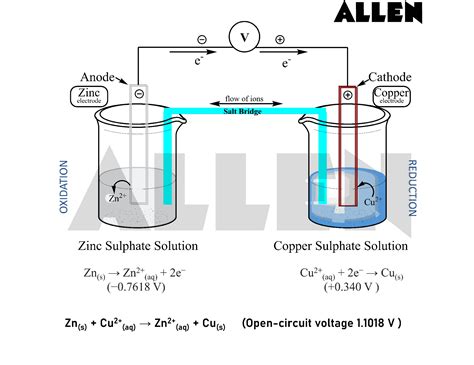

Let's consider an example to illustrate the calculation of the E Cell Equation. Suppose we have the following redox reaction:

Zn(s) + Cu2+(aq) → Zn2+(aq) + Cu(s)

The standard electrode potentials for the half-reactions are:

Zn2+(aq) + 2e- → Zn(s) E° = -0.76 V

Cu2+(aq) + 2e- → Cu(s) E° = +0.34 V

The standard cell potential (E°cell) is calculated as:

E°cell = E°cathode - E°anode = +0.34 V - (-0.76 V) = +1.10 V

Assuming the concentrations of Zn2+ and Cu2+ are 0.1 M and 0.01 M, respectively, and the temperature is 298 K, we can calculate the cell potential (E_cell) using the E Cell Equation.

The reaction quotient (Q) is:

Q = [Zn2+] / [Cu2+] = 0.1 M / 0.01 M = 10

Substituting the values into the E Cell Equation:

E_cell = E°cell - (RT/nF) ln(Q)

E_cell = +1.10 V - (8.314 J/(mol·K) * 298 K / (2 * 96,485 C/mol)) ln(10)

E_cell = +1.10 V - 0.0296 V = +1.07 V

Therefore, the cell potential under the given conditions is +1.07 V.

Factors Affecting the E Cell Equation

Several factors can affect the cell potential calculated using the E Cell Equation. Understanding these factors is crucial for accurate predictions and analyses. Some of the key factors are:

Concentration of Reactants and Products

The concentrations of the reactants and products directly affect the reaction quotient (Q), which in turn affects the cell potential. As the concentration of reactants increases or the concentration of products decreases, the cell potential increases, and vice versa.

Temperature

The temperature affects the cell potential through the term (RT/nF) in the E Cell Equation. As the temperature increases, the cell potential generally decreases due to the increase in the entropy of the system.

Number of Electrons Transferred

The number of electrons transferred (n) affects the cell potential by determining the amount of charge transferred during the reaction. A higher number of electrons transferred results in a lower cell potential, assuming all other factors remain constant.

Pressure

For reactions involving gases, the pressure can affect the cell potential. According to Le Chatelier's principle, an increase in pressure favors the side of the reaction with fewer moles of gas, which can affect the cell potential.

Importance of the E Cell Equation in Electrochemistry

The E Cell Equation is a fundamental tool in electrochemistry, enabling scientists and engineers to predict and analyze the behavior of electrochemical systems. By understanding the factors that affect the cell potential, researchers can design more efficient and durable electrochemical devices, such as batteries, fuel cells, and sensors.

The E Cell Equation also plays a crucial role in studying electrochemical reactions in biological systems, corrosion science, and environmental chemistry. By calculating the cell potential, scientists can gain insights into the mechanisms of these reactions and develop strategies to control and optimize them.

In summary, the E Cell Equation is a versatile and powerful tool in electrochemistry, with applications ranging from energy storage and conversion to environmental monitoring and biological research. Its importance cannot be overstated, as it provides a quantitative measure of the electrical potential difference between two electrodes in an electrochemical cell, enabling accurate predictions and analyses of electrochemical systems.

In conclusion, the E Cell Equation is a cornerstone of electrochemistry, providing a quantitative measure of the electrical potential difference between two electrodes in an electrochemical cell. By understanding the components and applications of the E Cell Equation, researchers can gain valuable insights into the behavior of electrochemical systems and develop innovative solutions to real-world problems. Whether in batteries, fuel cells, corrosion science, or biological systems, the E Cell Equation remains an essential tool for predicting and analyzing electrochemical reactions. Its versatility and power make it an indispensable resource for scientists and engineers working in the field of electrochemistry.
