Drum Brake Components

Drum brakes are a critical component in many vehicles, providing reliable stopping power and durability. Understanding the various drum brake components and their functions is essential for maintaining and repairing these braking systems. This post will delve into the intricacies of drum brakes, exploring their components, how they work, and the importance of regular maintenance.

Table of Contents

Understanding Drum Brake Components

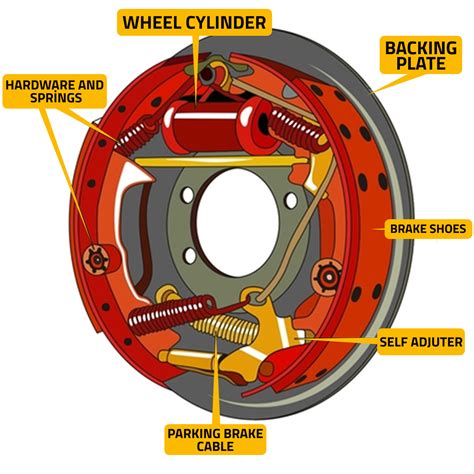

Drum brakes consist of several key components that work together to slow down or stop a vehicle. These components include:

The brake drum
The brake shoes
The wheel cylinder
The brake springs
The brake backing plate
The brake adjuster

Each of these drum brake components plays a crucial role in the braking process. Let's examine them in detail.

The Brake Drum

The brake drum is a cylindrical component that rotates with the wheel. It houses the brake shoes and provides the surface against which the shoes press to create friction and slow down the vehicle. The drum is typically made of cast iron or other durable materials to withstand the heat and wear generated during braking.

The Brake Shoes

Brake shoes are curved, semi-circular pieces that fit inside the brake drum. They are lined with friction material, which creates the necessary friction to stop the vehicle. When the brake pedal is pressed, hydraulic pressure forces the brake shoes outward, pressing them against the inner surface of the brake drum. This friction converts the vehicle's kinetic energy into heat, slowing it down.

The Wheel Cylinder

The wheel cylinder is a hydraulic component that converts the pressure from the brake fluid into mechanical force. It is located on the brake backing plate and contains pistons that push the brake shoes outward when the brake pedal is depressed. The wheel cylinder is a critical part of the braking system, as it ensures that the brake shoes apply even pressure to the drum.

The Brake Springs

Brake springs are essential for returning the brake shoes to their original position after the brake pedal is released. These springs ensure that the brake shoes do not remain in contact with the drum, which could cause excessive wear and overheating. There are typically two types of brake springs: hold-down springs and return springs. Hold-down springs keep the brake shoes in place, while return springs pull the shoes back when the brakes are released.

The Brake Backing Plate

The brake backing plate is a sturdy metal plate that supports the brake assembly. It provides a mounting surface for the brake shoes, wheel cylinder, and other components. The backing plate also helps to dissipate heat generated during braking, which is crucial for maintaining the performance and longevity of the brake system.

The Brake Adjuster

The brake adjuster is a mechanism that automatically compensates for the wear of the brake shoes and lining. As the brake shoes wear down, the adjuster ensures that the shoes remain in the correct position to maintain optimal braking performance. This component is essential for keeping the brakes in good working order and preventing excessive wear on other drum brake components.

How Drum Brake Systems Work

Understanding how drum brake systems work involves knowing the sequence of events that occur when the brake pedal is pressed. Here’s a step-by-step breakdown:

When the driver presses the brake pedal, hydraulic pressure is generated in the brake fluid.
This pressure is transmitted to the wheel cylinders, which convert the hydraulic force into mechanical force.
The wheel cylinders push the brake shoes outward, pressing them against the inner surface of the brake drum.
The friction between the brake shoes and the drum creates resistance, slowing down the vehicle.
When the brake pedal is released, the brake springs pull the shoes back to their original position, allowing the drum to rotate freely again.

This process is repeated every time the brakes are applied, making it crucial for the drum brake components to be in good condition.

Maintenance and Troubleshooting Drum Brake Systems

Maintaining drum brake systems is essential for ensuring their reliability and longevity. Regular inspections and timely repairs can prevent major issues and keep the braking system in optimal condition. Here are some key maintenance tips and troubleshooting steps:

Regular Inspections

Regular inspections of the drum brake system can help identify potential issues before they become serious problems. Key areas to check include:

The condition of the brake shoes and linings
The brake drum for signs of wear or damage
The wheel cylinder for leaks or damage
The brake springs for proper tension and function
The brake adjuster for proper operation

If any of these components show signs of wear or damage, they should be replaced promptly to maintain the braking system's performance.

Common Issues and Troubleshooting

Several common issues can arise with drum brake systems. Here are some of the most frequent problems and how to troubleshoot them:

Squealing or Grinding Noises: These noises often indicate worn brake shoes or linings. Inspect the brake shoes and replace them if necessary.
Pulling to One Side: If the vehicle pulls to one side when braking, it may be due to uneven brake shoe wear or a malfunctioning brake adjuster. Check the brake shoes and adjuster for proper function.
Spongy Brake Pedal: A spongy brake pedal can indicate air in the brake lines or a failing wheel cylinder. Bleed the brake system and inspect the wheel cylinder for leaks.
Excessive Brake Dust: Excessive brake dust can be a sign of worn brake shoes or linings. Inspect the brake shoes and replace them if necessary.

If you encounter any of these issues, it's important to address them promptly to ensure the safety and reliability of your vehicle's braking system.

🛠️ Note: Always consult a professional mechanic if you are unsure about any aspect of drum brake maintenance or repair. Improper handling of brake components can compromise the safety of your vehicle.

Upgrading Drum Brake Components

For those looking to enhance the performance of their drum brake system, upgrading certain components can be beneficial. Here are some upgrades to consider:

High-Performance Brake Shoes

High-performance brake shoes are designed to provide better stopping power and durability. These shoes often feature advanced friction materials that offer improved performance in various driving conditions. Upgrading to high-performance brake shoes can enhance the overall braking efficiency of your vehicle.

Stainless Steel Brake Springs

Stainless steel brake springs are more durable and resistant to corrosion compared to standard springs. These springs can improve the longevity of your brake system and reduce the need for frequent replacements. Upgrading to stainless steel springs can be a cost-effective way to enhance the reliability of your drum brakes.

Performance Brake Drums

Performance brake drums are designed to dissipate heat more efficiently, reducing the risk of brake fade and improving overall braking performance. These drums are often made from high-quality materials that offer better durability and resistance to wear. Upgrading to performance brake drums can significantly enhance the braking capabilities of your vehicle.

Conclusion

Drum brakes are a vital part of many vehicles, providing reliable stopping power and durability. Understanding the various drum brake components and their functions is essential for maintaining and repairing these braking systems. Regular inspections, timely repairs, and upgrades can ensure that your drum brakes remain in optimal condition, providing safe and efficient braking performance. By following the maintenance tips and troubleshooting steps outlined in this post, you can keep your drum brake system in top shape and enjoy a smooth and safe driving experience.
