Drill Point Angle

Drilling is a fundamental process in various industries, from construction and manufacturing to DIY projects. One of the critical aspects of drilling that often goes unnoticed but significantly impacts the outcome is the drill point angle. Understanding and optimizing the drill point angle can enhance drilling efficiency, reduce wear and tear on tools, and improve the overall quality of the holes drilled. This post delves into the importance of the drill point angle, how to measure and adjust it, and best practices for different materials.

Table of Contents

Understanding Drill Point Angle

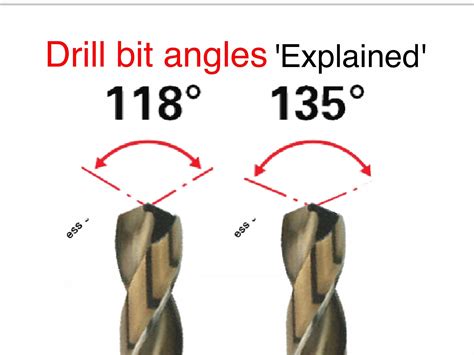

The drill point angle refers to the angle formed at the tip of a drill bit. This angle is crucial because it determines how the drill bit engages with the material being drilled. The most common drill point angles are 118 degrees and 135 degrees. The 118-degree angle is standard for general-purpose drilling in metals, while the 135-degree angle is often used for drilling in wood and plastics.

Importance of Drill Point Angle

The drill point angle plays a pivotal role in several aspects of drilling:

Efficiency: The correct drill point angle ensures that the drill bit cuts through the material efficiently, reducing the time and effort required to drill a hole.
Accuracy: A well-defined drill point angle helps in maintaining the accuracy of the hole, preventing wobbling and ensuring a straight, clean cut.
Tool Longevity: Proper drill point angle reduces the stress on the drill bit, extending its lifespan and minimizing the need for frequent replacements.
Material Compatibility: Different materials require different drill point angles for optimal performance. Using the wrong angle can lead to poor results and potential damage to the drill bit.

Measuring Drill Point Angle

Measuring the drill point angle is essential for ensuring that your drill bits are correctly set up for the task at hand. Here are the steps to measure the drill point angle:

Use a Protractor: Place the drill bit on a flat surface and use a protractor to measure the angle at the tip of the bit. Align the protractor's base with the cutting edge of the bit and read the angle where the two edges meet.
Digital Angle Gauge: For more precise measurements, a digital angle gauge can be used. Place the gauge on the drill bit and read the angle displayed on the screen.
Visual Inspection: In some cases, a visual inspection can give a rough estimate of the drill point angle. Compare the angle of the drill bit to a known standard or use a reference chart.

🔍 Note: Always ensure that the drill bit is clean and free of debris before measuring the drill point angle for accurate results.

Adjusting Drill Point Angle

Adjusting the drill point angle can be necessary when switching between different materials or when the drill bit becomes dull. Here are the steps to adjust the drill point angle:

Grinding: Use a bench grinder or a drill bit sharpener to grind the tip of the drill bit. Hold the bit at the desired angle and carefully grind until the correct angle is achieved.
Sharpening Tools: Specialized sharpening tools are available that can help adjust the drill point angle more precisely. These tools often come with guides to ensure the correct angle is maintained.
Professional Services: For critical applications, consider using professional sharpening services that have the expertise and equipment to adjust the drill point angle accurately.

⚠️ Note: Always wear appropriate safety gear, including gloves and eye protection, when grinding or sharpening drill bits.

Best Practices for Different Materials

Different materials require different drill point angles for optimal performance. Here are some best practices for common materials:

Metals

For drilling metals, a 118-degree drill point angle is generally recommended. This angle provides a good balance between cutting efficiency and tool longevity. However, for harder metals like stainless steel, a slightly smaller angle (around 135 degrees) may be more effective.

Wood

Wood drilling typically requires a 135-degree drill point angle. This angle helps in reducing the risk of splintering and ensures a clean, smooth hole. For softer woods, a slightly larger angle (around 140 degrees) can be used to improve cutting efficiency.

Plastics

Plastics can be challenging to drill due to their tendency to melt or crack. A 135-degree drill point angle is generally recommended for plastics. Additionally, using a slower drilling speed and applying lubricant can help prevent overheating and ensure a clean cut.

Concrete and Masonry

Drilling into concrete and masonry requires specialized drill bits with a different design. However, the drill point angle is still important. A 118-degree angle is commonly used for these materials, but it's essential to use a hammer drill for better performance.

Common Mistakes to Avoid

When working with drill point angles, there are several common mistakes to avoid:

Incorrect Angle: Using the wrong drill point angle for the material can lead to poor results and potential damage to the drill bit.
Improper Grinding: Grinding the drill bit at an incorrect angle or using the wrong technique can result in an uneven or dull cutting edge.
Neglecting Maintenance: Regularly inspecting and maintaining the drill point angle can extend the lifespan of the drill bit and ensure consistent performance.
Ignoring Material Properties: Different materials have unique properties that require specific drill point angles. Ignoring these properties can lead to suboptimal results.

🛠️ Note: Always refer to the manufacturer's guidelines for specific recommendations on drill point angles for different materials and applications.

Conclusion

The drill point angle is a critical factor in drilling that significantly impacts the efficiency, accuracy, and longevity of the drilling process. Understanding how to measure and adjust the drill point angle for different materials can enhance your drilling projects, whether you’re a professional or a DIY enthusiast. By following best practices and avoiding common mistakes, you can achieve optimal results and extend the life of your drill bits. Always prioritize safety and regular maintenance to ensure the best performance from your drilling tools.
