Drilling is a fundamental process in various industries, from construction and manufacturing to DIY projects. One of the most critical aspects of drilling is selecting the right drill bit size for the job. A Drill Bit Sizes Chart is an invaluable tool that helps ensure you have the correct bit for your specific needs. This guide will walk you through the importance of a drill bit sizes chart, how to read it, and how to choose the right drill bit for your project.
Understanding Drill Bit Sizes
Drill bits come in a variety of sizes, each designed for specific tasks. The size of a drill bit is typically measured in inches or millimeters. Understanding these measurements is crucial for selecting the right bit. Here are some common drill bit sizes and their typical uses:
- 1/16 inch (1.5 mm): Ideal for small pilot holes and delicate work.
- 1/8 inch (3.2 mm): Suitable for general-purpose drilling in wood, metal, and plastic.
- 3/16 inch (4.8 mm): Often used for larger pilot holes and small screws.
- 1/4 inch (6.4 mm): Versatile for a range of applications, including drilling through wood and metal.
- 3/8 inch (9.5 mm): Commonly used for larger holes in wood and metal.
- 1/2 inch (12.7 mm): Suitable for heavy-duty drilling tasks.
Reading a Drill Bit Sizes Chart

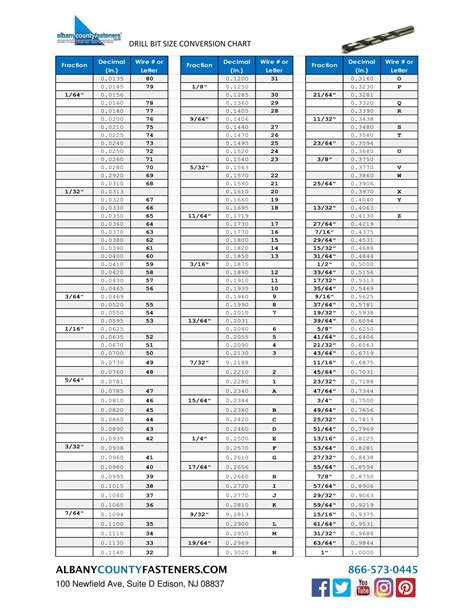

A Drill Bit Sizes Chart provides a comprehensive list of drill bit sizes along with their corresponding measurements. These charts are typically organized in a table format, making it easy to find the size you need. Here’s an example of what a drill bit sizes chart might look like:
| Fractional Size | Decimal Size (inches) | Metric Size (mm) |
|---|---|---|
| 1/16 | 0.0625 | 1.5 |
| 1/8 | 0.125 | 3.2 |
| 3/16 | 0.1875 | 4.8 |
| 1/4 | 0.25 | 6.4 |
| 3/8 | 0.375 | 9.5 |
| 1/2 | 0.5 | 12.7 |
To use a Drill Bit Sizes Chart, simply locate the size you need in the fractional size column and note the corresponding decimal and metric sizes. This ensures you have the correct measurement for your project, regardless of the unit system you are using.
Choosing the Right Drill Bit
Selecting the right drill bit involves more than just choosing the correct size. You also need to consider the material you are drilling into and the type of drill bit suitable for that material. Here are some tips for choosing the right drill bit:
- Material Type: Different materials require different types of drill bits. For example, wood requires a different bit than metal or concrete.
- Drill Bit Type: Common types include twist bits, spade bits, and masonry bits. Each type is designed for specific materials and tasks.
- Drill Bit Size: Use a Drill Bit Sizes Chart to ensure you have the correct size for your project.
Here are some common drill bit types and their uses:
- Twist Bits: Versatile and suitable for drilling in wood, metal, and plastic.
- Spade Bits: Ideal for drilling large holes in wood.
- Masonry Bits: Designed for drilling into concrete, brick, and stone.
- Step Bits: Useful for creating holes of varying sizes in metal and plastic.
- Forstner Bits: Perfect for drilling precise, flat-bottomed holes in wood.
When choosing a drill bit, always refer to a Drill Bit Sizes Chart to ensure you have the correct size for your project. This will help you avoid common mistakes and ensure a successful drilling experience.
🔧 Note: Always wear appropriate safety gear, including safety glasses and gloves, when drilling.
Drilling Techniques
Once you have the right drill bit, it’s important to use proper drilling techniques to ensure a clean and accurate hole. Here are some tips for effective drilling:
- Mark the Spot: Use a pencil or marker to clearly mark the spot where you want to drill.
- Start Slowly: Begin drilling at a slow speed to ensure the bit stays on target.
- Apply Even Pressure: Maintain consistent pressure as you drill to avoid breaking the bit or damaging the material.
- Use a Pilot Hole: For larger bits, start with a smaller pilot hole to guide the larger bit.
- Clear Debris: Periodically withdraw the bit to clear debris and prevent overheating.
By following these techniques, you can ensure a clean and accurate hole every time. Always refer to a Drill Bit Sizes Chart to ensure you have the correct size for your project.
🛠️ Note: Regularly inspect your drill bits for wear and replace them as needed to maintain optimal performance.
Maintaining Your Drill Bits
Proper maintenance of your drill bits is essential for their longevity and performance. Here are some tips for maintaining your drill bits:
- Clean After Use: Remove any debris or residue from the bit after each use.
- Store Properly: Keep your drill bits in a dry, organized place to prevent rust and damage.
- Sharpen Regularly: Use a sharpening tool to maintain the cutting edge of your bits.
- Inspect for Damage: Regularly check your bits for signs of wear or damage and replace them as needed.
By following these maintenance tips, you can extend the life of your drill bits and ensure they perform optimally for all your drilling needs. Always refer to a Drill Bit Sizes Chart to ensure you have the correct size for your project.
🔧 Note: Avoid using drill bits that are damaged or excessively worn, as they can compromise the quality of your work.
Drilling is a crucial skill in many industries and DIY projects. Understanding the importance of a Drill Bit Sizes Chart and how to use it can significantly enhance your drilling experience. By selecting the right drill bit size and type, using proper drilling techniques, and maintaining your bits, you can achieve clean, accurate holes every time. Whether you’re a professional or a hobbyist, a Drill Bit Sizes Chart is an essential tool that should always be within reach.
