Dram Data Bus

In the realm of digital electronics, the Dram Data Bus plays a pivotal role in the efficient transfer of data between the memory controller and the DRAM (Dynamic Random-Access Memory) modules. Understanding the intricacies of the Dram Data Bus is crucial for anyone involved in hardware design, system architecture, or performance optimization. This post delves into the fundamentals of the Dram Data Bus, its significance, and how it impacts overall system performance.

Table of Contents

Understanding the Dram Data Bus

The Dram Data Bus is a critical component in modern computing systems, facilitating the high-speed transfer of data between the memory controller and DRAM modules. It consists of multiple data lines that carry information in parallel, allowing for faster data transmission compared to serial data buses. The width of the Dram Data Bus can vary, with common widths including 8, 16, 32, 64, and 128 bits. The wider the bus, the more data can be transferred in a single clock cycle, thereby enhancing the overall data throughput.

Components of the Dram Data Bus

The Dram Data Bus is composed of several key components, each playing a vital role in data transfer:

Data Lines: These are the physical wires that carry the data bits. The number of data lines corresponds to the width of the bus.
Address Lines: These lines carry the memory addresses to specify the location in DRAM where data should be read from or written to.
Control Lines: These lines manage the timing and synchronization of data transfer, ensuring that data is correctly read from or written to the DRAM.
Clock Signal: This signal synchronizes the operations of the memory controller and DRAM, ensuring that data is transferred at the correct timing.

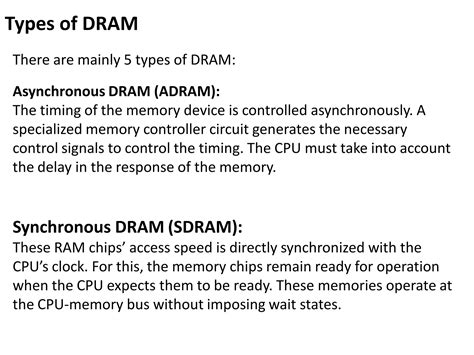

Types of Dram Data Bus

There are different types of Dram Data Buses, each designed to meet specific performance and power consumption requirements:

Single Data Rate (SDR) Dram Data Bus: This type of bus transfers data on the rising edge of the clock signal, providing a straightforward but less efficient data transfer mechanism.

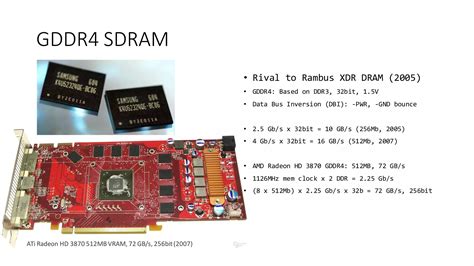

Double Data Rate (DDR) Dram Data Bus: DDR buses transfer data on both the rising and falling edges of the clock signal, effectively doubling the data transfer rate compared to SDR buses.

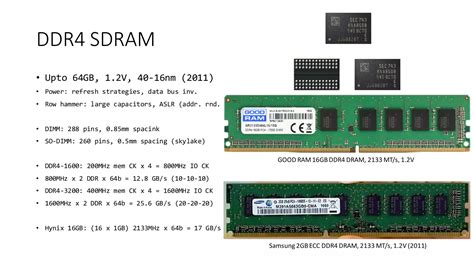

DDR2, DDR3, DDR4, and DDR5 Dram Data Buses: These are successive generations of DDR buses, each offering improved performance, lower power consumption, and enhanced features. For example, DDR4 supports higher data rates and lower voltages compared to DDR3.

Importance of the Dram Data Bus in System Performance

The Dram Data Bus significantly impacts the overall performance of a computing system. Here are some key factors to consider:

Data Throughput: A wider Dram Data Bus allows for higher data throughput, enabling faster data transfer between the memory controller and DRAM. This is crucial for applications that require high memory bandwidth, such as graphics processing and scientific computations.
Latency: The latency of the Dram Data Bus affects how quickly data can be accessed. Lower latency means faster access times, which is essential for real-time applications and interactive systems.
Power Consumption: Efficient data transfer mechanisms in the Dram Data Bus can reduce power consumption, which is particularly important for mobile and embedded systems.
Scalability: The Dram Data Bus must be scalable to accommodate future advancements in memory technology and system requirements. This ensures that the system can handle increased data loads and higher performance demands.

Optimizing the Dram Data Bus for Better Performance

To optimize the performance of the Dram Data Bus, several strategies can be employed:

Bus Width Optimization: Choosing the appropriate bus width based on the system's requirements can significantly enhance data throughput. For example, a 64-bit bus may be sufficient for general-purpose computing, while a 128-bit bus may be necessary for high-performance applications.
Clock Speed Adjustment: Increasing the clock speed of the Dram Data Bus can improve data transfer rates. However, this must be balanced against power consumption and heat dissipation considerations.
Error Correction: Implementing error correction mechanisms can enhance the reliability of data transfer, reducing the need for retransmissions and improving overall system stability.
Data Prefetching: Prefetching data before it is needed can reduce latency and improve data access times. This technique involves predicting future data requirements and loading the data into the cache in advance.

💡 Note: When optimizing the Dram Data Bus, it is essential to consider the trade-offs between performance, power consumption, and cost. Balancing these factors is crucial for achieving the best overall system performance.

Future Trends in Dram Data Bus Technology

The field of Dram Data Bus technology is continually evolving, driven by the need for higher performance and lower power consumption. Some of the emerging trends include:

Higher Data Rates: Future generations of DDR buses, such as DDR5 and beyond, will support even higher data rates, enabling faster data transfer and improved system performance.
Lower Voltages: Reducing the operating voltage of the Dram Data Bus can significantly lower power consumption, making it more suitable for energy-efficient systems.
Advanced Error Correction: Enhanced error correction techniques will improve data integrity and reliability, reducing the impact of data errors on system performance.
Integrated Memory Controllers: Integrating the memory controller directly into the CPU or SoC (System on Chip) can reduce latency and improve data transfer efficiency.

As technology advances, the Dram Data Bus will continue to play a crucial role in shaping the performance and efficiency of modern computing systems. Staying abreast of these developments is essential for anyone involved in hardware design and system architecture.

In conclusion, the Dram Data Bus is a fundamental component in modern computing systems, enabling efficient data transfer between the memory controller and DRAM modules. Understanding its components, types, and optimization strategies is crucial for achieving high-performance and energy-efficient systems. As technology continues to evolve, the Dram Data Bus will remain a key area of focus for enhancing system performance and reliability.
