The automotive industry is constantly evolving, with innovations in suspension systems playing a crucial role in enhancing vehicle performance, handling, and comfort. One such innovation that has gained significant attention is the Doublewishbone Suspension System. This system, also known as the double A-arm suspension, is renowned for its ability to provide superior handling and stability, making it a popular choice for high-performance vehicles and off-road applications.
Understanding the Doublewishbone Suspension System

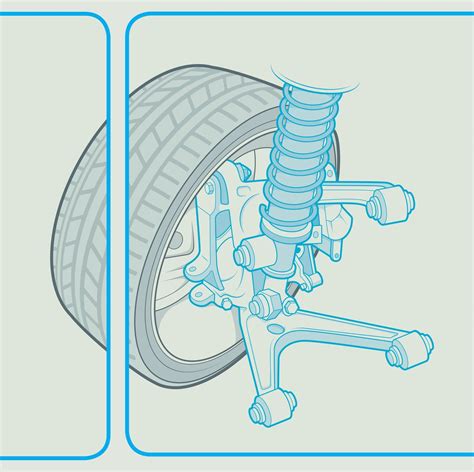

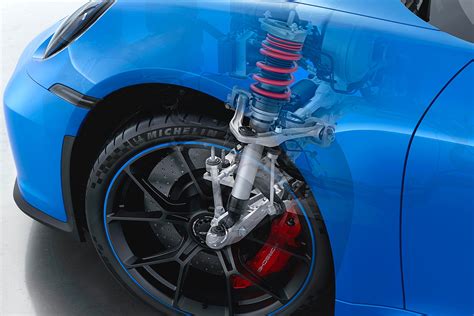

The Doublewishbone Suspension System is a type of independent suspension design that uses two wishbone-shaped control arms to locate the wheel. These control arms are connected to the vehicle's chassis at one end and to the wheel hub at the other. The design allows for precise control over the wheel's movement, ensuring that it remains aligned with the road surface, even during aggressive cornering or rough terrain.
Components of the Doublewishbone Suspension System

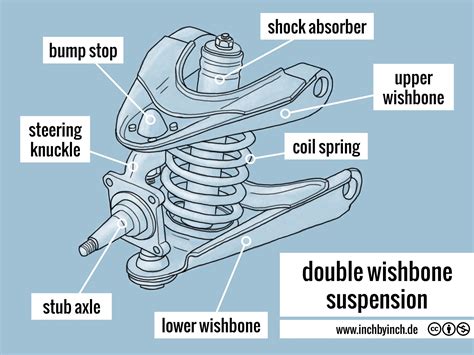

The Doublewishbone Suspension System consists of several key components, each playing a vital role in its functionality:
- Upper and Lower Control Arms: These are the wishbone-shaped arms that connect the wheel hub to the chassis. They are designed to control the wheel's movement in both the vertical and horizontal planes.
- Springs and Shock Absorbers: These components work together to absorb road shocks and maintain the vehicle's ride height. The springs provide the necessary support, while the shock absorbers dampen the oscillations caused by road irregularities.
- Ball Joints: These are flexible joints that allow the control arms to pivot, enabling the wheel to move freely. They are crucial for maintaining the wheel's alignment and ensuring smooth steering.
- Anti-Roll Bar: This component helps to reduce body roll during cornering by connecting the suspension on both sides of the vehicle. It enhances stability and improves handling.
Advantages of the Doublewishbone Suspension System
The Doublewishbone Suspension System offers several advantages that make it a preferred choice for many vehicle manufacturers:
- Improved Handling: The precise control over wheel movement provided by the double wishbone design enhances the vehicle's handling capabilities, making it more responsive and agile.
- Enhanced Stability: The system's ability to maintain wheel alignment and reduce body roll contributes to overall stability, especially during high-speed maneuvers.
- Superior Comfort: The combination of springs and shock absorbers effectively absorbs road shocks, providing a smoother and more comfortable ride.
- Versatility: The Doublewishbone Suspension System is suitable for a wide range of applications, from high-performance sports cars to rugged off-road vehicles.
Applications of the Doublewishbone Suspension System
The versatility of the Doublewishbone Suspension System makes it ideal for various types of vehicles. Some of the most common applications include:
- Sports Cars: High-performance sports cars often feature double wishbone suspensions to achieve superior handling and stability during high-speed driving.
- Off-Road Vehicles: The system's ability to handle rough terrain makes it a popular choice for off-road vehicles, where durability and stability are crucial.
- Racing Cars: In motorsports, the Doublewishbone Suspension System is widely used due to its precision and adjustability, allowing for fine-tuning to meet specific track conditions.
- Luxury Vehicles: Luxury cars often incorporate this suspension design to provide a smooth and comfortable ride, enhancing the overall driving experience.
Maintenance and Care of the Doublewishbone Suspension System
To ensure the longevity and optimal performance of the Doublewishbone Suspension System, regular maintenance is essential. Here are some key aspects to consider:
- Inspection: Regularly inspect the control arms, ball joints, and other components for signs of wear or damage. Replace any worn-out parts promptly to prevent further issues.
- Lubrication: Keep the ball joints and other moving parts well-lubricated to reduce friction and ensure smooth operation.
- Alignment: Periodically check the wheel alignment to ensure that the vehicle's suspension is functioning correctly. Misalignment can lead to uneven tire wear and handling issues.
- Shock Absorbers: Replace the shock absorbers as recommended by the manufacturer. Worn-out shock absorbers can compromise the vehicle's handling and comfort.
🛠️ Note: Always refer to the vehicle's owner manual for specific maintenance intervals and procedures.
Comparing the Doublewishbone Suspension System to Other Suspension Types
To better understand the benefits of the Doublewishbone Suspension System, it's helpful to compare it with other common suspension types:

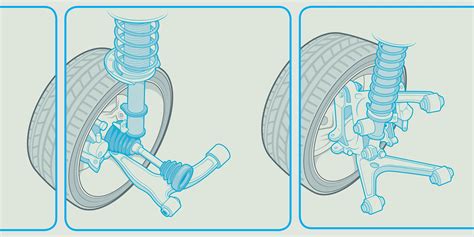

| Suspension Type | Advantages | Disadvantages |
|---|---|---|
| MacPherson Strut | Simple design, cost-effective, compact size | Less precise control, reduced adjustability |
| Multi-Link Suspension | Highly adjustable, precise control, improved handling | Complex design, higher cost, more maintenance |
| Doublewishbone Suspension | Superior handling, enhanced stability, versatile applications | More complex than MacPherson strut, higher cost |
While the MacPherson strut is simpler and more cost-effective, it lacks the precision and adjustability of the Doublewishbone Suspension System. The multi-link suspension offers similar benefits but is more complex and costly. The double wishbone design strikes a balance between performance and complexity, making it a popular choice for many vehicle manufacturers.
Future Trends in Doublewishbone Suspension Technology
The Doublewishbone Suspension System continues to evolve, with advancements in materials and technology driving further improvements. Some of the future trends in this area include:
- Advanced Materials: The use of lightweight and durable materials, such as aluminum and composites, can reduce the overall weight of the suspension system, improving fuel efficiency and performance.
- Active Suspension Systems: Incorporating active suspension technology can enhance the system's adaptability to different road conditions, providing real-time adjustments for optimal handling and comfort.
- Electronic Control Units (ECUs): Integrating ECUs can allow for precise control over the suspension system, enabling features like adaptive damping and automatic leveling.
These advancements are expected to further enhance the performance and versatility of the Doublewishbone Suspension System, making it an even more attractive option for vehicle manufacturers and enthusiasts alike.
In conclusion, the Doublewishbone Suspension System represents a significant advancement in automotive suspension technology. Its ability to provide superior handling, stability, and comfort makes it a preferred choice for a wide range of vehicles, from high-performance sports cars to rugged off-road vehicles. With ongoing advancements in materials and technology, the future of the double wishbone suspension looks promising, offering even greater performance and versatility. As the automotive industry continues to evolve, the Doublewishbone Suspension System will undoubtedly play a crucial role in shaping the future of vehicle design and performance.
