Donut Shape Mathematically

Mathematics is a fascinating field that often intersects with everyday objects in unexpected ways. One such object is the humble donut, which, when examined through a mathematical lens, reveals a rich and complex structure. Understanding the donut shape mathematically involves delving into the world of topology, a branch of mathematics that studies the properties of spaces that are preserved under continuous deformations, such as stretching and twisting. This exploration not only deepens our appreciation for the donut but also provides insights into more abstract mathematical concepts.

Table of Contents

Topology and the Donut Shape

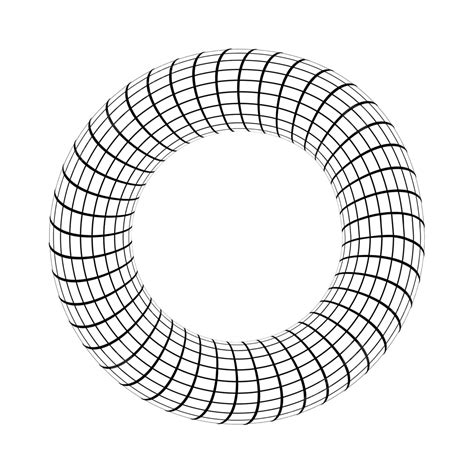

Topology is the study of the properties of spaces that are preserved under continuous transformations. In simpler terms, it is the study of shapes and their properties that remain unchanged when the shapes are stretched, twisted, or otherwise deformed, but not torn or glued. The donut, or torus, is a classic example in topology. A torus is a surface of revolution generated by revolving a circle in three-dimensional space about an axis that is coplanar with the circle.

To understand the donut shape mathematically, we need to consider its topological properties. One of the key properties of a torus is its genus, which is the number of "holes" in the surface. A donut has a genus of one, meaning it has one hole. This property is invariant under continuous deformations, making it a fundamental characteristic of the torus.

Mathematical Representation of a Torus

The torus can be represented mathematically in several ways. One common method is using parametric equations. In three-dimensional Cartesian coordinates, a torus can be described by the following parametric equations:

x = (R + r * cos(v)) * cos(u) y = (R + r * cos(v)) * sin(u) z = r * sin(v)

Here, R is the distance from the center of the tube to the center of the torus, r is the radius of the tube, and u and v are parameters that vary from 0 to 2π. These equations describe the surface of a torus in three-dimensional space.

Another way to represent a torus is using the concept of a product of two circles. A torus can be thought of as the product of two circles, S¹ × S¹, where S¹ denotes the circle. This representation highlights the topological nature of the torus as a surface generated by the product of two one-dimensional manifolds.

Properties of the Torus

The torus has several interesting properties that make it a subject of study in mathematics. Some of these properties include:

Surface Area: The surface area of a torus can be calculated using the formula A = 4π²Rr, where R is the major radius and r is the minor radius.
Volume: The volume enclosed by a torus is given by the formula V = 2π²Rr².
Genus: As mentioned earlier, the genus of a torus is one, indicating that it has one hole.
Euler Characteristic: The Euler characteristic of a torus is zero. The Euler characteristic is a topological invariant that provides information about the shape of a surface.

These properties are fundamental to understanding the donut shape mathematically and its role in topology.

Applications of the Torus in Mathematics

The torus has numerous applications in mathematics and other fields. In topology, the torus is used to study more complex surfaces and manifolds. For example, the Klein bottle, a non-orientable surface, can be constructed by gluing two Möbius strips together along their boundaries. The torus is also used in the study of knot theory, where it serves as a fundamental building block for more complex knots and links.

In differential geometry, the torus is used to study surfaces and their curvatures. The Gaussian curvature of a torus varies from positive to negative, making it a useful example for understanding the behavior of surfaces with different types of curvature.

In physics, the torus is used to model various phenomena. For example, in fluid dynamics, the torus is used to study vortex rings, which are donut-shaped regions of rotating fluid. In plasma physics, the torus is used to model magnetic confinement devices, such as tokamaks, which are used to confine hot plasma for nuclear fusion.

Visualizing the Torus

Visualizing the torus can help in understanding its mathematical properties. One way to visualize a torus is by using a 3D plotting tool. Below is an example of how to visualize a torus using Python and the Matplotlib library.

import numpy as np import matplotlib.pyplot as plt from mpl_toolkits.mplot3d import Axes3D # Parameters R = 3 r = 1 u = np.linspace(0, 2 * np.pi, 100) v = np.linspace(0, 2 * np.pi, 100) u, v = np.meshgrid(u, v) # Parametric equations x = (R + r * np.cos(v)) * np.cos(u) y = (R + r * np.cos(v)) * np.sin(u) z = r * np.sin(v) # Plot fig = plt.figure() ax = fig.add_subplot(111, projection='3d') ax.plot_surface(x, y, z, color='b', alpha=0.6) ax.set_xlabel('X') ax.set_ylabel('Y') ax.set_zlabel('Z') plt.show()

This code generates a 3D plot of a torus with major radius R and minor radius r. The plot helps visualize the donut shape mathematically and its properties.

📝 Note: The code above requires the Matplotlib and NumPy libraries. Ensure these libraries are installed in your Python environment before running the code.

Topological Invariants

Topological invariants are properties of a space that remain unchanged under continuous deformations. Understanding these invariants is crucial for studying the donut shape mathematically. Some important topological invariants include:

Genus: As mentioned earlier, the genus of a torus is one, indicating the number of holes in the surface.
Euler Characteristic: The Euler characteristic of a torus is zero. It is calculated using the formula χ = V - E + F, where V is the number of vertices, E is the number of edges, and F is the number of faces in a triangulation of the surface.
Fundamental Group: The fundamental group of a torus is Z × Z, where Z denotes the group of integers. This group captures the information about loops on the torus that cannot be continuously deformed to a point.

These invariants provide a deeper understanding of the topological properties of the torus and its role in mathematics.

The Torus in Higher Dimensions

The concept of a torus can be extended to higher dimensions. In n-dimensional space, an n-torus is the product of n circles, S¹ × S¹ × ... × S¹. For example, a 2-torus is the familiar donut shape, while a 3-torus is a more abstract object that can be visualized as a donut-shaped object in four-dimensional space.

The n-torus has interesting properties and applications in higher-dimensional geometry and topology. For instance, the 3-torus is used in the study of three-dimensional manifolds and their properties. The n-torus is also used in the study of dynamical systems, where it serves as a phase space for periodic motions.

Conclusion

The donut, or torus, is a fascinating object that reveals a rich and complex structure when examined through a mathematical lens. Understanding the donut shape mathematically involves delving into the world of topology, where the torus is studied for its properties that remain invariant under continuous deformations. The torus has numerous applications in mathematics, physics, and other fields, making it a subject of ongoing research and exploration. By studying the torus, we gain insights into more abstract mathematical concepts and deepen our appreciation for the beauty and complexity of mathematical structures.
