Embarking on a DIY project can be incredibly rewarding, especially when it comes to creating a functional and efficient space for your hobbies or professional needs. One such project that has gained popularity among DIY enthusiasts is building a DIY paint booth. A DIY paint booth is a versatile and cost-effective solution for anyone looking to spray paint projects in a controlled environment. Whether you're a hobbyist working on small crafts or a professional needing a dedicated space for larger projects, a DIY paint booth can significantly improve the quality of your work.

Table of Contents

Understanding the Basics of a DIY Paint Booth

A DIY paint booth is essentially a contained space designed to capture overspray and fumes generated during the painting process. This not only helps in maintaining a clean workspace but also ensures that the paint job is smooth and even. The key components of a DIY paint booth include:

Frame: The structural support of the booth, typically made from wood or metal.
Walls and Roof: Usually constructed from plywood or plastic sheets to contain the overspray.
Ventilation System: Essential for removing fumes and ensuring proper airflow.
Lighting: Adequate lighting is crucial for precision work.
Filter System: Helps in capturing paint particles and keeping the air clean.

Planning Your DIY Paint Booth

Before you start building your DIY paint booth, it's important to plan the project thoroughly. Consider the following factors:

Size: Determine the size of the booth based on the projects you plan to work on. A larger booth will accommodate bigger items but will also require more materials and space.
Location: Choose a location that is well-ventilated and has access to electricity. Avoid areas with high foot traffic or where the booth might be a nuisance.
Budget: Set a budget for the materials and tools you will need. A DIY paint booth can be built on a budget, but it's essential to allocate funds wisely.
Safety: Ensure that the booth is safe to use, with proper ventilation and fire safety measures in place.

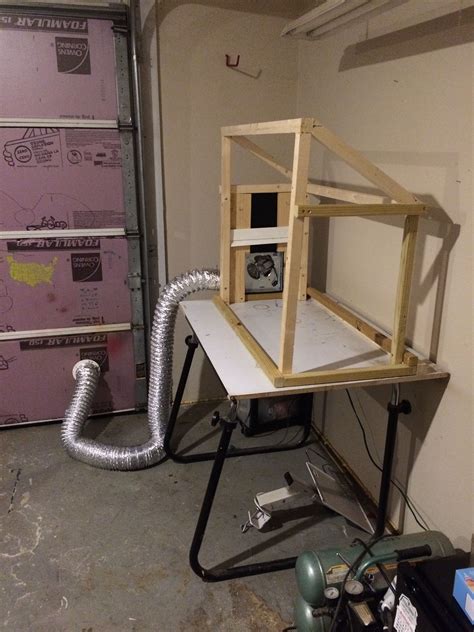

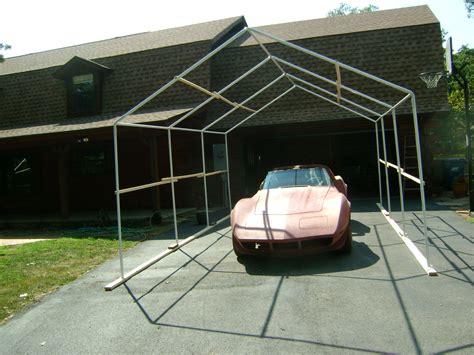

Building the Frame

The frame is the backbone of your DIY paint booth. It provides the structural support needed to hold the walls, roof, and other components. Here’s a step-by-step guide to building the frame:

Measure and Cut: Measure the dimensions of your booth and cut the lumber accordingly. Use 2x4s for the frame to ensure stability.
Assemble the Base: Start by assembling the base of the frame. Use screws or nails to secure the pieces together.
Build the Walls: Construct the walls by attaching the vertical and horizontal supports. Ensure that the walls are square and level.
Add the Roof: Build the roof frame and attach it to the walls. Make sure it is securely fastened to provide support.

🛠️ Note: Use a level and square to ensure that all parts of the frame are aligned correctly. This will make the assembly process smoother and ensure the stability of the booth.

Constructing the Walls and Roof

Once the frame is complete, the next step is to construct the walls and roof. This involves covering the frame with plywood or plastic sheets. Here’s how to do it:

Choose Your Material: Decide whether to use plywood or plastic sheets. Plywood is more durable but heavier, while plastic sheets are lighter and easier to handle.
Cut to Size: Measure and cut the material to fit the frame. Ensure that the pieces are the correct size to avoid gaps.
Attach the Material: Use screws or staples to attach the material to the frame. Start from the bottom and work your way up, ensuring that each piece is securely fastened.
Seal the Edges: Use caulk or sealant to seal the edges and prevent overspray from escaping.

🛠️ Note: If you choose to use plastic sheets, consider using a heat gun to soften the edges and create a tighter seal.

Installing the Ventilation System

A proper ventilation system is crucial for a DIY paint booth. It helps in removing fumes and ensuring a clean working environment. Here’s how to install a ventilation system:

Choose a Fan: Select a fan that is powerful enough to move the air efficiently. A 12-inch fan is a good starting point for most DIY paint booths.
Install the Fan: Mount the fan on one of the walls or the roof, ensuring that it is securely fastened. Make sure the fan is positioned to pull air out of the booth.
Add a Duct: Connect a duct to the fan to direct the air outside. Ensure that the duct is properly sealed to prevent air leaks.

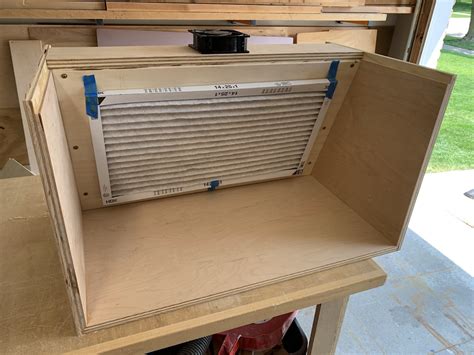

Install a Filter: Place a filter in front of the fan to capture paint particles. This will help keep the air clean and reduce the risk of overspray.

🛠️ Note: Ensure that the ventilation system is properly grounded to avoid electrical hazards.

Setting Up Lighting

Adequate lighting is essential for precision work in a DIY paint booth. Here’s how to set up the lighting:

Choose Light Fixtures: Select light fixtures that provide bright, even lighting. LED lights are a good choice as they are energy-efficient and long-lasting.
Install the Fixtures: Mount the light fixtures on the ceiling or walls of the booth. Ensure that they are securely fastened and positioned to provide even lighting.
Connect to Power: Connect the light fixtures to a power source. Make sure the wiring is properly grounded and insulated to avoid electrical hazards.

🛠️ Note: Consider using a dimmer switch to adjust the brightness of the lights according to your needs.

Adding a Filter System

A filter system is essential for capturing paint particles and keeping the air clean. Here’s how to add a filter system to your DIY paint booth:

Choose a Filter: Select a filter that is suitable for the type of paint you will be using. HEPA filters are a good choice as they capture 99.97% of particles.
Install the Filter: Place the filter in front of the fan or in a separate housing. Ensure that it is securely fastened and positioned to capture the overspray.
Maintain the Filter: Regularly clean or replace the filter to ensure it continues to function effectively. A clogged filter can reduce airflow and compromise the ventilation system.

🛠️ Note: Consider using a pre-filter to capture larger particles and extend the life of the main filter.

Final Touches and Safety Measures

Once the basic structure of your DIY paint booth is complete, it’s time to add the final touches and ensure safety measures are in place. Here are some additional steps to consider:

Grounding: Ensure that all electrical components are properly grounded to avoid electrical hazards.
Fire Safety: Keep a fire extinguisher nearby and ensure that the booth is free from flammable materials.
Ventilation: Regularly check the ventilation system to ensure it is functioning properly. Clean or replace filters as needed.
Cleaning: Regularly clean the booth to remove any paint residue or overspray. This will help maintain the quality of your work and extend the life of the booth.

Your DIY paint booth is now ready for use. With proper planning, construction, and maintenance, it will provide a controlled environment for your painting projects, ensuring high-quality results every time.

DIY Paint Booth

Building a DIY paint booth is a rewarding project that can significantly enhance your painting experience. By following the steps outlined above, you can create a functional and efficient space tailored to your specific needs. Whether you're a hobbyist or a professional, a DIY paint booth offers a cost-effective solution for achieving professional-quality results.

From planning and construction to ventilation and safety measures, each step is crucial in ensuring the success of your DIY paint booth. By taking the time to carefully plan and execute each phase, you can create a space that not only meets your needs but also provides a safe and efficient working environment. With proper maintenance and regular cleaning, your DIY paint booth will serve you well for years to come, allowing you to tackle a wide range of painting projects with confidence and precision.
