Distillation Fractionating Column

By Ashley

January 26, 2025

3 min read

Save

Distillation Fractionating Column

In the realm of chemical engineering and industrial processes, the distillation fractionating column stands as a cornerstone technology. This vertical vessel is designed to separate components of a liquid mixture based on their boiling points. The process involves heating the mixture to vaporize it, then condensing the vapor back into liquid form at different stages within the column. This intricate process allows for the efficient separation of various compounds, making it indispensable in industries ranging from petroleum refining to pharmaceuticals.

Table of Contents

Understanding the Distillation Fractionating Column

The distillation fractionating column operates on the principle of fractional distillation, which leverages the differences in boiling points of the components in a mixture. The column is equipped with trays or packing materials that provide surfaces for the vapor and liquid phases to interact. This interaction facilitates the separation of components as they move up and down the column.

Components of a Distillation Fractionating Column

A typical distillation fractionating column consists of several key components:

Reboiler: Located at the bottom of the column, the reboiler provides the heat necessary to vaporize the liquid mixture.
Trays or Packing: These are the internal structures that enhance the contact between the vapor and liquid phases. Trays can be sieve, bubble cap, or valve trays, while packing can be random or structured.
Condenser: Situated at the top of the column, the condenser cools and condenses the vapor back into liquid form.
Reflux Drum: This vessel collects the condensed liquid, which is then partially returned to the column as reflux to enhance separation efficiency.
Distillate and Bottoms: The separated components are collected as distillate (from the top) and bottoms (from the bottom) of the column.

Operating Principles of a Distillation Fractionating Column

The operation of a distillation fractionating column involves several stages:

Heating: The liquid mixture is heated in the reboiler to vaporize it.
Vaporization: The vapor rises through the column, interacting with the liquid on the trays or packing.
Condensation: As the vapor reaches the top of the column, it is condensed back into liquid form in the condenser.
Reflux: A portion of the condensed liquid is returned to the column as reflux, while the rest is collected as distillate.
Separation: The repeated interaction between the vapor and liquid phases allows for the separation of components based on their boiling points.

This process is continuous, with the liquid mixture being fed into the column and the separated components being collected at the top and bottom.

Types of Distillation Fractionating Columns

There are several types of distillation fractionating columns, each designed for specific applications:

Tray Columns: These columns use trays to enhance the contact between vapor and liquid phases. They are suitable for high-capacity applications and can handle a wide range of flow rates.
Packed Columns: These columns use packing materials instead of trays. They are ideal for applications requiring low pressure drop and high efficiency.
Batch Columns: These columns are used for small-scale or intermittent operations. They are filled with the mixture, heated, and the components are separated in batches.
Continuous Columns: These columns operate continuously, with a steady feed of the mixture and continuous collection of the separated components.

Applications of Distillation Fractionating Columns

The distillation fractionating column finds applications in various industries, including:

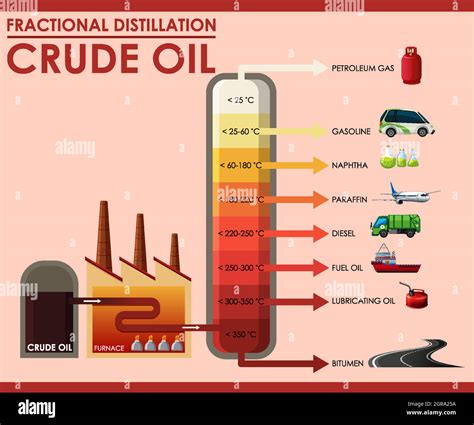

Petroleum Refining: Used to separate crude oil into various fractions such as gasoline, kerosene, and diesel.
Chemical Industry: Employed to purify chemicals and separate mixtures of solvents.
Pharmaceuticals: Utilized in the production of pharmaceutical compounds and the purification of active ingredients.
Food and Beverage: Used in the distillation of alcohols and the purification of essential oils.
Environmental Engineering: Applied in the treatment of wastewater and the recovery of valuable components from industrial waste.

Design Considerations for Distillation Fractionating Columns

Designing an efficient distillation fractionating column involves several key considerations:

Column Diameter: Determined by the flow rate and vapor velocity to ensure proper separation and prevent flooding.
Height: Depends on the number of theoretical stages required for the desired separation efficiency.
Tray or Packing Type: Selected based on the specific requirements of the application, such as capacity, efficiency, and pressure drop.
Material of Construction: Chosen to withstand the corrosive nature of the mixture and the operating conditions.
Heat Integration: Incorporating heat exchangers and reboilers to optimize energy efficiency.

Additionally, the design must account for factors such as pressure drop, liquid holdup, and the potential for fouling or corrosion.

Optimizing the Performance of a Distillation Fractionating Column

To achieve optimal performance, several strategies can be employed:

Proper Feed Conditioning: Ensuring the feed mixture is at the correct temperature and pressure to maximize separation efficiency.
Reflux Ratio: Adjusting the reflux ratio to balance between energy consumption and separation efficiency.
Tray or Packing Maintenance: Regularly inspecting and maintaining trays or packing to prevent fouling and ensure optimal performance.
Energy Integration: Utilizing heat integration techniques to recover and reuse heat, reducing energy consumption.
Advanced Control Systems: Implementing advanced control systems to monitor and adjust operating parameters in real-time.

By carefully optimizing these factors, the performance of a distillation fractionating column can be significantly enhanced, leading to improved separation efficiency and reduced operating costs.

Challenges and Solutions in Distillation Fractionating Columns

Despite their efficiency, distillation fractionating columns face several challenges:

Fouling: Accumulation of solids or deposits on trays or packing, reducing separation efficiency. Regular cleaning and maintenance can mitigate this issue.
Corrosion: Chemical reactions or environmental factors can cause corrosion, leading to equipment failure. Using corrosion-resistant materials and implementing protective coatings can address this challenge.
Energy Consumption: High energy requirements for heating and cooling. Energy integration and optimization of operating parameters can reduce energy consumption.
Pressure Drop: Excessive pressure drop can reduce efficiency and increase operating costs. Proper design and selection of trays or packing can minimize pressure drop.

Addressing these challenges requires a combination of proper design, regular maintenance, and advanced control strategies.

🔍 Note: Regular monitoring and maintenance are crucial for the long-term performance and reliability of a distillation fractionating column.

Future Trends in Distillation Fractionating Columns

The field of distillation technology is continually evolving, driven by advancements in materials science, process control, and energy efficiency. Some emerging trends include:

Advanced Materials: Development of new materials with enhanced corrosion resistance and thermal stability.
Smart Control Systems: Integration of artificial intelligence and machine learning for real-time optimization and predictive maintenance.
Energy-Efficient Designs: Innovations in heat integration and energy recovery to reduce the environmental impact and operating costs.
Modular Columns: Designing modular columns that can be easily assembled, disassembled, and transported, offering flexibility for various applications.

These trends are poised to revolutionize the way distillation fractionating columns are designed, operated, and maintained, leading to more efficient and sustainable processes.

In conclusion, the distillation fractionating column is a vital component in various industrial processes, enabling the efficient separation of liquid mixtures. Its design, operation, and optimization require careful consideration of numerous factors, from material selection to energy integration. By addressing the challenges and embracing future trends, the performance and sustainability of distillation processes can be significantly enhanced, benefiting industries worldwide.
