The Disk Braking System is a critical component in modern vehicles, ensuring safety and reliability through efficient braking mechanisms. This system has evolved significantly over the years, becoming a standard feature in automobiles due to its superior performance and durability. Understanding the intricacies of the Disk Braking System is essential for both automotive enthusiasts and professionals in the field.
Understanding the Disk Braking System
The Disk Braking System operates on the principle of friction, where a brake pad presses against a rotating disk (or rotor) to slow down or stop the vehicle. This system is preferred over drum brakes due to its enhanced stopping power, better heat dissipation, and reduced maintenance requirements. The primary components of a Disk Braking System include:
- Brake Rotor
- Brake Pads
- Brake Calipers
- Brake Lines
- Brake Fluid

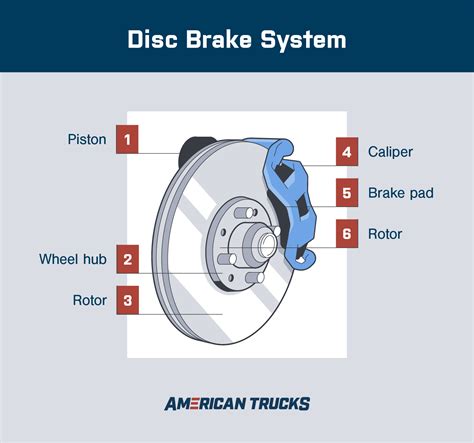

Components of the Disk Braking System
Each component of the Disk Braking System plays a crucial role in ensuring the system's overall efficiency and reliability. Let's delve into the details of each component:
Brake Rotor
The brake rotor is a circular metal disc that rotates with the wheel. When the brake pedal is pressed, the brake pads clamp onto the rotor, creating friction that slows down the vehicle. Rotors are typically made of cast iron or composite materials to withstand high temperatures and wear.
Brake Pads
Brake pads are the friction material that presses against the rotor to create the stopping force. They are designed to withstand high temperatures and provide consistent braking performance. Brake pads are available in various materials, including organic, semi-metallic, and ceramic, each offering different levels of performance and durability.
Brake Calipers
Brake calipers are the mechanism that applies pressure to the brake pads, forcing them against the rotor. They are typically hydraulic and consist of a piston that pushes the pads inward when brake fluid is pressurized. Calipers can be either floating or fixed, with floating calipers moving laterally to apply even pressure on both pads.
Brake Lines
Brake lines are the tubes that carry brake fluid from the master cylinder to the brake calipers. They are designed to withstand high pressure and are usually made of steel or flexible rubber hoses. Proper maintenance of brake lines is essential to prevent leaks and ensure consistent braking performance.
Brake Fluid
Brake fluid is a hydraulic fluid that transfers the force from the brake pedal to the brake calipers. It is crucial for the proper functioning of the Disk Braking System, as it must withstand high temperatures and resist boiling. Regular inspection and replacement of brake fluid are necessary to maintain the system's efficiency.

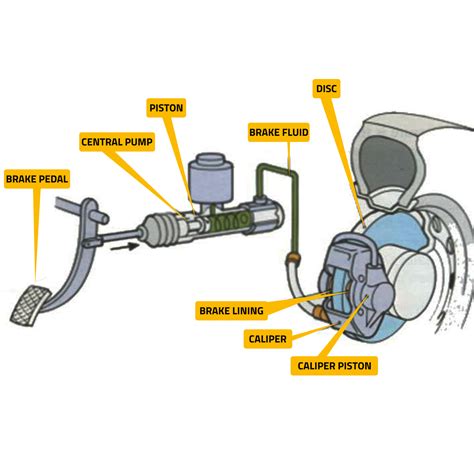

How the Disk Braking System Works
The operation of the Disk Braking System involves several steps, each contributing to the overall braking process. Here’s a detailed explanation of how it works:
- Brake Pedal Activation: When the driver presses the brake pedal, it activates the master cylinder, which pressurizes the brake fluid.
- Fluid Transfer: The pressurized brake fluid travels through the brake lines to the brake calipers.
- Caliper Action: The brake calipers use the hydraulic pressure to push the brake pads against the rotor.
- Friction and Stopping: The friction between the brake pads and the rotor generates heat, which slows down the vehicle.
- Release: When the brake pedal is released, the hydraulic pressure is relieved, and the brake pads retract, allowing the rotor to spin freely again.
🔧 Note: Regular inspection and maintenance of the Disk Braking System are crucial to ensure its optimal performance and safety. This includes checking brake pads for wear, inspecting rotors for warping, and ensuring brake fluid is at the correct level and condition.
Maintenance and Troubleshooting
Proper maintenance of the Disk Braking System is essential for its longevity and reliability. Here are some key maintenance tasks and troubleshooting tips:
Maintenance Tasks
Regular maintenance of the Disk Braking System involves several key tasks:
- Brake Pad Inspection: Check brake pads for wear and replace them when they reach the minimum thickness. Most pads have wear indicators that make a squealing noise when it's time to replace them.
- Rotor Inspection: Inspect rotors for signs of warping, cracking, or excessive wear. Rotors can be resurfaced if they are within acceptable limits.
- Brake Fluid Check: Ensure that the brake fluid level is adequate and that the fluid is not contaminated or degraded. Replace brake fluid every 2-3 years.
- Brake Line Inspection: Check brake lines for leaks, cracks, or corrosion. Replace any damaged lines immediately.
- Caliper Maintenance: Inspect brake calipers for proper functioning and lubricate the sliding components as needed.
Troubleshooting Common Issues
Despite regular maintenance, issues can still arise with the Disk Braking System. Here are some common problems and their potential solutions:
| Issue | Potential Cause | Solution |
|---|---|---|
| Squealing or Grinding Noises | Worn brake pads or contaminated rotors | Replace brake pads and resurface or replace rotors if necessary |
| Spongy Brake Pedal | Air in the brake lines or contaminated brake fluid | Bleed the brake system and replace brake fluid |
| Pulling to One Side | Stuck caliper or uneven brake pad wear | Inspect and replace or repair the caliper, and replace brake pads if necessary |
| Vibration During Braking | Warped rotors or uneven brake pad wear | Resurface or replace rotors and replace brake pads |
🛠️ Note: If you encounter any issues with your Disk Braking System that you are unsure how to fix, it is always best to consult a professional mechanic to avoid further damage or safety risks.
Advancements in Disk Braking Technology
The Disk Braking System has seen significant advancements over the years, driven by the need for improved performance, safety, and efficiency. Some of the latest developments include:
Ceramic Brake Pads
Ceramic brake pads offer superior performance and durability compared to traditional organic or semi-metallic pads. They provide better heat dissipation, reduced brake dust, and longer lifespan, making them a popular choice for high-performance vehicles.
Ventilated Rotors
Ventilated rotors feature internal vanes that help dissipate heat more efficiently, reducing the risk of brake fade and improving overall braking performance. These rotors are commonly used in high-performance and heavy-duty applications.
Electronic Brake Force Distribution (EBD)
EBD systems use sensors and electronic controls to distribute braking force more evenly between the front and rear wheels, enhancing stability and control during braking. This technology is particularly beneficial in vehicles with different load distributions, such as SUVs and trucks.
Anti-Lock Braking System (ABS)
ABS is a safety feature that prevents the wheels from locking up during hard braking, allowing the driver to maintain steering control. It works by rapidly pulsing the brakes to prevent skidding, significantly improving safety in emergency situations.
Conclusion
The Disk Braking System is a vital component of modern vehicles, ensuring safe and reliable braking performance. Understanding its components, how it works, and the importance of regular maintenance is crucial for both automotive enthusiasts and professionals. By staying informed about the latest advancements in Disk Braking System technology, you can ensure that your vehicle remains safe and efficient on the road. Regular inspections and timely repairs will help maintain the system’s optimal performance, providing peace of mind and enhancing overall driving experience.
