The Dirac Impulse Function, also known as the Dirac delta function, is a mathematical concept that plays a crucial role in various fields of science and engineering. It was introduced by the physicist Paul Dirac in his work on quantum mechanics. The Dirac Impulse Function is a generalized function or distribution that is zero everywhere except at zero, where it is infinite, and its integral over the entire real line is equal to one. This unique property makes it an invaluable tool in signal processing, control theory, and differential equations.
The Mathematical Definition of the Dirac Impulse Function
The Dirac Impulse Function, denoted as δ(t), is defined by the following properties:
- δ(t) = 0 for all t ≠ 0
- δ(t) is infinite at t = 0
- The integral of δ(t) over the entire real line is 1: ∫(-∞ to ∞) δ(t) dt = 1
These properties can be summarized in the following equation:
📝 Note: The Dirac Impulse Function is not a function in the traditional sense but rather a distribution. It is often represented as a limit of a sequence of functions.
Applications of the Dirac Impulse Function
The Dirac Impulse Function has wide-ranging applications in various fields. Some of the key areas where it is extensively used include:
Signal Processing
In signal processing, the Dirac Impulse Function is used to model instantaneous events or signals. For example, it can represent a brief, intense signal that occurs at a specific time. The convolution of a signal with the Dirac Impulse Function is the signal itself, which is a fundamental property used in filtering and signal analysis.
Control Theory
In control theory, the Dirac Impulse Function is used to analyze the response of a system to an instantaneous input. The impulse response of a system is its output when the input is a Dirac Impulse Function. This response is crucial for understanding the dynamics of the system and designing controllers.
Differential Equations
The Dirac Impulse Function is also used in solving differential equations, particularly in the context of initial value problems and boundary value problems. It allows for the representation of discontinuous or impulsive forces acting on a system, making it easier to solve complex equations.
Quantum Mechanics
In quantum mechanics, the Dirac Impulse Function is used to describe the probability density of a particle’s position. It represents a particle that is localized at a specific point in space. This concept is fundamental in understanding the behavior of particles at the quantum level.
Properties of the Dirac Impulse Function
The Dirac Impulse Function has several important properties that make it a powerful tool in mathematics and physics. Some of these properties include:
Scaling Property
The scaling property of the Dirac Impulse Function states that:
δ(at) = (1/|a|) δ(t) for any non-zero constant a.
This property is useful in transforming and scaling signals in signal processing.
Translation Property
The translation property states that:
δ(t - t0) = δ(t) shifted by t0.
This property is used to represent delayed or shifted signals.
Convolution Property
The convolution of a function f(t) with the Dirac Impulse Function δ(t) is the function itself:
f(t) * δ(t) = f(t).
This property is fundamental in signal processing and control theory.
Examples of the Dirac Impulse Function
To better understand the Dirac Impulse Function, let’s consider a few examples:
Example 1: Instantaneous Signal
Consider a signal that is zero everywhere except at t = 0, where it is infinite. This signal can be represented by the Dirac Impulse Function δ(t). The integral of this signal over the entire real line is 1, satisfying the properties of the Dirac Impulse Function.
Example 2: Impulse Response of a System
Consider a system with an impulse response h(t). If the input to the system is a Dirac Impulse Function δ(t), the output of the system is h(t). This property is used to analyze the dynamics of the system and design controllers.
Example 3: Solving Differential Equations
Consider the differential equation:
y”(t) + 3y’(t) + 2y(t) = δ(t).
This equation represents a system subjected to an impulsive force at t = 0. The solution to this equation can be found using the Laplace transform and the properties of the Dirac Impulse Function.

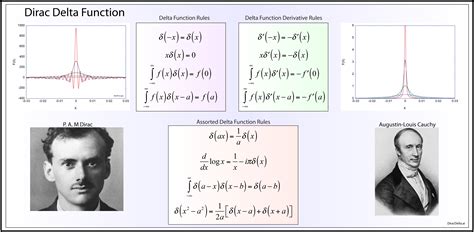

Visual Representation of the Dirac Impulse Function
While the Dirac Impulse Function is not a traditional function, it can be visualized using a sequence of functions that approximate it. One common approximation is the Gaussian function:
g_n(t) = (n/π)^(1⁄2) exp(-nt^2).
As n approaches infinity, g_n(t) approaches the Dirac Impulse Function δ(t).
Challenges and Limitations
Despite its usefulness, the Dirac Impulse Function has some challenges and limitations. One of the main challenges is its non-standard nature as a distribution rather than a function. This can make it difficult to work with in some contexts. Additionally, the Dirac Impulse Function is not differentiable in the traditional sense, which can limit its applicability in certain areas of mathematics and physics.
Another limitation is that the Dirac Impulse Function is not physically realizable. In practical applications, signals and forces are always continuous and cannot be truly instantaneous. Therefore, the Dirac Impulse Function is often used as an idealization or approximation.
Finally, the Dirac Impulse Function can lead to mathematical inconsistencies if not handled carefully. For example, the product of two Dirac Impulse Functions is not well-defined and can lead to paradoxes. Therefore, it is important to use the Dirac Impulse Function with caution and to understand its properties and limitations.
In summary, the Dirac Impulse Function is a powerful tool in mathematics and physics, with wide-ranging applications in signal processing, control theory, differential equations, and quantum mechanics. Its unique properties make it invaluable for modeling instantaneous events and analyzing system dynamics. However, it is important to understand its challenges and limitations and to use it carefully in practical applications.
