Dimmer Switch Wiring

By Ashley

January 20, 2026

3 min read

Save

Dimmer Switch Wiring

Dimmer switch wiring can transform the ambiance of any room by allowing you to adjust the brightness of your lights. Whether you're looking to create a cozy atmosphere or need task lighting for specific activities, understanding how to wire a dimmer switch is a valuable skill. This guide will walk you through the process of installing a dimmer switch, from selecting the right components to completing the wiring.

Understanding Dimmer Switches

Before diving into the installation process, it’s essential to understand what a dimmer switch is and how it works. A dimmer switch is an electrical device that allows you to control the brightness of a light fixture. It works by reducing the voltage supplied to the light, thereby lowering its brightness. There are different types of dimmer switches available, including single-pole, three-way, and smart dimmers. Each type has its own wiring requirements, so it’s crucial to choose the right one for your needs.

Types of Dimmer Switches

There are several types of dimmer switches, each designed for specific applications. Here are the most common types:

Single-Pole Dimmer Switch: This is the most basic type of dimmer switch, designed for use with a single light fixture controlled by one switch.
Three-Way Dimmer Switch: This type is used when a light fixture is controlled by two switches, typically found in stairways or hallways.
Smart Dimmer Switch: These modern dimmers can be controlled via a smartphone app or voice commands, offering advanced features like scheduling and integration with smart home systems.

Tools and Materials Needed

Before you begin the dimmer switch wiring process, gather the necessary tools and materials. Here’s a list of what you’ll need:

Dimmer switch (appropriate for your light fixture and wiring setup)
Screwdriver (flathead and Phillips)
Wire stripper
Wire nuts
Voltage tester
Needle-nose pliers
Safety glasses

Safety Precautions

Working with electrical components can be dangerous if proper precautions are not taken. Always follow these safety guidelines:

Turn off the power to the circuit you will be working on at the main electrical panel.
Use a voltage tester to ensure the power is off before handling any wires.
Wear safety glasses to protect your eyes from debris.
Avoid working in damp or wet conditions.

Step-by-Step Guide to Dimmer Switch Wiring

Now that you have the necessary tools and materials, let’s proceed with the dimmer switch wiring process. Follow these steps carefully:

Step 1: Turn Off the Power

Before you begin, turn off the power to the circuit at the main electrical panel. This is a crucial step to ensure your safety.

Step 2: Remove the Old Switch

Remove the faceplate of the existing switch and unscrew the switch from the wall. Pull the switch out of the wall box and use a voltage tester to confirm that the power is off.

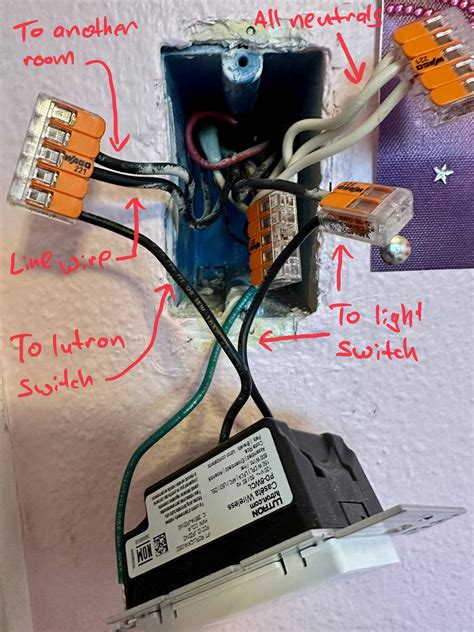

Step 3: Identify the Wires

Identify the wires connected to the old switch. Typically, you will find a black (hot) wire, a white (neutral) wire, and a ground wire. Some setups may also include a red wire for three-way switches.

Step 4: Prepare the New Dimmer Switch

Prepare the new dimmer switch by removing any packaging and familiarizing yourself with the wiring diagram provided with the switch. Most dimmer switches have clearly labeled terminals for easy identification.

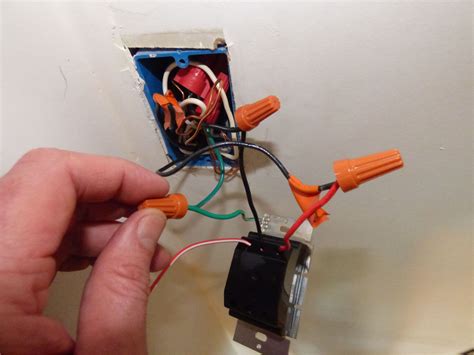

Step 5: Connect the Wires

Connect the wires to the new dimmer switch according to the wiring diagram. Here is a general guide:

Connect the black (hot) wire to the black terminal on the dimmer switch.
Connect the white (neutral) wire to the white terminal on the dimmer switch.
Connect the ground wire to the green terminal on the dimmer switch.
If you have a red wire (for three-way switches), connect it to the red terminal on the dimmer switch.

Step 6: Secure the Wires

Use wire nuts to secure the connections and ensure they are tight. Tuck the wires back into the wall box and gently push the dimmer switch into place.

Step 7: Attach the Faceplate

Attach the faceplate to the dimmer switch and secure it with the provided screws.

Step 8: Turn On the Power

Turn the power back on at the main electrical panel and test the dimmer switch to ensure it is working correctly.

🔧 Note: If the dimmer switch does not work, double-check all wire connections and ensure the power is turned on.

Troubleshooting Common Issues

Even with careful installation, you may encounter some issues with your dimmer switch. Here are some common problems and their solutions:

Dimmer Switch Not Working

If the dimmer switch does not work at all, check the following:

Ensure the power is turned on at the main electrical panel.
Verify that all wire connections are secure and correctly attached.
Check for any loose or damaged wires.

Dimmer Switch Flickering

If the dimmer switch causes the lights to flicker, it may be due to:

Incompatible light bulbs (use dimmable bulbs).
Loose wire connections.
Faulty dimmer switch (try replacing it).

Dimmer Switch Making Noise

If the dimmer switch makes a buzzing or humming noise, it could be due to:

Incompatible light bulbs (use dimmable bulbs).
Loose wire connections.
Faulty dimmer switch (try replacing it).

Advanced Dimmer Switch Wiring

For those looking to enhance their lighting control, advanced dimmer switches offer additional features. These include smart dimmers that can be controlled via a smartphone app or integrated with smart home systems. Here are some advanced dimmer switch wiring considerations:

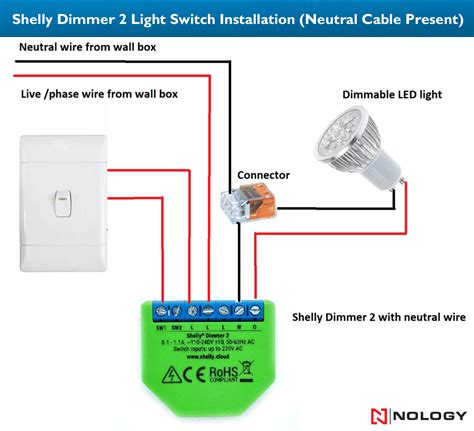

Smart Dimmer Switches

Smart dimmer switches offer advanced features like scheduling, voice control, and integration with other smart home devices. When installing a smart dimmer switch, follow these additional steps:

Download the manufacturer’s app on your smartphone.
Follow the app’s instructions to connect the dimmer switch to your Wi-Fi network.
Configure the dimmer switch settings according to your preferences.

Three-Way Dimmer Switches

Three-way dimmer switches are used when a light fixture is controlled by two switches. This setup requires a three-way dimmer switch and a standard three-way switch. Here are the steps for wiring a three-way dimmer switch:

Identify the common wire (usually black) and the traveler wires (usually red and black).
Connect the common wire to the black terminal on the dimmer switch.
Connect the traveler wires to the red and black terminals on the dimmer switch.
Connect the ground wire to the green terminal on the dimmer switch.

🔧 Note: Ensure that the traveler wires are correctly identified and connected to avoid malfunctions.

Conclusion

Dimmer switch wiring is a valuable skill that can enhance the ambiance and functionality of your lighting. By following the steps outlined in this guide, you can successfully install a dimmer switch and enjoy the benefits of adjustable lighting. Whether you choose a basic single-pole dimmer or an advanced smart dimmer, understanding the wiring process is key to a successful installation. Always prioritize safety and double-check your connections to ensure a reliable and efficient lighting system.
