In the realm of electronics and signal processing, the Digital Analog Converter (DAC) plays a pivotal role in bridging the gap between the digital and analog worlds. This device is essential for converting digital signals into analog signals, enabling a wide range of applications from audio playback to telecommunications. Understanding the fundamentals of DACs, their types, and their applications can provide valuable insights into modern technology.
Understanding Digital Analog Converters
A Digital Analog Converter is an electronic component that transforms digital data into an analog signal. This process is crucial in various applications where digital data needs to be converted into a continuous signal that can be processed by analog systems. The conversion process involves several steps, including sampling, quantization, and reconstruction.
Sampling is the process of taking discrete samples of an analog signal at regular intervals. Quantization involves converting these samples into digital values, which are then stored or transmitted. Finally, the DAC reconstructs the analog signal from these digital values, producing a continuous waveform.
Types of Digital Analog Converters
There are several types of Digital Analog Converters, each with its own advantages and disadvantages. The choice of DAC depends on the specific requirements of the application, including resolution, speed, and power consumption.
Weighted Resistor DAC
The weighted resistor DAC is one of the simplest types of DACs. It uses a network of resistors with values that are weighted according to the binary values of the input digital signal. The output voltage is a sum of the currents flowing through these resistors, which is proportional to the digital input.
This type of DAC is easy to implement but has limitations in terms of resolution and accuracy. It is typically used in applications where high precision is not required.
R-2R Ladder DAC
The R-2R ladder DAC is a more sophisticated type of DAC that uses a ladder network of resistors with values of R and 2R. This configuration allows for higher resolution and better accuracy compared to the weighted resistor DAC. The R-2R ladder DAC is commonly used in audio applications and other high-precision systems.
One of the key advantages of the R-2R ladder DAC is its ability to achieve high resolution with a relatively simple circuit design. However, it can be more complex to implement compared to the weighted resistor DAC.
Pulse Width Modulation (PWM) DAC
The PWM DAC uses pulse width modulation to convert digital signals into analog signals. In this type of DAC, the digital input is represented as a series of pulses with varying widths. The average value of these pulses is proportional to the analog output.
PWM DACs are commonly used in motor control, lighting, and other applications where high-speed conversion is required. They are known for their simplicity and efficiency but may suffer from noise and distortion in some applications.
Sigma-Delta DAC
The sigma-delta DAC is a type of oversampling DAC that uses a sigma-delta modulator to convert digital signals into analog signals. This type of DAC achieves high resolution and low noise by oversampling the input signal and using a noise-shaping technique to push quantization noise out of the signal band.
Sigma-delta DACs are widely used in audio applications, such as in digital-to-analog converters for high-fidelity audio playback. They offer excellent performance in terms of resolution and noise but can be more complex and power-hungry compared to other types of DACs.
Applications of Digital Analog Converters
Digital Analog Converters are used in a wide range of applications, from consumer electronics to industrial systems. Some of the most common applications include:

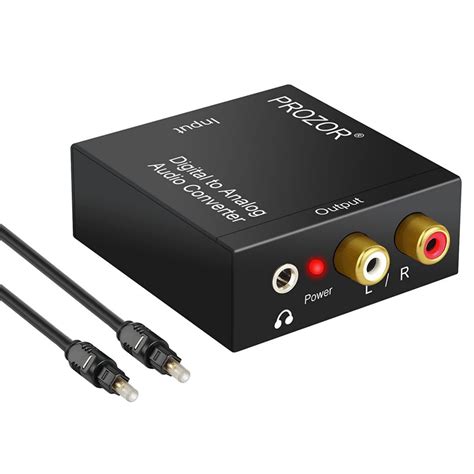

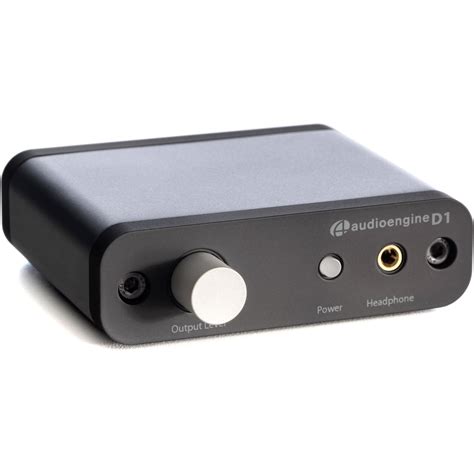

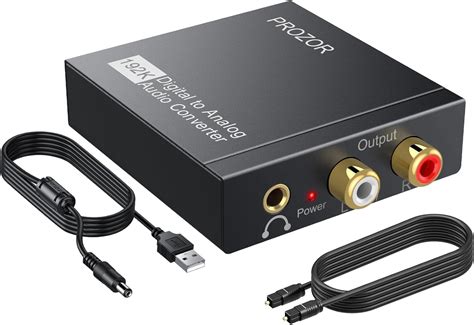

- Audio Playback: DACs are essential in digital audio players, such as MP3 players and smartphones, where digital audio data is converted into analog signals for playback through speakers or headphones.
- Telecommunications: In telecommunications, DACs are used to convert digital data into analog signals for transmission over analog communication channels.
- Instrumentation: DACs are used in measurement and control systems to generate analog signals for calibration and testing purposes.
- Motor Control: In motor control applications, DACs are used to generate analog control signals for adjusting the speed and direction of motors.
- Lighting Control: DACs are used in lighting systems to control the brightness and color of LED lights by generating analog signals that adjust the power supplied to the LEDs.
Key Parameters of Digital Analog Converters
When selecting a Digital Analog Converter for a specific application, several key parameters need to be considered. These parameters include resolution, sampling rate, settling time, and total harmonic distortion (THD).
Resolution refers to the number of discrete levels that the DAC can produce. Higher resolution means more accurate representation of the analog signal. Sampling rate is the frequency at which the DAC samples the digital input. A higher sampling rate allows for more accurate reconstruction of the analog signal.
Settling time is the time it takes for the DAC to reach and stabilize at the desired output level after a change in the digital input. Total harmonic distortion (THD) is a measure of the distortion introduced by the DAC, which can affect the quality of the analog output.
Here is a table summarizing the key parameters of different types of DACs:
| Parameter | Weighted Resistor DAC | R-2R Ladder DAC | PWM DAC | Sigma-Delta DAC |
|---|---|---|---|---|
| Resolution | Low to Medium | Medium to High | Low to Medium | High |
| Sampling Rate | Low to Medium | Medium to High | High | High |
| Settling Time | Fast | Medium | Fast | Slow |
| Total Harmonic Distortion (THD) | High | Medium | Medium | Low |
📝 Note: The choice of DAC depends on the specific requirements of the application, including resolution, speed, and power consumption.
Design Considerations for Digital Analog Converters
Designing a Digital Analog Converter involves several considerations to ensure optimal performance. These considerations include the choice of components, circuit layout, and power supply design.
Choosing the right components is crucial for achieving the desired performance. High-quality resistors, capacitors, and operational amplifiers should be used to minimize distortion and noise. The circuit layout should be designed to minimize parasitic effects and ensure proper signal integrity.
The power supply design is also important, as it affects the stability and accuracy of the DAC. A stable and low-noise power supply is essential for achieving high performance. Additionally, proper grounding and shielding techniques should be employed to minimize electromagnetic interference (EMI) and radio frequency interference (RFI).
Here are some key design considerations for Digital Analog Converters:
- Component Selection: Choose high-quality components to minimize distortion and noise.
- Circuit Layout: Design the circuit layout to minimize parasitic effects and ensure proper signal integrity.
- Power Supply Design: Use a stable and low-noise power supply to achieve high performance.
- Grounding and Shielding: Employ proper grounding and shielding techniques to minimize EMI and RFI.
📝 Note: Proper design considerations are essential for achieving optimal performance in Digital Analog Converters.
Future Trends in Digital Analog Converters
The field of Digital Analog Converters is continually evolving, driven by advancements in technology and increasing demand for high-performance systems. Some of the future trends in DACs include:
- Higher Resolution: As digital systems become more sophisticated, there is a growing demand for DACs with higher resolution to achieve more accurate analog outputs.
- Faster Sampling Rates: Faster sampling rates are required to support high-speed data transmission and processing in modern applications.
- Lower Power Consumption: With the increasing use of portable and battery-powered devices, there is a need for DACs that consume less power while maintaining high performance.
- Integration with Digital Signal Processing (DSP): Integration of DACs with DSP technologies allows for more advanced signal processing capabilities, enabling applications such as real-time audio processing and adaptive filtering.
These trends are shaping the future of Digital Analog Converters, making them more efficient, accurate, and versatile for a wide range of applications.
As technology continues to advance, the role of Digital Analog Converters will become even more critical in bridging the gap between the digital and analog worlds. Understanding the fundamentals, types, and applications of DACs is essential for anyone involved in electronics and signal processing.
In conclusion, Digital Analog Converters are indispensable components in modern technology, enabling the conversion of digital signals into analog signals for various applications. From audio playback to telecommunications, DACs play a crucial role in ensuring accurate and reliable signal processing. By understanding the different types of DACs, their key parameters, and design considerations, one can make informed decisions when selecting and implementing DACs in various systems. As technology continues to evolve, the future of Digital Analog Converters looks promising, with advancements in resolution, sampling rates, and integration with DSP technologies paving the way for even more innovative applications.
