Differential Op Amp

Differential op amps are a fundamental component in analog electronics, widely used for their ability to amplify the difference between two input voltages while rejecting common-mode signals. This makes them indispensable in various applications, from signal conditioning to instrumentation and control systems. Understanding the principles and applications of differential op amps is crucial for anyone working in the field of electronics.

Table of Contents

Understanding Differential Op Amps

A differential op amp, short for differential operational amplifier, is designed to amplify the difference between two input signals. This is achieved by having two input terminals: the inverting input (-) and the non-inverting input (+). The output voltage is proportional to the difference between these two inputs, scaled by the amplifier's gain.

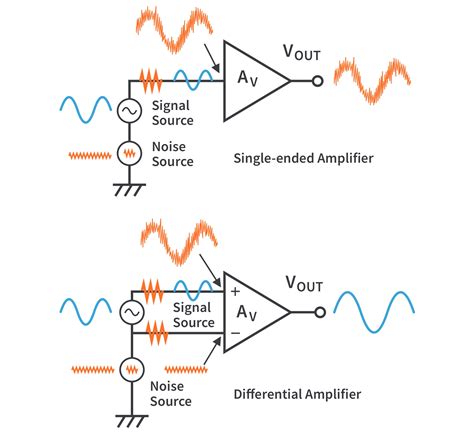

The key advantage of a differential op amp is its ability to reject common-mode signals. Common-mode signals are those that appear simultaneously and equally at both inputs. By amplifying only the difference between the inputs, the op amp can effectively filter out noise and interference that are common to both signals.

Basic Configuration and Operation

The basic configuration of a differential op amp involves connecting the input signals to the inverting and non-inverting inputs. The output is then taken from the output terminal. The gain of the amplifier is determined by the feedback network, which typically consists of resistors.

One common configuration is the differential amplifier with a single-ended output. In this setup, the output is referenced to ground, making it easier to interface with other circuits. The gain of the amplifier can be calculated using the formula:

V_out = A_d (V₊ - V_-)

where A_d is the differential gain, V₊ is the voltage at the non-inverting input, and V_- is the voltage at the inverting input.

Applications of Differential Op Amps

Differential op amps are used in a wide range of applications due to their ability to amplify small differential signals while rejecting common-mode noise. Some of the most common applications include:

Signal Conditioning: Differential op amps are often used to condition signals from sensors and transducers. They can amplify weak signals and filter out noise, making them suitable for applications in measurement and control systems.
Instrumentation Amplifiers: These amplifiers are designed to amplify small differential signals with high precision. They are commonly used in medical equipment, industrial instrumentation, and data acquisition systems.
Audio Amplifiers: In audio applications, differential op amps are used to amplify the difference between two audio signals, such as in balanced audio systems. This helps to reduce noise and improve signal quality.
Communication Systems: Differential op amps are used in communication systems to amplify differential signals transmitted over long distances. They help to maintain signal integrity and reduce the effects of interference.

Design Considerations

When designing circuits with differential op amps, several factors need to be considered to ensure optimal performance. These include:

Input Impedance: The input impedance of the op amp should be high to minimize loading effects on the input signals. This is particularly important in high-impedance applications.
Output Impedance: The output impedance should be low to ensure that the amplifier can drive the load effectively. This is crucial for maintaining signal integrity and minimizing distortion.
Common-Mode Rejection Ratio (CMRR): The CMRR is a measure of the op amp's ability to reject common-mode signals. A high CMRR is desirable for applications where noise and interference are a concern.
Gain and Bandwidth: The gain and bandwidth of the op amp should be chosen based on the specific requirements of the application. Higher gain and bandwidth can improve performance but may also increase noise and power consumption.

Additionally, the choice of feedback network is critical in determining the gain and stability of the amplifier. Resistors are commonly used in the feedback network to set the gain, but other components such as capacitors can be used to control the frequency response.

Common Configurations

Differential op amps can be configured in various ways to suit different applications. Some of the most common configurations include:

Differential Amplifier with Single-Ended Output: In this configuration, the output is referenced to ground, making it easier to interface with other circuits. The gain is determined by the feedback network.
Differential Amplifier with Differential Output: This configuration provides two outputs, one inverted and one non-inverted. It is useful in applications where differential signals are required, such as in balanced audio systems.
Instrumentation Amplifier: This configuration uses three op amps to provide high precision and low noise amplification. It is commonly used in medical and industrial applications.

Each configuration has its own advantages and disadvantages, and the choice depends on the specific requirements of the application.

Example Circuit

Let's consider an example circuit of a differential op amp with a single-ended output. The circuit diagram is shown below:

In this circuit, the input signals V₁ and V₂ are applied to the non-inverting and inverting inputs of the op amp, respectively. The feedback resistor R_f and the input resistor R_in determine the gain of the amplifier. The output voltage V_out is given by:

V_out = (R_f / R_in) (V₁ - V₂)

This configuration provides a high input impedance and a low output impedance, making it suitable for a wide range of applications.

💡 Note: Ensure that the feedback network is properly designed to avoid instability and oscillation. The values of the resistors should be chosen based on the required gain and the characteristics of the op amp.

Advanced Topics

For more advanced applications, differential op amps can be used in combination with other components to achieve specific performance characteristics. Some advanced topics include:

Active Filters: Differential op amps can be used to design active filters that provide precise control over the frequency response. These filters can be used to remove unwanted frequencies from the input signals.
Oscillators: Differential op amps can be configured as oscillators to generate sinusoidal or square wave signals. These oscillators are useful in communication systems and signal generation applications.
Comparators: By configuring the op amp as a comparator, it can be used to compare two input signals and generate a digital output. This is useful in control systems and digital signal processing applications.

These advanced topics require a deeper understanding of op amp theory and circuit design principles. However, they offer powerful tools for designing complex electronic systems.

Troubleshooting Differential Op Amps

When working with differential op amps, it is important to be able to troubleshoot common issues that may arise. Some common problems and their solutions include:

High Output Noise: If the output signal is noisy, check the power supply and ground connections. Ensure that the power supply is stable and that the ground connections are properly made.
Low Gain: If the gain is lower than expected, check the feedback network. Ensure that the resistors are correctly connected and that their values are as specified.
Oscillation: If the output signal is oscillating, check the feedback network and the input signals. Ensure that the feedback network is properly designed to avoid instability.

By following these troubleshooting steps, you can identify and resolve common issues with differential op amps.

💡 Note: Always use high-quality components and follow proper circuit design practices to minimize the risk of issues. Regularly test and calibrate your circuits to ensure optimal performance.

Differential op amps are versatile and powerful components that play a crucial role in modern electronics. By understanding their principles, applications, and design considerations, you can effectively use them in a wide range of electronic systems. Whether you are designing signal conditioning circuits, instrumentation amplifiers, or communication systems, differential op amps offer the performance and flexibility needed to achieve your goals.
